Summary of Contents for Aketek PRO-X

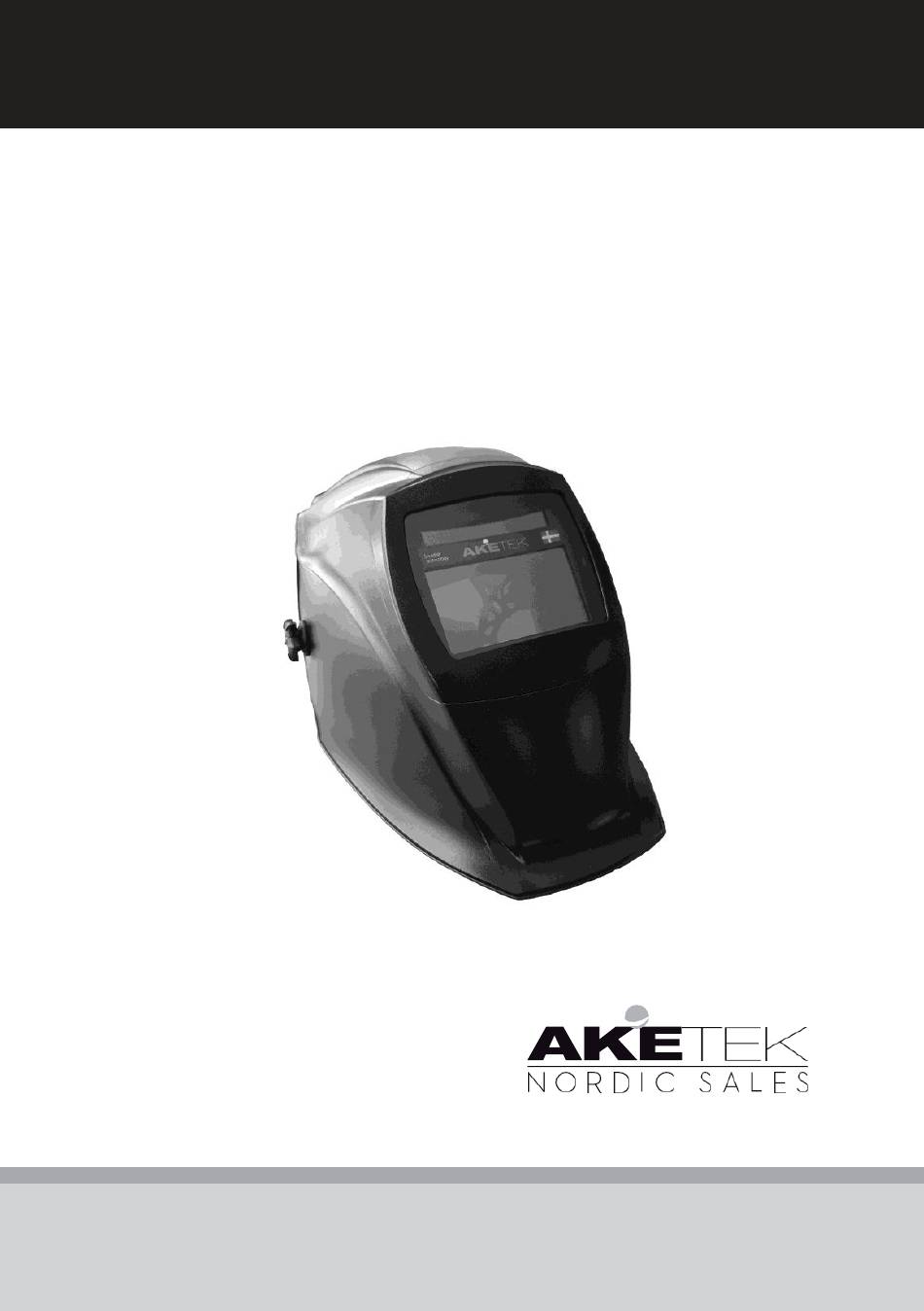

- Page 1 Operation instructions: Aketek PRO-X Created: January/2016 Updated: April/2023 Aketek PRO-X welding helmet Installation, operation and maintenance instructions...
- Page 2 0,0001 sec. The electronic is extremely low power and the in-built battery, supported by a solar cell, has a long life time. At all Aketek welding helmets switching to grinding mode is possible.
-
Page 3: Table Of Contents
Innehåll Information ................... 4 Areas of applications ..............4 Preparations before use: .............. 5 In use ....................6 Maintenance and cleaning ............6 Storage and transport ..............7 Installation and replacement of parts ........8 Spare parts ................... 10 Warranty ..................10 10.0 Please note the following ............ -
Page 4: Information
These operating instructions must not be removed from the product, except by the user of the welding helmet. The operating instructions must always be available to a new user. If you don’t have the operating instructions, they can be downloaded at www.aketek.se. Areas of applications The welding helmet together with the automatically darkening welding filter and protection plates should only be used for electric arc welding and plasma welding. -
Page 5: Preparations Before Use
Ampere Covered electrodes MIG (steel) MIG (light metal leg.) TIG (WIG) Plasma welding Plasma cutting Preparations before use: Make sure that the welding helmet is suitable for the welding to be performed. Check that the welding filter cassette and both inner and outer protection plates are clean and not cracked or scratched. -
Page 6: In Use
The outer and inner protection plates must be replaced if they become scratched or damaged in any way that impairs the view. The protection plates from Aketek are made of polycarbonate plastic (PC) with a scratch-resistant surface coating. If protection plates are not used, the welding filter cassette will be damaged by weld spatter and the warranty will be invalidated. -
Page 7: Storage And Transport
Other parts of the welding helmet can be cleaned with a cleaning cloth moistened in water with a little detergent and dried with a clean cloth. See recommended maintenance list below. You can also download the recommended maintenance list from www.aketek.se. Product Control... -
Page 8: Installation And Replacement Of Parts
Installation and replacement of parts If the Aketek automatic welding filter cassette, a protection plate or grinding visor needs to be replaced, follow the instructions below. Note that the welding filter cassette protects against UV/IR radiation and is in the light state before welding and in the dark state during welding. - Page 9 Replacing the welding filter cassette 7.4.1 The cassette with the welding filter is held by four screws that you reach from the front when the outer protection plate is removed. 7.4.2 Remove the screws and press the cassette inwards. 7.4.3 Normally you do not need to replace the welding filter cassette. Replacing the headband 7.5.1 Release the headband from the helmet by pressing the button on the upper side of the bracket, both on the right and left sides of the helmet.
-
Page 10: Spare Parts
A warranty form can be downloaded from www.aketek.se. If a defect is found to be covered by the warranty, the product must be returned to Aketek Nordic Sales AB. Aketek Nordic Sales AB is not responsible for indirect damages or consequential damages that arise through the use of the product. - Page 11 be higher than +55 °C, keep distance between welding helmet and welding arc. If the welding helmet does not work for MIG welding, which is the easiest to detect, it means that there is a malfunction of the welding filter cassette and it then needs to be replaced. 10.4 The welding helmet is intended to withstand normal heat generated during the welding process.
-
Page 12: Marking
CE logo CE Notified Bodies. No. 0530: Certottica SCARL, Zona Industriale Villanova, 32013 Longarone, BL, Italy No. 0196 DIN CERTCO, Alboinstrasse 56, 12103 Berlin, Germany. Aketek, march 2013. Manufacturer: Aketek Industries AB, Falun, Sweden. General agent: Aketek Nordic Sales AB, www.aketek.se.
