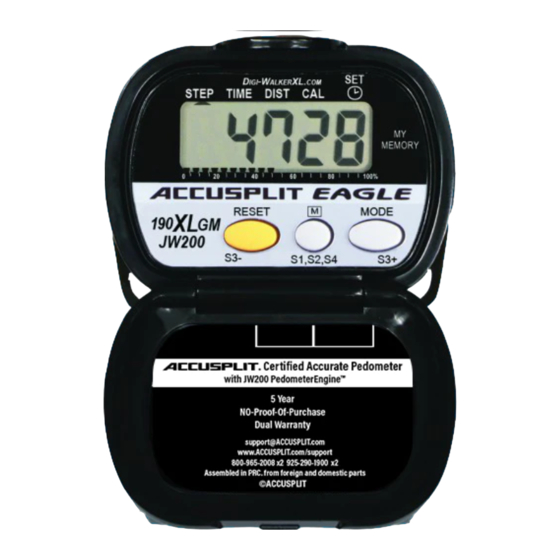

Accusplit EAGLE AE190XLGM Operating Instructions

FRONT FRONT
CERTIFIED ACCURATE PEDOMETER
Featuring Trip & Total Memories for Steps,
Activity Time, Distance and Calories.
Operating Instructions
Congratulations on taking the first step to wellness
with your purchase of an ACCUSPLIT
Just put the pedometer on and start walking!
3rd fold
800-935-1996 • 925-290-1900 • FAX 925-290-1930
www.ACCUSPLIT.com • support@ACCUSPLIT.com
HOW TO OPEN YOUR
PEDOMETER
The cover must be closed
for the pedometer to work.
VIEWING YOUR RESULTS
Once you put on your pedometer with the cover closed,
it will automatically begin to record your steps and other
activity results.
Press the MODE button to cycle through the display modes:
• STEP: shows step count.
• TIMER: AUTO ACTIVITY TIMER shows cumulative activity time.
• DISTANCE: shows computed distance.
• CALORIES: shows computed calories.
• TIME: shows time of day.
All (but TIME) of the above also display progress towards user-
defined goal as 5% bars across the bottom of the display.
Your pedometer is preset with standardized settings that allow you to use it now! You can customize the settings later.
AE190XLGM
Certified Accurate Pedometer.
®
, Inc.
ACCUSPLIT
7901 Stoneridge Drive, Suite 350
Pleasanton, CA 94588
WEARING YOUR PEDOMETER
Gently slide the pedometer onto your belt or the
top edge of your pants or skirt. It should fit snugly
and level, above one knee, nearest to a hip bone.
The strong steel clip makes it easy.
Note: The pedometer should be as vertical as possible. Walkers with larger stomachs
may find it helpful to wear the pedometer farther back on the body, toward one hip.
ACTIVATING THE BATTERY PROPERLY
To properly activate the battery system
1) remove any plastic tab "interrupting" the battery, if that has not been done, then
2) perform a "3-button POWER RESET" by using the 3-button side of the enclosed, plastic
tool or your fingers to simultaneously Push and Hold all 3 buttons until the display goes
blank, then release. All segments will be displayed for a second and then "0".
148 mm x 210 mm 148 mm x 210 mm
2ndfold
FUNCTIONS
• STEP Counter to 99,999 then rollover.
• GOAL Tracking (defaults to 3500 steps, settable from
0=OFF to 99,990 steps, in 100 step increments).
• Automatic Activity Timer for Step Activity, up
to 999 Min 59 sec, then rollover.
• GOAL Tracking (defaults to 30 minutes, settable from
0=OFF to 999 min, in 1 minute increments).
• DISTANCE to 999.99 mi or km, then rollover.
• CALORIES to 9999.9 kcal, then rollover.
• Adjustable Step Filter (defaults to 1 step, settable from
0-5 steps) to increase step count accuracy.
• TRIP & TOTAL MEMORIES stores results and are
independently resettable, TOTAL STEPs to 10 million
and TOTAL TIME to 100,000 Hours, TOTAL DISTANCE
to 100,000 mi/km and TOTAL CALORIES 100,000 kcal.
• GOAL Tracking shown as % of Goal in 5% increments
by bars at the bottom of the display.
• Clock
FEATURES
• Built around the Kato-designed JW200 PedometerEngine™
Step Sensor, the current gold standard for accuracy.
• Extra Large Digits.
• The ACCUSPLIT exclusive case makes this the slimmest
available pedometer built around the JW200 Step Sensor.
• Chromed, Spring Steel clip resists breakage.
• Case includes two leash slots, for attaching
safety leash on either side.
• Made from tough polycarbonate plastic.
INST REV D 190
060113
RESETTING YOUR RESULTS
Resetting all TRIP Memories
Most people prefer to reset counts daily. To reset your
regular counts (Trip Memories): From any function mode,
press and hold the yellow RESET button for at least
2 seconds. You'll see the values all go back to zero. The
TOTAL memories are not changed.
Resetting all TOTAL and TRIP Memories
To reset your TOTAL Memories (which always resets
TRIP Memories), press
Recall Mode. Then, Press and hold the yellow RESET
button for at least 2 seconds to clear ALL TOTAL and
TRIP memories.
yes
no
button for Total Memory
1st fold
