Summary of Contents for Evnex E2

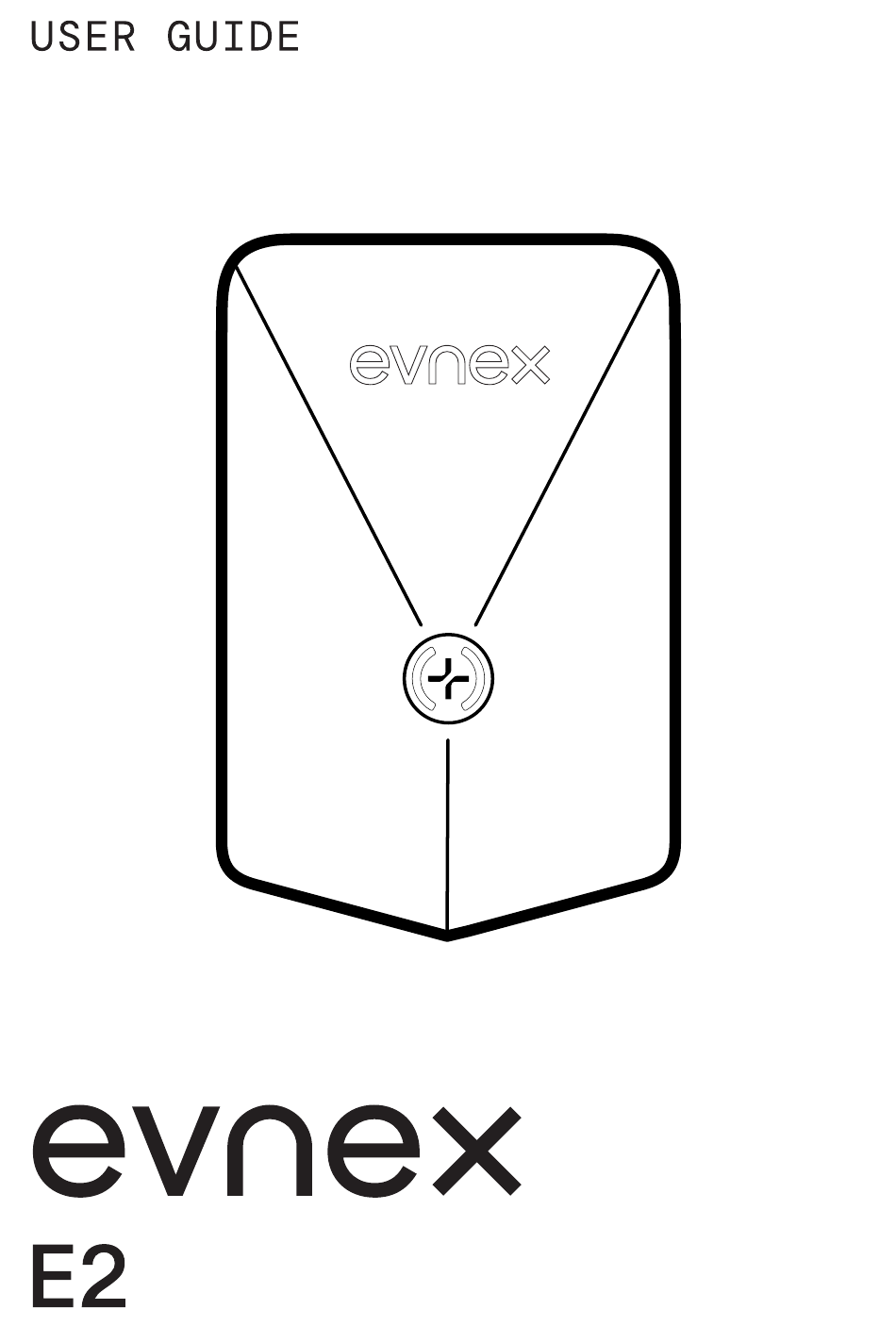

- Page 1 7.4 kW Smart EV Charger...
- Page 2 EV charger or visit docs.evnex.io Evnex Ltd. reserves the right to make changes to this document or the products described without notice. This document is current at the time of printing. Please ensure you have the latest version. For questions relating to this product please refer to contact details at the end of this document.
- Page 3 Contents 04 & 05 Product description Health & Safety 06 & 07 Status display Important information How to charge Troubleshooting & Support NZ: www.evnex.com | 0800 395 007 AU: www.evnex.com.au | 1800 959 377...
-
Page 4: Product Description
The E2 has a standard 7.4kW power rating and is available with either a type 2 or type 1 tethered charging cable. The Evnex mobile control app is accessible for free, with features continuously improving based on feedback from our EV drivers. - Page 5 NZ: www.evnex.com | 0800 395 007 AU: www.evnex.com.au | 1800 959 377...
-
Page 6: Status Display
Status display The LEDs on the front of the charger indicate the current status, using a combination of colour and animation. IDLE CHARGING If the charger is currently idle and When a vehicle is charging, the LEDs available to be used, the LEDs show a show a “filling”... - Page 7 “breathing” animation is shown. You can see insufficient excess available, a yellow what time charging is going to begin by looking “breathing” animation is shown. at the charger in the Evnex app. FAULT DISABLED If the charger is unable to charge a...
-
Page 8: How To Charge
How to charge 01 Plug in your charging cable Connect the charging cable to your vehicle’s charging socket. 02 Vehicle charging Your vehicle will start charging or the charging session will be delayed until a scheduled time or solar diversion conditions are met. -
Page 9: Health And Safety
Do not use the EV charger if the plug and lead is cracked, frayed, or damaged in any way. After charging, tethered cable should be stored safely by wrapping it around unit. NZ: www.evnex.com | 0800 395 007 AU: www.evnex.com.au | 1800 959 377... - Page 10 • The vehicle’s on-board charger is required to comply with IEC 61851-1 and Evnex Limited shall not be liable in IEC 61851-21-1. any way for damage or injury that occurs when using the product, and all •...
- Page 11 If you have any issues or need help with using your EV charger, please contact our customer support team. New Zealand Australia 0800 395 007 1800 959 377 www.evnex.com www.evnex.com.au NZ: www.evnex.com | 0800 395 007 AU: www.evnex.com.au | 1800 959 377...
- Page 12 | www.evnex.com.au © Evnex Limited. All rights reserved.
