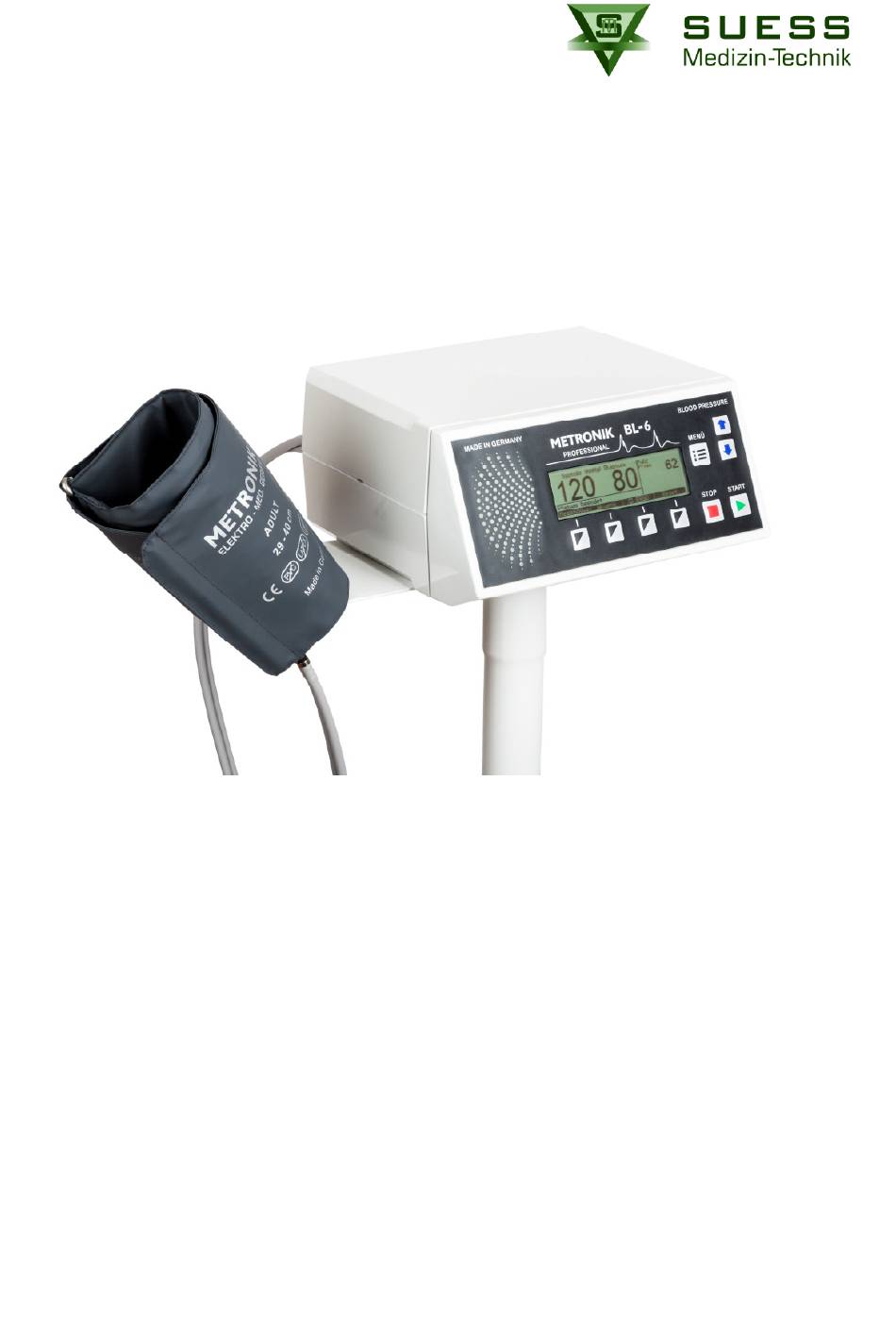

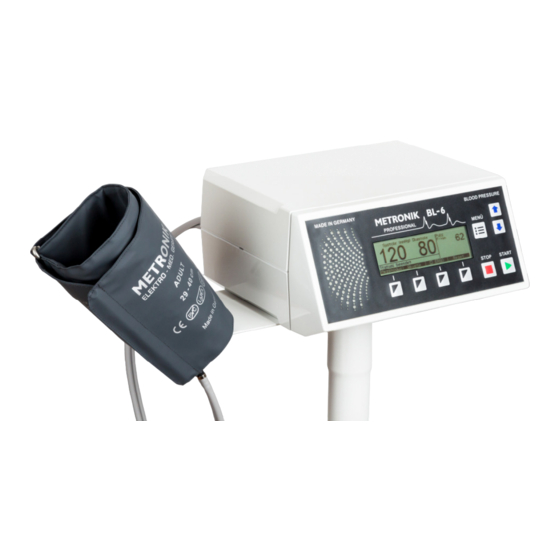

Blood Pressure Monitor
valid for REF BL-6 1000 and REF BL-6 1100
2018-05-22
Revision:
Version:
V 5.3
METRONIK
BL-6
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the METRONIK BL-6 and is the answer not in the manual?

Questions and answers

Summary of Contents for SUESS Medizin-Technik METRONIK BL-6

  • Page 1 METRONIK Blood Pressure Monitor BL-6 Instruction manual valid for REF BL-6 1000 and REF BL-6 1100 2018-05-22 Revision: Version: V 5.3...
  • Page 2 This manual is not subject to any change order service. SUESS Medizin-Technik GmbH assumes no liability for errors or inaccuracies that may appear in this manual. Copyright © 2008-2018 SUESS Medizin-Technik GmbH, All rights reserved.

  • Page 3: Table Of Contents

    Instruction manual rev. 5.3 METRONIK BL-6 Table of contents DESCRIPTION OF THE METRONIK BL-6 DEVICE ..................4 1.1. I ......................4 NSTRUCTION FOR RESTING MEASUREMENT 1.2. U DK26 ......................4 SING OF COMPENSATION CHAMBER WARNINGS AND PRECAUTIONS ....................... 5 2.1 L ................................

  • Page 4: Description Of The Metronik Bl-6 Device

    BL-6 is a medical device class IIa. The blood pressure device METRONIK BL-6 is a robust device, easy to use, with very high reliability. It is designed for most application of non-invasive blood pressure measurement.

  • Page 5: Warnings And Precautions

    - when the cuff should be applied to broken skin The use of the blood pressure monitor METRONIK BL-6 for the monitoring of vital processes, where physiological changes can lead to an immediate danger for the patient, is definitely excluded and does not correspond to the usage regulation.

  • Page 6: Labels

    Instruction manual rev. 5.3 METRONIK BL-6 We additionally point out that solely METRONIK spare parts have to be used for any kind of maintenance. 2.1 Labels CE Approval Note accompanying documents Note instruction manual Type BF applied part Device Name...

  • Page 7: Method

    There is an integrated compensation tank for mechanical suppression of moving artefacts. The METRONIK BL-6 is ideally suited for stress measurements with treadmill or bicycle ergometers. The cuff is designed as a one-tube-system, even though it contains a double tube. That means one tube is used for apply the air into the cuff, the other tube includes the microphone cable.

  • Page 8: Preparations For Measuring

    Connect the cuff with air tube and microphone to the corresponding slots on the rear of the METRONIK BL-6. Check and maintain the cleanness of parts that have direct contact with patients. Switch on the METRONIK BL-6 device (Power switch on the rear). METRONIK Blood Pressure Monitor BL-6...

  • Page 9: Choice Of Cuff Size

    Instruction manual rev. 5.3 METRONIK BL-6 4.1 Choice of cuff size Important! Use the correct cuff-size. The table shows all cuff types currently available for the METRONIK BL-6 Order No Name Size Range Design 32-10-2940 ZWM2940 Adult 29-40 cm Clamp cuff...

  • Page 10: Positioning The Microphone

    Instruction manual rev. 5.3 METRONIK BL-6 4.2.1 Positioning the microphone: Position of microphone marker label at the inner side of upper arm between m.Biceps and m.Triceps. The microphone must perfectly be in contact with the body, possibly over thin sleeves. The elbow must be completely free.
  • Page 11 Instruction manual rev. 5.3 METRONIK BL-6 The cuff consists of cuff bladder (including microphone, microphone cable and connector, cuff tube and QuickConnect), handle, strap and cuff cover. If the sleeve cover is no longer usable as a result of contamination, material fatigue or wearing down, it can be changed separately, the other components can still be used.

  • Page 12: Taking The Measurement

    Instruction manual rev. 5.3 METRONIK BL-6 Taking the measurement MADE IN GERMANY BLOOD PRESSURE METRONIK BL 6 PROFESSIONAL MENÜ STOP START There are the following controls to handle the monitor: START STOP DOWN MENU 4x Special function Soft-key titled in the bottom of display, predefined by menu.
  • Page 13 In the bottom right corner, the current cuff pressure is displayed while the cuff deflates. In case Korotkov sounds are detected within the first seconds, the METRONIK BL-6 will start the pump again and will further inflate the cuff to reach a peak pressure that is 30 mmHg above the preselected initial pressure value.

  • Page 14: Special Functions

    5.1 Special functions Measurement Mode: With METRONIK BL-6 there are three measurement modes: - normal: inflate, consistent deflation rate during measuring - fast: inflate, consistent deflation up to detecting systolic value, after the fourth pulse fast deflation to a predefined pressure value (standard value: 120mmHg), afterwards the diastolic value will be measured.
  • Page 15 Activated SENS is displayed by the word ‘SENS’. With this profile the sensitivity of the microphone amplifier will be increased. In sensitivity mode (SENS), the METRONIK BL-6 is considerably more susceptible to all kind of sounds that might occur during the application. Hence, even fairly quiet Korotkov sounds can be measured automatically.
  • Page 16 Setting Menu – Automatic – Sequence [active / inactive] How can be recognized, that Sequence is active? If Sequence is activated, in METRONIK BL-6 Measurement View: „Status: ready (Seq.)“ If Sequence is inactive, in METRONIK BL-6 Measurement View: „Status: ready“...

  • Page 17: Main Menu - Selections And Settings

    Instruction manual rev. 5.3 METRONIK BL-6 Main menu - selections and settings 6.1. Introduction to operation By pressing these Button, one can browse through the various menu items. By pressing the STOP button, the user will always return to the measurement view.

  • Page 18: Measurement View

    Instruction manual rev. 5.3 METRONIK BL-6 6.2. Measurement View In the bottom right corner, the initial pressure is displayed. This is the pressure to which the cuff will be inflated once the measurement is started. Use the UP / Down Buttons for changing the initial pressure by increments of 10 mmHg.

  • Page 19: Interval Measurement Menu

    Instruction manual rev. 5.3 METRONIK BL-6 6.3. Interval Measurement Menu With interval measurement the device can start automatically in time intervals. So BP readings can be done synchronized to the examination order without the need of connection to an external PC.
  • Page 20 Instruction manual rev. 5.3 METRONIK BL-6 Select interval period by preset With third special function softkey a time period preset can be choosen. This makes it easier to jump to much smaller or much longer intervals. If pressed this key, next key press will choose one of the four preset values.

  • Page 21: Archive Menu

    Instruction manual rev. 5.3 METRONIK BL-6 6.4. Archive Menu Within the archive, recent measurements are listed with date and time, systole and diastole, ♥ pulse and measuring mode. Therein, 'A' indicates an automated measurement while 'M' represents a manual measuring. The ergometric and the sensitivity mode are specified by an 'E' and 'S', respectively.
  • Page 22 Shows firmware version, serial number, date of last MTC (pressure transducer control) Explanation of the transmission protcols: The METRONIK BL-6 can be set up to work directly with various stress systems. The compatibility with older software is given by emulation of different proven transmission protocols. Hence, there are different ways to connect the METRONIK BL-6 to most systems.

  • Page 23: Cleaning Of Bl-6 And Cuff

    Before cleaning, disconnect the power supply from the monitor. Wipe the device with a soft, damp cloth to remove the surface from dust and dirt. The METRONIK BL-6 must not be sterilized or autoclaved. Do not immerse the monitor in any fluid. Do not clean with any liquid detergents, cleaning agents, or solvents.

  • Page 24: Important Hints

    There are no side effects known. Return of old equipment: If you intend to discontinue use of the METRONIK BL-6 blood pressure monitor for various reasons, the manufacturer is required by law to take back old appliances (ElektroG law of 13 August 2005).

  • Page 25: Technical Data

    The cuff connection is type BF for original METRONIK cuffs 10.2. Declaration of guarantee The METRONIK BL-6 is covered against any material defects which may occur. This is a two year warranty starting by the date of purchase. The guarantee doesn’t cover improper use, external forces and wear parts like the cuff.
  • Page 26 (based on DIN EN 60601-1-2:2002-10) The METRONIK BL-6 blood pressure monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the BL-6 Monitor has to ensure that it is applied in such an environment.
  • Page 27 Instruction manual rev. 5.3 METRONIK BL-6 Guidance and manufacturer’s declaration – electromagnetic emissions Immunity test IEC 60601 test level Compliance Electromagnetic environment - guidance level Conducted RF Portable and mobile RF communications IEC 61000-4-6 150 kHz to 80 MHz equipment should not be within the...

  • Page 28: Accessories And Cuffs

    Instruction manual rev. 5.3 METRONIK BL-6 BL-6 accessories and cuffs Article Article no. Description Cuff size adult, Range 29-40cm 32-10-2940 Ergometry cuff adult, range 29-40 cm ZWM2940 consist of ZB2940, BSM2940, DR2940, ST10 32-20-2940 quick change cover for ZWM2940 ZB2940...

  • Page 29: Error Management

    Instruction manual rev. 5.3 METRONIK BL-6 Error management error Inflation failed error description: pressure does not increase in the initial 5s after pressing START possible cause correction cuff not connected connect the cuff cuff not properly connected adjust the cuff´s connector...
  • Page 30 Instruction manual rev. 5.3 METRONIK BL-6 error wrong resting measurement data error description: no measurement data is displayed after the initial resting measurement possible cause correction cuff wrongly adjusted, the microphone does not see chapter 4.2 rest on top of the artery, Korotkov sounds are...
  • Page 31 Instruction manual rev. 5.3 METRONIK BL-6 error wrong stress measurement data error description: stress measurement data is displayed wrong or not appropriate possible cause correction See also only when the resting measurement wrong resting measurement data is correct, the stress measurement...
  • Page 32 PC system error description: the BPM is not detected by the PC possible cause correction the METRONIK BL-6 is not properly installed in reinstall the driver, use the attached the Windows Device Manager, no COM interface driver CD or contact service...
  • Page 33 PC ECG and METRONIK BL-6 software error try to isolate the error, document it and inform the manufacturer or service partner note: if used with an...
  • Page 34 Instruction manual rev. 5.3 METRONIK BL-6 METRONIK Mittelstr. 9 D-08280 Aue GERMANY E-mail: mail@metronik.de URL: www.metronik-suess.de METRONIK – Making blood pressure meters for over 50 years Made in Germany METRONIK Blood Pressure Monitor BL-6...
