Summary of Contents for BG Trade BGT-Link-NTG4.5
- Page 1 Instruction Manual High-Definition Link for Mercedes-Benz BGT-Link-NTG4.5 Model Name BGT-Link-NTG4.5 Latest Firmware Date 2014 - 04 - 27 Manual Version Rev. 2.1 Language English...
-
Page 2: Table Of Contents
Contents • Cautions _____________________________________________________________ 3 • Dimension & Exterior _________________________________________________ 4 • Components & Optional parts _________________________________________ 5 • Full Installation Diagram ______________________________________________ 6 • HDMI Connection Diagram ____________________________________________ 7 • Navigation Connection Diagram(Type A & B) ____________________________ 8 • Compatibility Chart for Navigation(GPS) box models ____________________ 9 •... -
Page 3: Cautions
Navigation(GPS) box-related • When you connect the power wires(B+, ACC) to the navigation(GPS) box, the 'ACC (12V) OUT' wire supported by BGT-Link-NTG4.5 should be spliced with an ACC wire of navigation box. • After installation is done, select an applicable navigation(GPS) box model in the 'Navigation model selection menu' of setting mode. -
Page 4: Dimension & Exterior

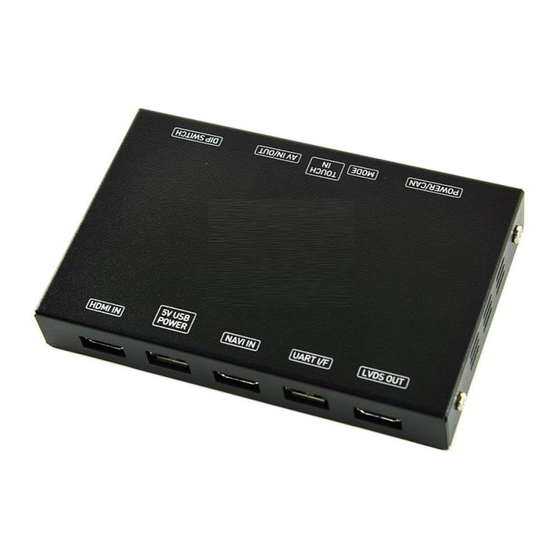

Dimension Width: 142 mm Height: 22 mm Length: 91 mm ⓐ ⓑ ⓒ ⓓ ⓔ Exterior ⓐ DIP SWITCH ⓑ AV IN / OUT ⓒ TOUCH IN ⓓ MODE ⓔ POWER / CAN ⓕ HDMI IN ⓖ 5V USB POWER ⓗ... -
Page 5: Components & Optional Parts
Components Power / CAN Cable LVDS Cable LVDS PCB HDMI Cable AV IN / OUT Cable 5-pin Micro USB Cable Optional Parts Optional Parts (sold separately at the indiwork) (purchased separately) TTA 24-Pin to HDMI Gender Touch-IN Cable Mode Switch iNAVI CUBE LCD Cable HDMI Cable HDMI extender... -
Page 6: Full Installation Diagram
Full Installation Diagram Touch screen panel GND Input ※ CAN HIGH / LOW Pin Specification B+ Power Input GND Output ※ Optional External Devices Mode 12V ACC Power Touch IN Cable Switch Output (Navigation Power) (Installation Type A) (optional) RV-CAM Video Input External Rear View 12V Power Output &... -
Page 7: Hdmi Connection Diagram
HDMI Connection Diagram HDMI Device HDMI Device HDMI IN 5V USB NAVI IN UART I/F LVDS OUT HDMI IN 5V USB NAVI IN UART I/F LVDS OUT POWER POWER HDMI HDMI HDMI HDMI (5V-1A Power output for HDMI Device) (5V-1A Power output for HDMI Device) (Male) (Female) (HDMI Extender) -
Page 8: Navigation Connection Diagram(Type A & B)
Navigation Connection Diagram(Type A) Navigation Connection Diagram(Type B) Navigation(GPS) Box Navigation(GPS) Box HDMI IN 5V USB NAVI IN UART I/F LVDS OUT HDMI IN 5V USB NAVI IN UART I/F LVDS OUT POWER POWER TOUCH IN HDMI HDMI Touch screen panel Touch screen panel HDMI Gender... -
Page 9: Compatibility Chart For Navigation(Gps) Box Models
Compatibility Chart for Navigation(GPS) box models – Korea Market Dip S/W Installation Model Country Required Parts Type (Navigation) CUBE(Light) South Korea Type A - iNAVI Gender CUBE LCD Touch-IN HDMI Cable (TTA 24-pin OFF(↑): 1, 2, 3, 4 Cable(iNAVI) Cable to HDMI) (Male to Male) Class Settop... -
Page 10: Lvds Connection Diagram
LVDS Connection Diagram LVDS Connection HDMI IN 5V USB NAVI IN UART I/F LVDS OUT POWER Monitor(OEM) HDMI • 'Genuine(OEM) LVDS connector' should be connected to 'LVDS IN / OUT PCB'. • ‘Provided LVDS connector' should be connected to the monitor instead to the genuine connector. -
Page 11: Body Connector Specifications
Body Connector specifications MODE TOUCH-IN AV IN / OUT DIP SWITCH POWER / CAN 1 2 3 4 Length: 20 cm Length: 100 cm Length: 150 cm Length: 150 cm BATTERY POWER INPUT RV-CAM VIDEO INPUT GND(RV-CAM VIDEO) GND INPUT RV-CAM POWER OUT GND OUTPUT(RV-CAM) GND OUTPUT... -
Page 12: Car Compatibility Chart
Car Compatibility Chart Production Car Models Specific Models Year A-Class 2012 - W176 B-Class 2012 - W246 C-Class 2011 - W204 E-Class 2012 - W212 The IW04M is used in combination CLA-Class 2014 - C117 with Mercedes-Benz COMAND APS CLS-Class 2011 - W218 NTG 4.5(ONLINE) and AUDIO 20. -
Page 13: Activation By Original Buttons Of Mercedes-Benz
Activation by original buttons of Mercedes-Benz For COMAND APS NTG 4.5 & AUDIO 20 Button Function Operation Remarks Changing Order: HDMI → NAVI → AV2 → OEM Press the button 2 seconds long. Modes Back < OEM → NAVI > Press the button 2 times. -
Page 14: Dip Switch Settings
DIP Switch Settings ON: ▼ OFF: ▲ ON(▼) OFF(↑) No.6 No.7 No.8 No.9 No.10 Car Models A, B-Class HDMI Mode Skip HDMI Mode OFF(▲) OFF(▲) OFF(▲) OFF(▲) OFF(▲) (5.8-inch / 400*240) E-Class Navigation Mode Skip Navigation Mode OFF(▲) OFF(▲) OFF(▲) OFF(▲) ON(▼) (7-inch / 800*480) -
Page 15: Settings
Settings For COMAND APS NTG 4.5 & AUDIO 20 Button Function Back( Back to previous menu when press the button short. Enter into the setting menu when you press the button CLR(C) 5 seconds long. Up, Down, Left, Right Move the menu-pointer and adjust the setting values. Selection( Select the setting menu and setting values. -
Page 16: Hdmi Mode Settings
Settings 2. HDMI mode settings - Mode selection: HDMI ↔ NAVI - Image display = Adjust the values of brightness and contrast Red-Green-Blue colors of HDMI display. - Screen position & size = Adjust position and size of HDMI display. 3. -
Page 17: Rear View Camera Settings
Settings 4. Rear view camera settings - Parking guide lines = Adjust position of parking guide lines and select the lines ‘ON or OFF’. - Parking distance control = Adjust position of parking distance control sensors to ‘LEFT or RIGHT’ and select the PDC ‘ON or OFF’. - Image display = Adjust the values of brightness and contrast Red-Green-Blue colors of Rear view camera display. -
Page 18: Automatic Activation Function(Av1)
Settings 6. Automatic activation function(AV1) - Shift gear from reverse to drive - Shift gear from parking to drive * When you shift gear ‘from reverse to drive’ or ‘from parking to drive’, it just works automatically during the activation time you selected. 7. -
Page 19: System Settings
- Factory default = Reset all setting values to factory default setting. 9. System information - Mode name: BGT-Link-NTG4.5 - Firmware date: 2014 - 04 – 27 (Latest firmware date) - = You can check the current firmware version date. -
Page 20: Information Of Dip Switch Settings
Settings 10. Information of Dip switch settings * You can check the current positions of dip switch settings. ex 1) ex 2) Actual DIP switch values. (→) Actual DIP switch values. (→) Appears on the setting menu. (↓) Appears on the setting menu. (↓)
