Summary of Contents for Huyosen CG430MF-3

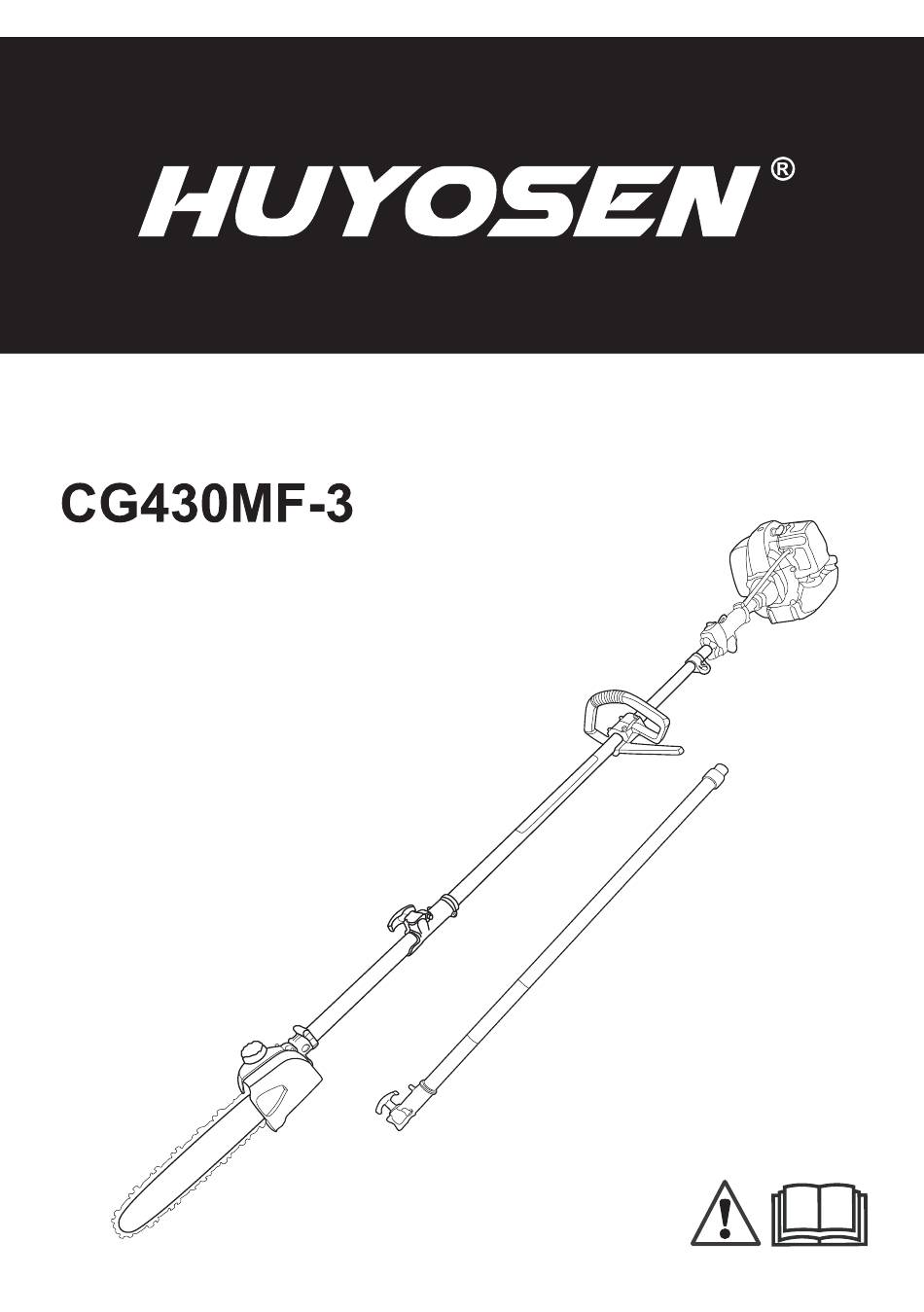

- Page 1 OPERATOR’S MANUAL Gas Pole Saw...
-
Page 2: Table Of Contents
Contents Introduction..............2 Troubleshooting............22 Safety................4 Transportation, storage and disposal......22 Assembly................ 9 Technical data.............. 23 Operation..............11 Accessories..............24 Maintenance..............14 EC Declaration of Conformity........25 Introduction Intended use Note: National regulations can set limit to the operation The product is used for cutting branches and twigs. of the product. - Page 3 Symbols on the product WARNING! This product is dangerous. Injury or death can occur to the operator or Adjustment of the oil flow. bystanders if the product is not used carefully and correctly. To prevent injury to the operator or bystanders, read and obey Direction of rotation, saw all safety instructions in the operator's chain.
-
Page 4: Safety
Safety Safety definitions Safety instructions for assembly Warnings, cautions and notes are used to point out WARNING: Read, understand and obey specially important parts of the manual. these instructions carefully before you use the product. WARNING: Used if there is a risk of injury or death for the operator or bystanders if the •... - Page 5 • Do not operate a product without a muffler or with a • Keep your hands and feet away from the saw chain defective muffler. A defective muffler can increase until it has stopped completely when the product is deactivated. the noise level and the risk of fire.
- Page 6 If the saw • Do a check of the safety devices regularly. chain rotates with the throttle in the idle position the • If the safety devices are defective, speak to Huyosen carburettor idle setting must be checked. service .
- Page 7 • Only use approved containers when you move the To do a check of the stop switch fuel or put the fuel into storage. 1. Start the engine. • Empty the fuel tank before long-term storage. Obey 2. Move the stop switch to the stop position and make the local law on where to dispose fuel.
-
Page 8: Assembly
Assembly 4. Tighten the bar nut finger-tight. To assemble the bar and chain 1. Unscrew the bar nut and remove the bar cover . 4. Tension the chain by turning the chain tensioning screw clockwise using the screw driver. The chain should be tensioned until it does not sag from the 2. - Page 9 To assemble the Front handle 3. Align the tab of the cutting attachment (A) with the arrow of the coupling (C). 1. Put the rubber washer on the shaft B.. 2. Put the handle on the rubber washer . 4. Carefully push the shaft(A) into the coupling until you hear a click.
- Page 10 To wear the harness 6. Make sure the board is on the right side of your body. 1. Take out harness from the package . Pull the snap and open the lock . 7. Wearing the harness . (Front / Right ) 3.
- Page 11 To attaching the harness 4. Emergency Release Pull the red tag (G) the buckle will breaks away . 1. Put the buckle through the hook. Buckle Hook 2. Loosen the hook screw and move it to the best position Hook screw 3.
-
Page 12: Operation
Operation Fuel To mix gasoline and two-stroke oil This product has a two-stroke engine. Gasoline, liter Two-stroke oil, liter CAUTION: Incorrect type of fuel can result in engine damage. Use a mixture of gasoline 4% (25:1) and two-stroke oil. 0.20 Gasoline 0.40 0.60... - Page 13 To fill the fuel tank To use the product 1. Clean the area around the fuel tank cap. • Hold the product as close to your body as possible to get the best balance. Use the harness to support the 2.
- Page 14 3. Push the air primer bulb 6-10 times . • Use the stop at the base of the cutting head to provide support during cutting. This will help prevent the cutting attachment from ”jumping” on the branch. • Make an initial cut on the underside of the branch Primer Bulb before cutting through the branch.
- Page 15 About the surface 7. Operate the throttle gradually when the engine starts. WARNING: Do not touch the area that is identified with gray in the illustration. There is a risk of burn injuries when the product is hot. There is a risk of electrical shock if the spark plug cap is damaged.
-
Page 16: Maintenance
Maintenance Maintenance schedule Maintenance Daily Weekly Monthly Clean the external surface. Make sure that the throttle trigger lock and the throttle works correctly. Do a check of the stop switch to make sure that it works correctly. Make sure that the saw chain does not rotate at idle speed. Clean the air filter. - Page 17 Loss of engine power. not stop when you adjust the idle speed, • Unnecessary wear to engine parts. Speak to Huyosen service . Do not use the • Too much fuel consumption. product until it is correctly adjusted or repaired.
- Page 18 4. Examine the groove in the guide bar for wear. To examine the cutting equipment Replace the guide bar if it is necessary. 1. Make sure that there are no cracks in rivets and links and that no rivets are loose. Replace if it is necessary.
- Page 19 • Number of teeth on bar tip sprocket (T). General information about how to sharpen the cutters Do not use a blunt saw chain. If the saw chain is blunt, you must apply more pressure to push the guide bar through the wood.
- Page 20 To tension the chain To adjust chain lubrication WARNING: A saw chain with an incorrect tension can derail from the guide bar and WARNING: Stop the engine before you cause serious injury or death. make adjustments to the oil pump. A saw chain becomes longer when you use it.
-
Page 21: Troubleshooting
Troubleshooting The engine does not start Check Possible cause Procedure Stop switch. The stop switch is in the stop Replace the stop switch. position. Fuel tank. Incorrect fuel type. Drain the fuel tank and fill with correct fuel. Spark plug and cylinder. The spark plug is dirty or wet.
