Installation and
Operation Manual
PICCOLO SERIES

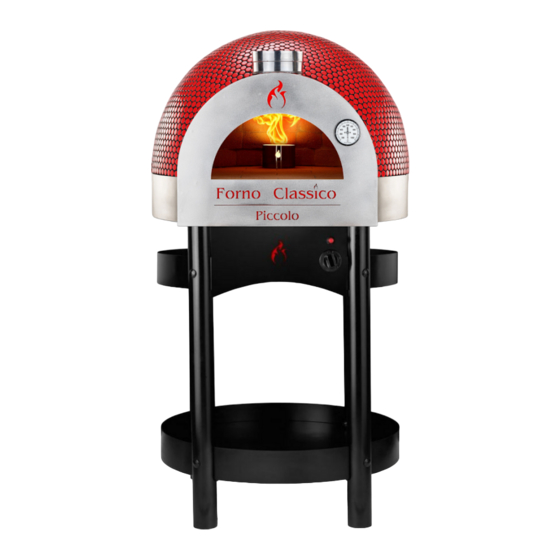

ITALIAN BRICK OVEN
Gas-Fire Model
THE PICCOLO & PICCOLINO PIZZA OVEN
BY FORNO CLASSICO
Instructions for the Assembly, Use and Care of Your
Hand Made Brick Oven
Piccolino 45-18''
Piccolo 65-26"
Forno Classico LLC
53 Aero Camino
Goleta, CA 93117 USA
Phone: +1 (805) 895-2626
Phone: (805) 895-2626
info@fornoclassico.com
1
www.fornoclassico.com
Advertisement
Table of Contents
Related Manuals for Forno Classico PICCOLO Series
Summary of Contents for Forno Classico PICCOLO Series
- Page 1 Installation and Operation Manual PICCOLO SERIES ITALIAN BRICK OVEN Gas-Fire Model THE PICCOLO & PICCOLINO PIZZA OVEN BY FORNO CLASSICO Instructions for the Assembly, Use and Care of Your Hand Made Brick Oven Piccolino 45-18’’ Piccolo 65-26” Phone: (805) 895-2626...
-
Page 2: Table Of Contents
LIGHTING THE OVEN............19 FLAME CONTROL............20 CHANGE THE IGNITOR BATTERY........21 CLEANING THE OVEN............22 CURING THE OVEN............23 WARRANTY & LIABILITY...........24-25 CONDITIONS OF SALE...........26 Forno Classico LLC Phone: (805) 895-2626 53 Aero Camino info@fornoclassico.com Goleta, CA 93117 USA www.fornoclassico.com Phone: +1 (805) 895-2626... - Page 3 Residential Oven Series Installation, Operation & Maintenance WARNING: All Forno Classico ovens must be installed by a general contractor or licensed professional. Improper handling and installation of the ovens can lead to severe injury or death. Improper instillation on the gas burners can also residentialOven Series lead to a fire causing injury or death.
- Page 4 Installation, Operation & Maintenance WOOD STONE TRADITIONAL SERIES GAS-FIRED AND GAS/WOOD COMBINATION OVEN INSTALLATION AND OPERATING INSTRUCTIONS FORNO CLASSICO RESIDENTIAL SERIES GAS-FIRED OVEN CAUTIONS & WARNINGS RETAIN THIS MANUAL FOR FUTURE REFERENCE Additional copies of this manual at www.fornoclassico.com RETAIN THIS MANUAL FOR FUTURE REFERENCE For prompt responses to service/maintenance questions, call us at (805)-895-2626 Additional copies of this manual at woodstone-corp.com.
-
Page 5: Cautions & Warnings
National Fuel Gas Code, ANSI Z223.1/NFPA 54 or Natural Gas and Propane Installation Code, CSA B149.1; and to NSF/ANSI Standard 4 - 2009. Propane Storage and Handling, CSA B149.2. Forno Classico LLC Phone: (805) 895-2626 Wood Stone Corporation Toll Free 800.988.8103 53 Aero Camino info@fornoclassico.com... - Page 6 IMPORTANT: Any damage caused by a failure to heed the warnings or follow the safety instructions and safe practices described in this instruction manual is not covered by any warranty. Forno Classico LLC Phone: (805) 895-2626 53 Aero Camino info@fornoclassico.com Goleta, CA 93117 USA www.fornoclassico.com...
- Page 7 § Do not block any openings of the oven; do not obstruct the flow of combustion or air ventilation and do not block off the open front of the oven. Do not install the oven inside of a structure; your pizza oven should only be installed in an open outdoor location. Forno Classico LLC Phone: (805) 895-2626 53 Aero Camino info@fornoclassico.com Goleta, CA 93117 USA www.fornoclassico.com...
- Page 8 § Do not use the oven in heavy wind conditions. § Please follow all the guidelines in this manual for the installation, safe and proper use of your pizza oven. Forno Classico LLC Phone: (805) 895-2626 53 Aero Camino info@fornoclassico.com Goleta, CA 93117 USA www.fornoclassico.com...
-
Page 9: Unloading & Warning
1,000 lbs. 2,000 lbs THE OVEN IS VERY HEAVY. MOVING THE OVEN UP OR DOWN A RAMP OR INCLINE ON A PALLET JACK IS NOT SAFE! Forno Classico LLC Phone: (805) 895-2626 53 Aero Camino info@fornoclassico.com Goleta, CA 93117 USA www.fornoclassico.com... - Page 10 If the forks don’t extend across the base, use 4” x 4” posts to bridge the space, placing the forks underneath for support. DO NOT TURN THE OVEN ON ITS SIDE Forno Classico LLC Phone: (805) 895-2626 53 Aero Camino info@fornoclassico.com Goleta, CA 93117 USA www.fornoclassico.com...
-
Page 11: Installation Clearances
Residential Oven Series Installation, Operation & Maintenance CLEARANCE INSTALLATION CLEARANCES 1. Forno Classico Gas Traditional Series fired ovens must have a minimum 1" clearance to combustibles from all sides, and 14" Installation and Operation Manual clearance to combustibles from the top. - Page 12 THE FORNO CLASSICO NAPOLI OVENS Forno Classico ovens carry an CSA Sanitation listing. The oven interior only is CSA listed to NSF/ANSI Standard 4. Surfaces of the oven, meant to be left exposed after facade installation, have been evaluated for sanitation and food safety and comply with NSF/ANSI Standard 4.
-
Page 13: Gas Specifications
Check to make sure that your pizza oven was made to use natural gas. If you are not positive that you specified natural gas for your oven, please call or write Forno Classico before installing and using natural gas as your fuel source. Using the wrong fuel source will damage your oven. A pizza oven configured for LP gas will have orifices that are different than an oven made for natural gas. - Page 14 GAS SPECIFICATIONS CONT’D Residential Oven Series Installation, Operation & Maintenance Factory Specified Manifold Pressures (W.C.) and associated BTU/hr. input values for Forno Classico Residential Series Ovens Napoli Oven Model W.C . (NG) BTU/hr Input (NG) W.C. (Propane) BTU/hr Input (propane) Piccolino 7’’...
- Page 15 • Do not connect your pizza oven to liquid propane LP gas if the oven was made to be used with natural gas. Using the incorrect fuel source will damage your oven. Please call or write to Forno Classico before you connect to LP gas if you are not positive that your oven was created for use with liquid propane.
- Page 16 Never use a tank showing rust or that has a damaged valve. The liquid propane tank requires adequate ventilation to prevent any unsafe vapor buildup. Only use the gas regulator and gas lines provided by Forno Classico, designed for liquid propane. Never use natural gas in a Forno Classico oven designed for liquid propane.
- Page 17 National Fuel Gas Code, ANSI Z223.1/NFPA 54; regarding the Storage and Handling of Liquefied Petroleum Gases, ANSI/NFPA 58; Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling, CSA B149.2. Forno Classico LLC Phone: (805) 895-2626 53 Aero Camino info@fornoclassico.com...
-
Page 18: Hybrid Mode
Installation, Operation & Maintenance Forno Classico Ovens can be used with gas only or in a hybrid mode. Small amounts of wood can be added for flavor when the ovens are used in hybrid mode. If you use the oven in the hybrid mode, you must first bring the oven up to cooking temperature using gas only. -
Page 19: Lighting The Oven
COUNTERCLOCKWISE TO HIGH FLAME SETTING TO 4. RELEASE THE GAS KNOB AND TURN IT COUNTERCLOCKWISE TO HIGH FLAME HEAT UP THE OVEN. SETTING TO HEAT UP THE OVEN. Forno Classico LLC Phone: (805) 895-2626 53 Aero Camino info@fornoclassico.com Goleta, CA 93117 USA www.fornoclassico.com... -
Page 20: Flame Control
Flame Height Control Knob 8’ ’ 4. RELEASE THE GAS KNOB A COUNTERCLOCKWISE TO H SETTING TO HEAT UP TH Flame Height Index Scale Forno Classico LLC Phone: (805) 895-2626 53 Aero Camino info@fornoclassico.com Goleta, CA 93117 USA www.fornoclassico.com Phone: +1 (805) 895-2626... -
Page 21: Change The Ignitor Battery
Reinstall the black plastic cap turning it clockwise until snug. Avoid overtightening or damaging the cap by tightening it too hard. Forno Classico LLC Phone: (805) 895-2626 53 Aero Camino info@fornoclassico.com... -
Page 22: Cleaning The Oven
Clean as needed—Make sure the oven and the gas is turned off and the oven has cooled completely. Forno Classico recommends the use of a long-handled brush for sweeping up surface debris that will accumulate on the floor of the oven during use. Use a natural fiber brush, always brushing away from the radiant burner well to the doorway where it can be easily removed with a spatula. -
Page 23: Curing The Oven
Eventually, this moisture will disappear as curing is completed. 15’’ 10’’ 6’’ PILOT DAY 1 DAY 3 DAY 2 DAY 4 Forno Classico LLC Phone: (805) 895-2626 53 Aero Camino info@fornoclassico.com Goleta, CA 93117 USA www.fornoclassico.com Phone: +1 (805) 895-2626... -
Page 24: Warranty & Liability
(2) years from the date of delivery for the oven structure, which includes the oven dome and internal firebox. Forno Classico LLC warrants all other components of the brick ovens for one (1) year. These additional components include the gas burner, oven door, thermostat, oven floor, mosaic tile finish, and any other items integrated into the oven sold to the customer. - Page 25 Installation, Operation & Maintenance LIMITATION OF LIABILITY In no event shall Forno Classico LLC be liable for any indirect, special, incidental, or consequential damages (including lost profits or loss of goodwill), whether based on contract, tort (including negligence), or any other legal theory, arising out of or related to any order placed by a customer or accepted by Forno Classico LLC.
-
Page 26: Conditions Of Sale
The warranty of products sold by Forno Classico LLC has the following limitations: 1. The warranty on our brick ovens is voided and does not apply if they are not installed in accordance with Forno Classico delivery and installation manual instructions. Oven installation must conform to all local, state, and federal safety regulations. - Page 27 Forno Classico LLC Phone: (805) 895-2626 53 Aero Camino info@fornoclassico.com Goleta, CA 93117 USA www.fornoclassico.com Phone: +1 (805) 895-2626 An ongoing program of product improvement may require us to change specifications without notice.
