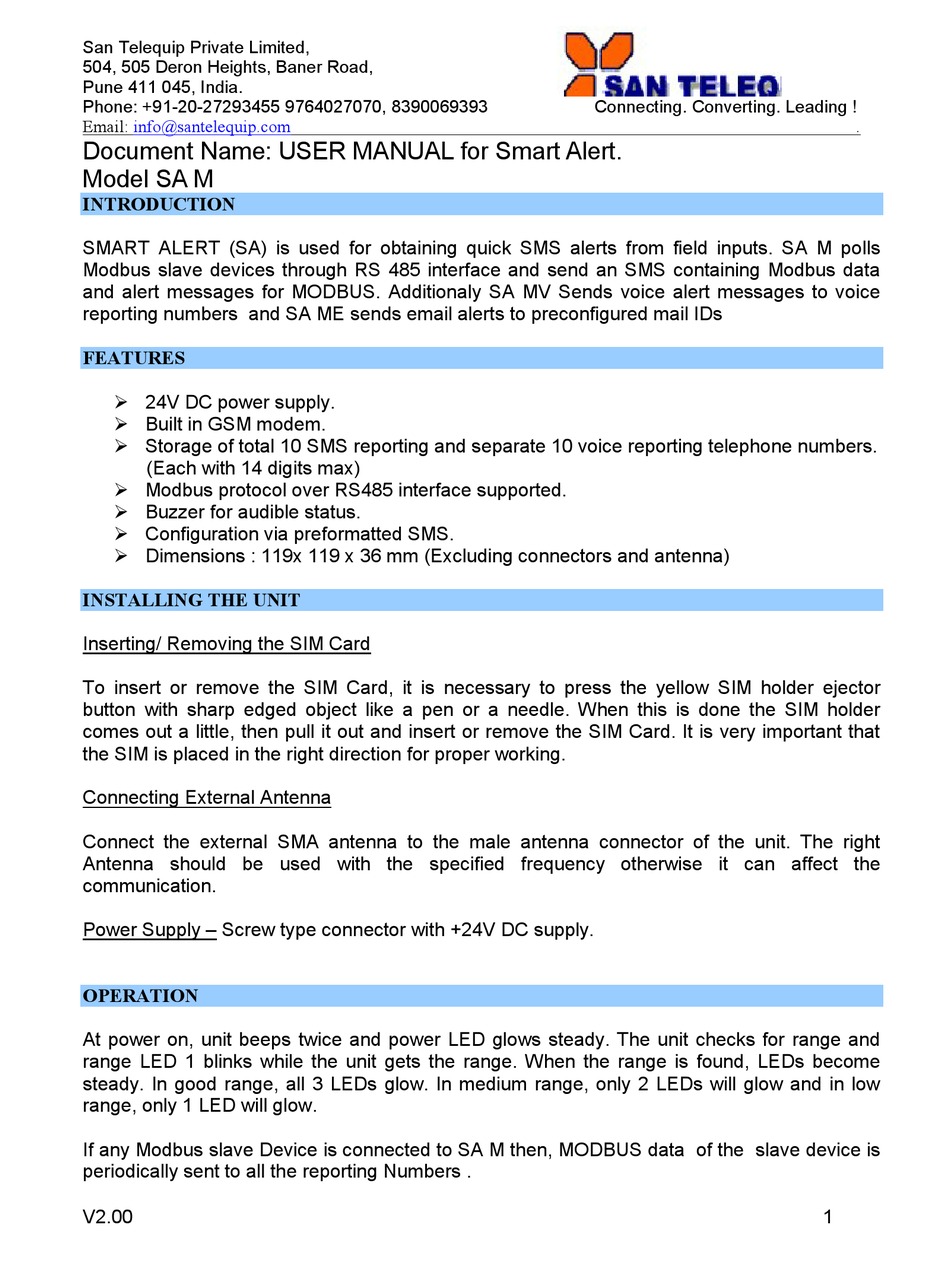

Document Name: USER MANUAL for Smart Alert.
Model SA M
INTRODUCTION
SMART ALERT (SA) is used for obtaining quick SMS alerts from field inputs. SA M polls
Modbus slave devices through RS 485 interface and send an SMS containing Modbus data
and alert messages for MODBUS. Additionaly SA MV Sends voice alert messages to voice
reporting numbers and SA ME sends email alerts to preconfigured mail IDs
FEATURES
 24V DC power supply.
 Built in GSM modem.
 Storage of total 10 SMS reporting and separate 10 voice reporting telephone numbers.
(Each with 14 digits max)
 Modbus protocol over RS485 interface supported.
 Buzzer for audible status.
 Configuration via preformatted SMS.
 Dimensions : 119x 119 x 36 mm (Excluding connectors and antenna)
INSTALLING THE UNIT
Inserting/ Removing the SIM Card
To insert or remove the SIM Card, it is necessary to press the yellow SIM holder ejector
button with sharp edged object like a pen or a needle. When this is done the SIM holder
comes out a little, then pull it out and insert or remove the SIM Card. It is very important that
the SIM is placed in the right direction for proper working.
Connecting External Antenna
Connect the external SMA antenna to the male antenna connector of the unit. The right
Antenna should be used with the specified frequency otherwise it can affect the
communication.
Power Supply – Screw type connector with +24V DC supply.
OPERATION
At power on, unit beeps twice and power LED glows steady. The unit checks for range and
range LED 1 blinks while the unit gets the range. When the range is found, LEDs become
steady. In good range, all 3 LEDs glow. In medium range, only 2 LEDs will glow and in low
range, only 1 LED will glow.
If any Modbus slave Device is connected to SA M then, MODBUS data of the slave device is
periodically sent to all the reporting Numbers .
