Muse M-52 DV - DVD Player Manual

Please read the instruction carefully before operating the unit.

LOCATION OF CONTROLS

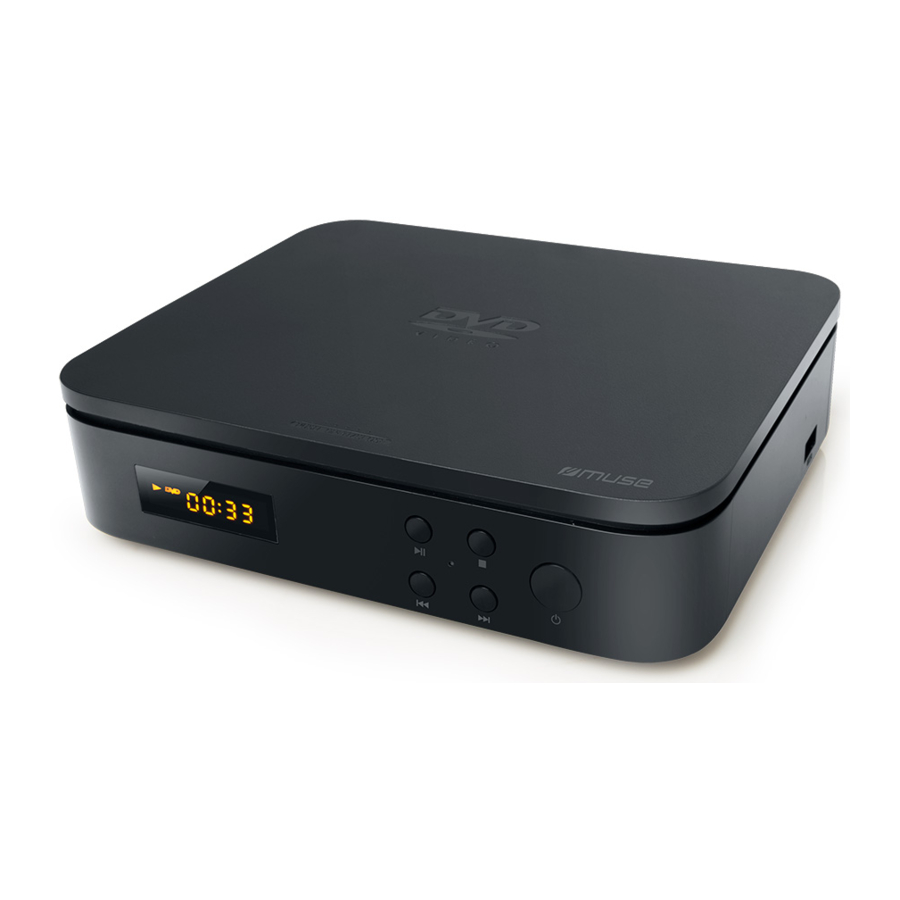

MAIN UNIT

1. LED display
2. Reverse skip-previous track
3. PLAY/PAUSE
4. STOP
5. Forward Skip-next track
6. STANDBY button / IR Window
7. USB
8. OPEN/CLOSE button
9. DC IN
10. Audio out(left/right)
11. Video out
12. HDMI

REMOTE CONTROL

1. Standby mode switch.
2. 0,1,2,...9, 10+: number entry.
3. Cursor (▼, ▲, ◄, ►) buttons: Press to highlight selections on a menu screen and adjust certain settings.
4. SETUP: To enter and exit the setup menu.
5. ENTER button: Press to confirm selections on a menu screen.
6. MENU: Return to DVD root menu (DVD).
7. SEARCH: to search for a desired title, chapter, time.
8. BUTTON: Press BUTTON allow skipping back at 5-level speed (X2->X4->X8->X16->X32->PLAY), press ENTER button return to normal playback.
9. STOP: MP3/Jpeg/Xvid files: press once to stop playback.
   DVD/VCD/CD: press once to pre-stop (resume with button), press again to stop playback.
10. BUTTON: Press button allow skipping ahead at 5-level speed (X2-> X4->X8->X16->X32->PLAY), press ENTER button return to normal playback.
11. TITLE: To access the disc TITLE menu.
12. RETURN: Return to root menu (DVD), return to PBC menu (VCD).
13. ANGLE: To access the camera angle function for DVD disc.
14. ZOOM: To access the zoom function.
15. MUTE: To mute or restore sound.
16. SUBTITLE: To change the subtitle setting.
17. LANGUAGE: Press LANGUAGE key to change the OSD language.
18. OSD: To show status information on the screen.
19. CLEAR: Clear the input number in SEARCH or PROGRAM state.
20. PROGRAM: To program playback sequences.
21. SOURCE: To select between DVD and USB mode.
22. WIDE: Selects the aspect ratio of the playback picture.
23. REPEAT: To repeat playback.
24. REVERSE SKIP , Go to previous chapter/track to the beginning.
25. PLAY/PAUSE: To start and pause the playback.
26. FORWARD SKIP , Go to next chapter/track.
27. VOL +/-
28. SLOW: Press SLOW button repeatedly to enter slow playback, and cycle between different speeds. The speeds are 1/2,1/4,1/8,1/16, and normal.
29. A-B: Set A-B
30. STEP: To play frame by frame.
31. AUDIO: To change the AUDIO setting.

Note: "" will be displayed if the function you select is not available.

INSTALLING BATTERY

Insert 2 "AAA/ UM4" batteries to the remote control prior to use. Make sure to match their polarities (+/-) to the markings inside the compartment.

NOTES:

• Before throwing any batteries away, consult your distributor who may be able to take them back for specific recycling.
• If the remote control is not going to be used for a long time, remove the battery to avoid damage caused by battery leakage corrosion.
• Never recharge the batteries, apply heat to them or take them apart.
• Attention should be drawn to the environmental aspects of battery disposal.
• Do not throw batteries in fire!
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with house hold waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive.)

ACCESSORIES

Remote Control x 1
AC adaptor x 1

POWER SUPPLY

Using the AC adaptor

The supplied AC adaptor is suitable for use on AC mains supplies of 100-240V 50/60Hz and should only be connected to a mains supply within these parameters.

• The AC adaptor included with this unit is for its use only. Do not use it with other equipment.
• Turn off the unit before unplugging the AC adaptor from the unit so as to avoid the unit being damaged.
• When the unit is not going to be used for long time, disconnect the AC adaptor from the AC outlet.
• Be sure to use it near the wall outlet and easily accessible. If a malfunction occurs, disconnect the plug from the wall outlet at once.
• AC adaptor is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To be completely disconnected the apparatus from supply mains, the AC adaptor of the apparatus shall be disconnected from the mains socket outlet completely.
• Never use an AC adaptor that is damaged, route power lead in a safe manner and make sure it is not subjected to trapping or pinching. If the power lead is damaged refer to a qualified service agent.

CONNECTIONS

Watching a DVD on your TV

Note: Make sure to use the cable with correct plug.

DISC PLAYBACK

Region Management Information

Region Management Information: This unit is designed and manufactured to respond to the Region Management Information that is encoded on DVD discs. If the Region number printed on the DVD disc does not correspond to the Region number of this unit, this unit cannot play that disc. The region number of this unit is 2.

Basic Playback

1. Press button to turn on the unit.
2. Press OPEN button on the unit to open the disc door.
3. Insert a disc with label face you.
4. Close the disc door. It takes a short while for your unit to load the disc. After loading, the unit will automatically bring you to the main menu of the DVD or start playing the DVD. If the unit does not automatically start playing the DVD, press the .

Accelerated play

While the disc is playing, press or one or more times to vary the speed and direction of the accelerated play. Press to resume normal playback.

Frame advance (DVD)

1. While the disc is playing, press STEP once.
2. Press STEP a number of times to advance forward image by image.
3. Press to resume normal playback.

Changing chapter/track

While the disc is playing, press or to go immediately to the next or previous chapter (DVD), or to the next or previous track (CD).

Zoom (DVD, JPEG)

While a disc is playing, press ZOOM until you reach the zoom size you want. The button cycles through 2x, 3x, 4x and then zooms out to 1/2x, 1/3x and 1/4x, then returns to normal playback. Note: Under Zoom function for JPEG file, press ZOOM button to go to Zoom 100% mode, then Press or button a number of times to vary the Zoom steps which you want.

ADVANCED FUNCTIONS

Search a desired section

The user can access a specific location or a specific track by keying in the target time or the track number.

1. Press SEARCH button repeatedly to enter different search mode.

2. Input the chapter number or playback time, then it will jump to the target location immediately.

PLAY MODES

Repeat playback

While the disc is playing, press the REPEAT button repeatedly to select a play mode:
DVD: Repeat Chapter, Repeat Title, Repeat All, Repeat Off;
CD: Repeat Track, Repeat All, Repeat Off;
MP3: Single, Repeat one, Repeat Folder, Folder, Shuffle, Random

Note:
"SINGLE": The selected track will play once and then stop playback.
"REPEAT ONE": The selected track will play continuously.
"REPEAT FOLDER": All tracks in the selected folder will play continuously.
"FOLDER": All tracks in the selected folder will play once and then stop playback.
"SHUFFLE": Randomly play once and then stop playback.
"RANDOM": Random play continuously.

Note: Some DVD discs do not allow repeat function.

Program playback

With this option, you choose and program the playback order. You can store up to 20 tracks.

1. Insert a disc.
2. In playing or stop mode, press the PROG button. The Program menu appears.

3. Use the number buttons to enter the title number and then the chapter number (DVD) or the track number (CD).
4. Use ◄, ►,▼, ▲button moving to the next input. Repeat step 3 until programming is completed.
   Note: press to go to next page for programming track 11 to 20.
5. Highlight the "START" icon, press ENTER button to start the program play.
6. Press the button twice to stop the program playback and clear the program memory.

USB PLAYBACK

You can connect a USB flash drive (not included) to the USB connector port on the unit to play Xvid movies as well as sound & picture files.

1. Plug the USB flash drive into the USB port on the unit.
2. Press the SOURCE button repeatedly to select the playback source as desired, DVD or USB. For operation of playing files on the USB flash drive, please refer to the section "PLAYING MP3/XVID/PICTURE FILES".

Note:

• It is recommended USB flash drive is plugged when the unit is in standby mode.
• There are many USB devices in the market. We cannot guarantee to support all different models. Please try another USB device if your device is not supported.

PLAYING MP3/XVID/PICTURE FILES

This unit can play MP3, Xvid and Picture files recorded on CD-R/CD-RW/DVD+ R/DVD+RW discs, USB flash drive.

1. Insert a disc or USB.
2. The content of disc or USB will be displayed on screen.
3. Press ◄, ►,▼, ▲ button to view and select the file that you want to play, then press ENTER button to confirm the selected file and start playback.
4. Press button to stop playback.

SETUP MENU

Navigating the setup menu

1. Press SETUP to display the setup main menu.
2. Press ◄, ► to select a menu icon.
3. Press ▲, ▼ to select one of the available options under a menu icon.
4. Press ► to access the submenu and ▲,▼ to select an option.
5. Press ENTER to confirm your selection.
6. Press ◄ to return to a previous menu.
7. Press SETUP to exit from the setup menu.

General Setup Page

• TV DISPLAY: selects the aspect ratio of the playback picture.
  • 4:3 PANSCAN:
    • When wide-screen video is played, this mode clips the right and left sides of the image so that it can be viewed on a conventional screen.
    • Some wide-screen DVDs that do not permit Pan Scan mode playback are automatically played in letterbox mode (black bands top and bottom).
  • 4:3 LETTERBOX:
    • When wide-screen video is played in this mode on a conventional screen, black bands appear at the top and bottom of the screen.
  • 16:9: wide screen display.
    • This is the correct mode for playing wide-screen videos on a wide-screen TV.
  • Notes:
    • The visible picture size is preset on the DVD disc. Therefore the playback picture of some DVD discs may not conform to the picture size you select.
    • When you play DVD discs recorded in the 4:3 aspect ratio, the playback picture will always appears in the 4:3 aspect ratio regardless of the TV shape setting in the function setup menu.
• Angle Mark
  ON: To show angle mark when a disc with multiple camera angles is playing. You can view different camera angles of a DVD disc by pressing ANGLE button on remote control.
  OFF: To hide angle mark.
  NOTE: This function is only available for discs encoded with multiple camera angles.
• OSD Language
  To select the language of unit's menus.
• Closed Captions
  Some discs have closed captions.
  ON: Show the closed captions.
  OFF: Hide the closed captions.
• Screen Saver
  To set screen saver ON or OFF.
• AUTO STANDBY (Automatic turn off)
  This function allows you to select the standby setting:
  OFF: The unit will not switch to standby mode.
  3 H: If no button is pressed within 3 hours, the unit will switch to standby mode automatically.
  4 H: If no button is pressed within 4 hours, the unit will switch to standby mode automatically.

Analog Audio Setup Page

• Downmix
  LT/RT: left and right soundtrack audio output.
  STEREO: Stereo audio signal output
• DOLBY DIGITAL
  DUAL MONO
  To select STEREO, L-MONO (left mono), R-MONO (right mono) and MIX- MONO for Dolby Digital output.
  DYNAMIC
  • To control the different sound levels via dynamic compression. It improves the quality of the sound track at a low volume, and quiets the loudest sounds.
  • This function is available only on DVD discs recorded in Dolby Digital.

Video Setup Page

• RESOLUTION
  Please select proper resolution according to your TV, otherwise the TV will have no signal.
• COLOR SETTING
  Setting the video quality.
  SHARPNESS: To adjust the sharpness of video output.
  BRIGHTNESS: To adjust the video brightness level on a scale of -20 to +20.
  CONTRAST: To adjust the video contrast level on a scale of -16 to +16.
  HUE: To adjust the color hue level on a scale of -9 to +9.
  SATURATION: To adjust the color saturation level on a scale of -9 to +9.
• HDMI
  Setting the options related to the HDMI.

The resolution of the video signals output from the player's HDMI OUT terminal is changed manually.

This player is designed for connection to HDMI-compatible devices. It may not operate properly if connected to DVI devices.

If the picture no longer appears after changing the setting, set it back to 720x480p.

Preference page

Noted: The preferences Setup menu is only available at stop mode.

• TV TYPE
  • To select your TV system among PAL, AUTO or NTSC.
• AUDIO
  • To select the dialog language.
  • If the selected language is not available on the disc, the disc's language will be used instead.
  • To change the dialog language during playback, press AUDIO on the remote control.
• SUBTITLE
  • To select the language of the DVD subtitles. Select "OFF" to turn off the subtitles.
  • If the selected language is not available on the disc, the disc's language will be used instead.
  • To change the subtitle language during playback, press SUBTITLE on the remote control.
• DISC MENU (menu language)
  • To select the language of the DVD menus.
  • If the selected language is not available on the disc, the disc's language will be used instead.
• PARENTAL
  Some DVD discs are equipped with a password function and are rated according to their content. The contents allowed by parental lock level and the way a DVD disc is controlled may vary from disc to disc. For example, if the disc allows, you could lock-out violent scenes unsuitable for children or you could lock out playback of the disc altogether.
  You cannot play DVD discs rated higher than the level you selected unless you cancel the parental lock function.
  The parental lock levels are equivalent to the following ratings.
  Level 1: KID SAFE
  Level 2: G
  Level 3: PG
  Level 4: PG13
  Level 5: PGR
  Level 6: R
  Level 7: NC 17
  Level 8: ADULT
• MPEG4 SUBTITLE
  If your MPEG4 (Xvid) video file includes subtitle file, use this to select your preferred subtitle language.
• DEFAULT
  Pressing ENTER with this function selected resets all settings to their initial factory state, except for parental level and password.

Password Setup Page

• PASSWORD MODE
  To turn the password mode ON/OFF.
• PASSWORD
  This option allows you to set or change the password.
  Use ▼, ▲ button to select "PASSWORD", press ► button to highlight "CHANGE", then press the ENTER button. Press the number buttons to input your 4-digit password until to "OK" (If the password has not been set yet after you purchase this unit, it is "1369").

SAFETY INSTRUCTION

ATTENTION: To reduce the risk of electric shock, do not remove the cover or back. There are no user serviceable parts inside the unit. Refer all servicing to qualified personnel.

The lightning flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam. Class 1 laser product.

IMPORTANT SAFETY PRECAUTIONS

SAFE USE OF YOUR EQUIPMENT

Here are a few tips to help you do this:
READ this instruction manual before you attempt to use the equipment.
NEVER fit make shift stands or legs with woodscrews. Use only approved supports and fasteners specially designed for the equipment.
NEVER let anyone, especially children, push objects into holes, ventilation slots or any other opening; this could result in fatal electric shock!
ALWAYS disconnect the Car power adaptor when you are not going to use the unit for a long period of time.
ENSURE that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are properly made in accordance with the instructions given. Switch off the main supply when making or changing connections.
CONSULT your dealer if you are ever in doubt about the installation, operation or safety of your equipment.
DON'T continue to operate the equipment if it is damaged in any way or if it does not function normally. Disconnect the Car power adaptor and consult your dealer.
DON'T leave equipment switched on when it is unattended unless it is part of it's normal function to operate in your absence, for example a video cassette recorder with timed recording facility.
LISTEN to headphones at moderate volume levels; high volume levels can permanently damage your hearing.

• Car power adaptor is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To be completely disconnected the apparatus from supply mains, the car power adaptor of the apparatus shall be disconnected from the mains socket outlet completely.
• Never use a power adaptor that is damaged, route power lead in a safe manner and make sure it is not subjected to trapping or pinching. If the power lead is damaged refer to a qualified service agent.
• Place the unit on a flat and even surface.
• Do not restrict the air flow of the unit by placing it in a place with poor air flow, by covering it with a cloth, or by placing it on carpeting.
• To avoid magnetized, do not place the unit near speaker or magnet.
• Do not use this unit in direct sunlight or leave the unit in a closed automobile (or yacht, etc) where it would be exposed to high temperatures above 40°C.
• It also should not be placed in temperatures less than 5°C or greater than 35°C.
• No naked flame sources such as lighted candles should be placed on the AC adaptor and main unit.
• Do not use the unit immediately after transportation from a cold place to a warm place, condensation problem may result.
• The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• The use of apparatus in moderate climates.
• The apparatus should not be exposed to dripping or splashing.
• Ensure a minimum distance of 5cm around the apparatus for sufficient ventilation.
• Do not place objects filled with liquids, such as vases, on the apparatus.
• The marking plate is located on the back of unit.
• Attention should be drawn to the environmental aspects of battery disposal.
• Do not throw batteries in fire!
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• Excessive sound pressure from earphones and headphones can cause hearing loss.
• Under the influence of electrical fast transient or/and electrostatic phenomenon, the product may malfunction and require user to power reset.

MAINTENANCE

Cleaning

Be sure to turn the unit off and disconnect the car power adaptor before maintaining the unit.

• Use a soft, dry, clean cloth. Regularly dust the vents at the back or sides.
• Using solvents, abrasive or alcohol-based products risks damaging the appliance.
• If an object or liquid enters inside the appliance, unplug it immediately and have it checked by an authorized engineer.

Note on disc

• Do not use irregular shape CDs (example: heart-shaped, octagonal ones). It may result in malfunctions.
• Do not place more than one disc in the disc compartment.
• Do not try to open the disc compartment during playing.
• Do not touch the lens. Doing so may cause malfunction.
• If there is a scratch, dirt or fingerprints on the disc, it may cause tracking error. Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out. Don't store discs in places with high temperatures or high humidity, they can become warped. After playing, store the disc in its case.

Important Note

• Before transporting the unit, remove the disc from the disc compartment.

TROUBLE SHOOTING

No power.

• Make sure that the unit is turned on.

The remote control does not function.

• Make sure the infrared remote sensor is not blocked.
• Point the remote directly at the infrared remote sensor on the unit.
• Replace the battery in the remote with a new one.

Very little or no sound is coming from a DVD.

• Make sure that the unit is turned ON.
• Make sure the unit is not paused. Press .
• Make sure the unit is not in fast-forward or fast-reverse mode. Press .
• Make sure that the connections are correct.
• Make sure the MUTE function is not on.

The player does not start playback

• Insert the disc with the printed side facing you.
• Check that the disc can actually be played by this device.
• Check that the disc's regional code matches the player's regional code. This player's regional code is 2.
• Clean the disc.

The picture is not clear.

• The DVD is dirty. Gently clean the disc.
• The disc is scratched.
• Please adjust the TV's brightness and contrast in LCD mode.

Picture is not displayed.

• Set HDMI Resolution properly for the connected device
• Connect the cable securely (all the way in).
• With some cables, 1080p video signals will not be output.
• If the cable is damaged, replace it with a new cable.
• The picture may not be output properly when a DVI device is connected.

No response from the unit

• Disconnect the AC adaptor from the AC outlet and reconnect it again.

Forget Password

If you forget your own password, enter "1369" to reset.

Specifications and appearance are subject to change without notice.

NEW ONE S.A.S
10, Rue de la Mission, 25480 Ecole Valentin, France
