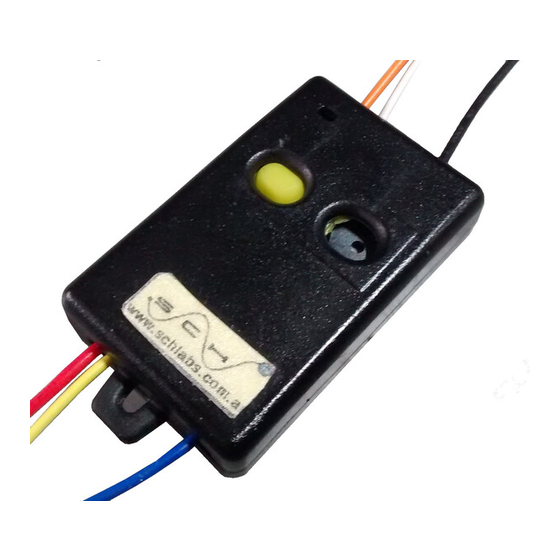

Summary of Contents for SCHlabs LPA 4
- Page 1 LPA 4 0802.00 Model: Rev doc: 00 Install and usage Manual General Warnings Page 2 Working Page 2 Working only door Page 2 Crepuscular working Page 2 Setup Page 2 Install Page 3 Relay Install Page 4 Specifications Page 5...
- Page 2 - To use the automatic mode always use a Relay - Put the optional light sensor in a way to get the Daylight from outside. NOTE 1:SCHlabs decline all responsibility for any damage to people or things caused by the manipulation of the devices or wires.
- Page 3 Open Door: In case of open door with the engine OFF, and the lights ON the sound is instantaneous. To use this function is required that the cable is connected, and the door must be closed at least one time. The sound are a “beeps”...
- Page 4 Press the button, will see that the blue led blink. Release the button when the number of times that tle led blink match with the function to change: Function Only Door Normal mode or Only door Parking Light Instant or delayer Shut down Crepuscular Normal or crepuscular mode Sunlight level Keep the actual light as reference...
- Page 5 Operating voltage 9V~16V Consumption Operating temperature -20~70°C Sound 87dB Relay output Open drain 0.5A Time to the warning 40 seconds Parking light Available by setup...
- Page 6 -I can cancel the circuit? Yes, simply active Only door -Is mandatory connect the door? NOT, is not required, the circuit detect automatically that is not connected and cancel the open door warning. This continue until detect the door closed -Sound permanently? NOT, transmit a short series of beeps and repeat 4 times.
- Page 7 The guarantee will be recognized for a period of 3 (three) months from the purchase, the defects of construction and materials being covered. If, during the guarantee period, the product is defective, SCHlabs will take charge of the repairs or substitutions required by the product. They will be made at the SCHlabs facilities and the shipping costs will be borne by the customer.
- Page 8 Read about other SCHlabs products TAU2: Engine temperature meter and protector HMP1: Throttle body, pedals and multi sensor tester HRR2: IAC, injectors and stepper motors tester GNC2: NGV controller WIR-SOL: Solar climate controller SCHlabs https://www.schlabs.com.ar Tel: 54 11 4639-5945 El Araucano 1389 Cap Fed - Argentina.
