Summary of Contents for Xo BAR PRO

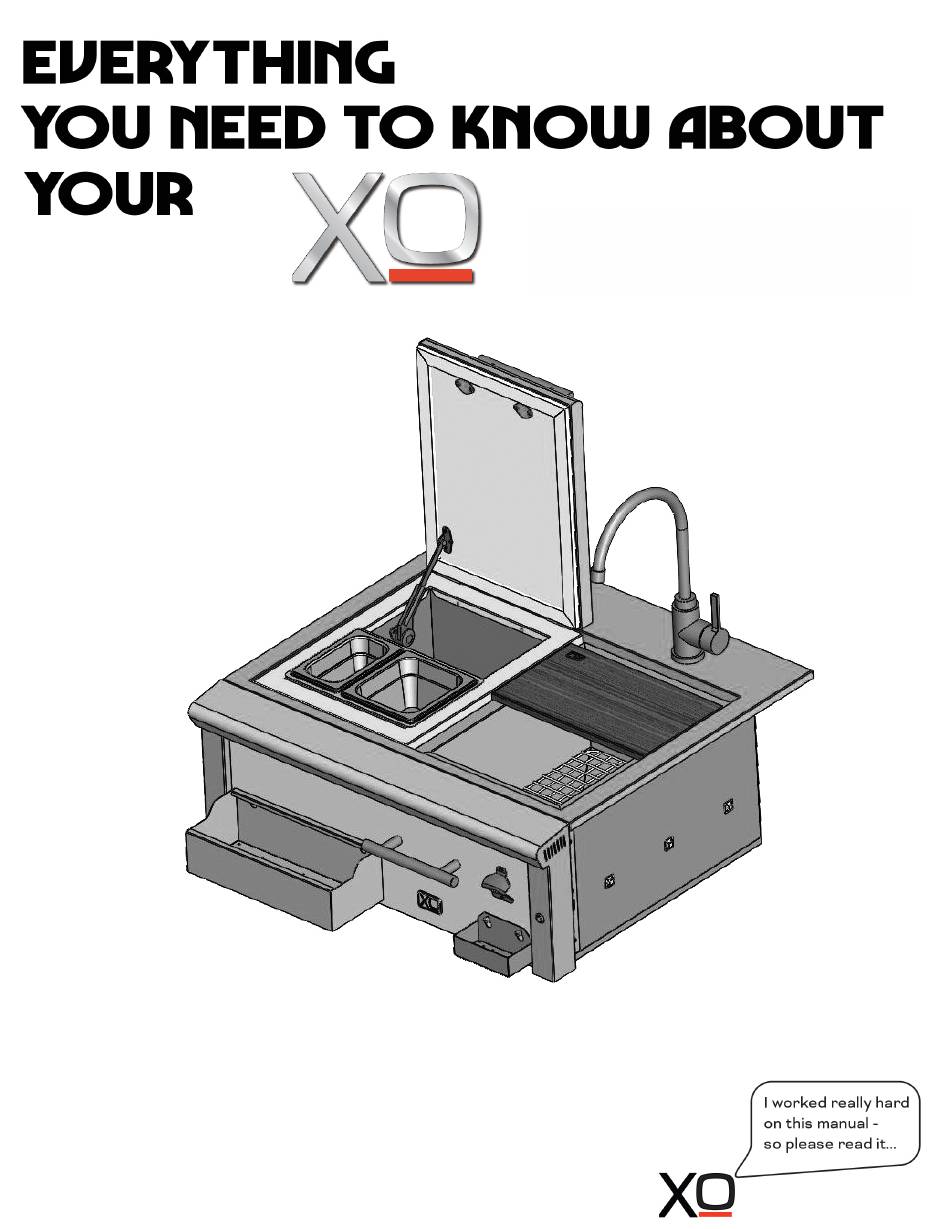

- Page 1 Professional "BAR PRO" BARTENDER STATION CARE & USE / INSTALLATION RESIDENTIAL USE ONLY...
-
Page 2: Exterior Dimensions
Exterior Dimensions INSTALLATION PREPARATION The XO sinks are designed for outdoor use only. The sink should be installed by a qualified liscensed technician in accordance with all local plumbing and building codes. Prepare the counter top by cutting the appropriate cutout dimensions There must be a minimum of a 1/2”... - Page 3 INSTALLING THE DRAIN ASSEMBLY INSTALLING THE DRAIN ASSEMBLY For ease of installation we recommend that the drain assembly be installed before installing the sink into the counter top. 1. Remove the drain assembly from the box and identify the following parts: a.
- Page 4 INSTALLING THE XO SINK 1. Install the faucet into the top faucet opening on right back of the sink. 2. Carefully place the sink into the cut out on the counter top. Push the sink back until there are no gaps in the back and the bull nose contacts the front face of the cabinet.
- Page 5 INSTALLING THE XO FRONT COMPONENTS 1. Located the supplied hardware bag 2. Install the two stainless steel shoulder screws into the right hand side inserts of the front panel. 3. Carefully lower the bottle holder on the newly attached shoulder screws.
-
Page 6: Exploded View/Parts
EXPLODED VIEW/PARTS XOG30BARPRO... - Page 7 LED LIGHT ELECTRICAL SCHEMATICS...
- Page 8 PRODUCT DIMENSIONS/CUT OUT DIMENSIONS (IN BLUE)
-
Page 9: How To Order Repair Parts
Parts can be ordered through XO directly. Warranty Parts Warranty parts will need a proof of purchase and can be ordered by contacting XO appliances.. Proof of purchase is required for warranty parts. All parts listed in the Parts List have a Part Number. When ordering parts, first obtain the Model Number and Serial Number from the name plate on your equipment. - Page 10 Before contacting XO Appliance, please make sure you have the following information: • Model number • Date of purchase • Proof of purchase by the original owner • Serial number The serial number can be located on the rating plate which is located on the left side of the...
- Page 11 XO Stainless Steel Gas Grills & Gas Burners XO warranties this XO stainless steel gas grill to be free from defects at the time of purchase and for the periods specified below. The grill must be installed by a qualified technician and must be maintained and operated safely, in accordance with the instructions in the owner's manual.
- Page 12 XOG30BARPRO we are cooking 1-800-966-8300 Visit our web site at www.xoappliance.com...
