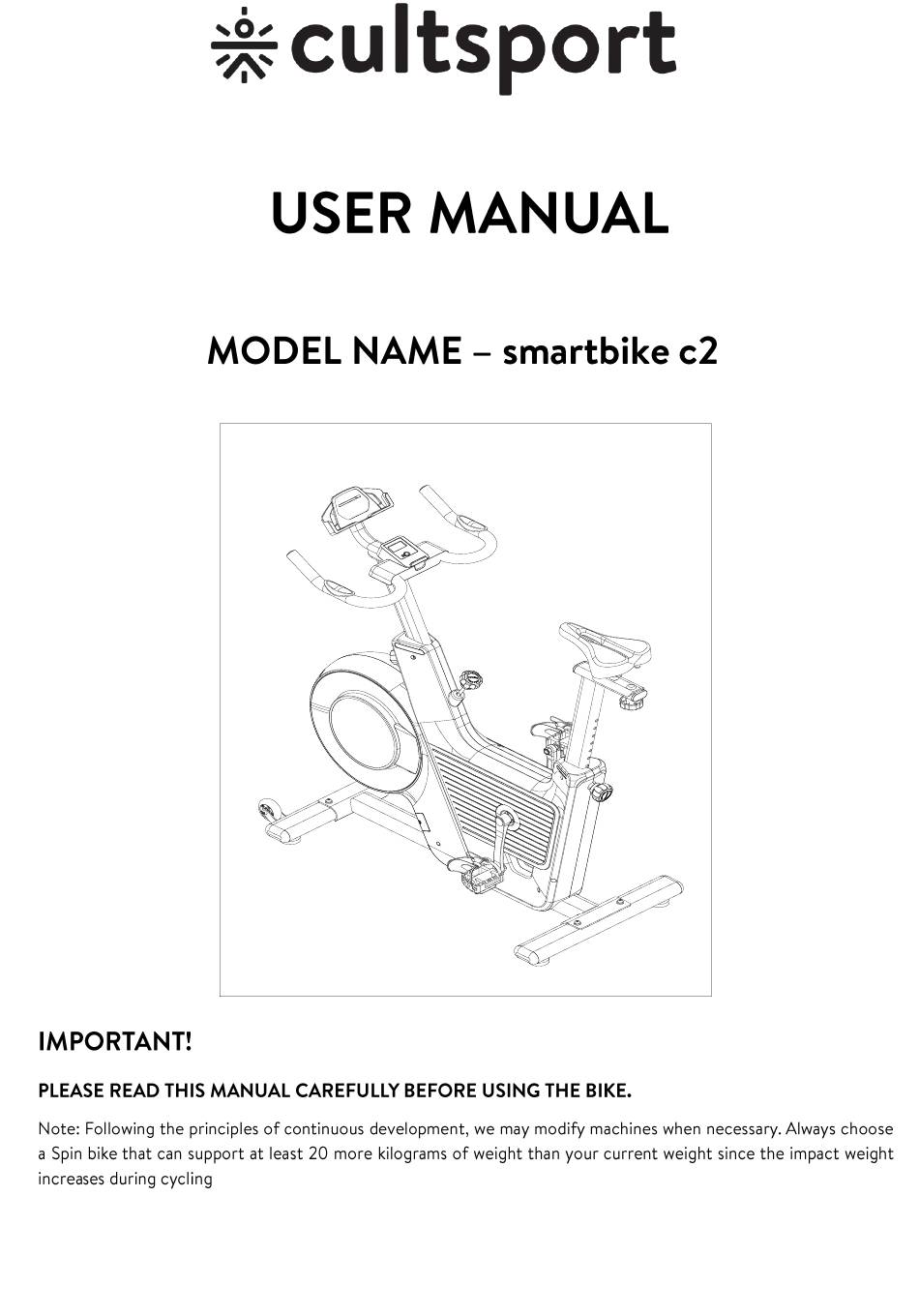

cultsport smartbike c2 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the smartbike c2 and is the answer not in the manual?

Questions and answers

Summary of Contents for cultsport smartbike c2

  • Page 2: Safety Guidelines

    SAFETY GUIDELINES 1. It is important to read this entire manual before assembling and using the equipment. 2. Once assembled fully, please inspect to make sure all hardware parts such as bolts, nuts and washers are positioned correctly and tightly secured. 3.Always inspect the safety chain guard that protects the moving parts of the bike to be in safe and good order.

  • Page 3: Exploded Drawing

    EXPLODED DRAWING 32 33 42 43 4039 32 33 51 47 4241 4548 58 59 62 70 59 57 68 69 62 A S6 1PC B S13-14-15 1PC C S17-S19 1PC...

  • Page 4: Parts List

    PARTS LIST Description Specification Qty. Description Specification Qty. Main Frame Bolt M6*12*S10 Front Stabilizer washer d6*Φ16*1.5 Handlebar Post Bearing bracket Φ72*11 Seat Post Bearing 6201 Handlebar Fixing plate t1.5*56*76*Φ30 Rear Stabilizer Screw M6*10*Φ12 IPAD Holder Idle pulley Φ42*Φ35*Φ12*24 Bolt M8*90*20*S6 Axle Φ19*43.5*φ12*19.5 Ball Cap...
  • Page 5 Flywheel 6*φ350*36 16*16*8*M8 Axle 24*103*2-Φ12*9.7 Brake located 16*16*16*φ8.3 Brake located 16*16*16*φ6.2 Magnetic Plate M6*H14*S10 Seat slider M6*H5*S10 Screw ST4.2*16*Φ8 Screw M5*5*Φ10 Sensor plate Spring 1.2*Φ11.2*135*N29 Sensor wire Cover L 956*718*81 Handle pulse wire Cover R 956*718*81 Trunk wire Cover φ384*30.5 Battery 1.5V AAA Battery cover...
  • Page 6 ASSEMBLY INSTRUCTIONS #21 M8*20*S6 4PCS A S6 1PC #22 d8 4PCS #10 d8*Φ16*1.5 4PCS STEP1: Remove the bolt (21), spring washer (22) and washer (10) from the packing tube using the spanner(A). Please reserve them for pending step. The packing tube can be discarded. Remove the bolt(21),spring washer(22)and washer(10) from the rear stabilizer using the spanner(A).Please reserve them for pending step.
  • Page 7 figure A figure B Attach Left Pedal (23L) to Left Crank (71L). Turn the Left Pedal (23L) counter-clockwise with the hand until it is tight, then use Spanner (B) to securely tighten. Secure the nut(20L) to left crank with the spanner(C) as figure A.
  • Page 8 figure A STEP 2： Remove the seat post (4) from the main frame (1). Then insert the seat post (4) into the main frame (1) by turning a direction. Secure the seat post(4) with knob(27) once in the suitable position show as figure A. 18 d10*Φ30*2.5 1PC 19 M10*Φ58*32...
  • Page 9 Secure the seat (17) to the seat post (4) in the main frame (1). Adjust to the suitable position, then tighten them with washer(18) and knob(19). #12 M10*35 2PCS #13 d10 2PCS #14 M10*H9.5*S17 2PCS S17-S19 1PC figure A STEP 3： Connect the sensor wire (96) and trunk wire (98), and put the thread end into handlebar post (3).
  • Page 10 #8 M8*90*20*S6 1PC #9 S13 #10 d10 #11 M8*H7.5*S13 1PC #16 ST4.2*16*Φ8 2PCS B S13-14-15 1PC figure A figure b STEP 4： Remove the bolt (8), washer (10) and nut (11) from the handlebar (5) using the spanner (B). Pass the (7) through the handlebar (5) with bolt (8).
  • Page 11 Install or change the battery B S13-14-15 1PC Install the battery： 1. Take out the 2 x AAA batteries for later use. 2. Insert the 2xAAA into the battery holder in the console (15). Pay attention to the negative and positive electronic before the install. 3.

  • Page 12: Tension Adjustment

    ADJUSTMENTS & USAGE GUIDE TENSION ADJUSTMENT: Increasing or decreasing the tension allows you to add figure A variety to your workout sessions. There are stepless resistance. As shown in figure A, the resistance of the left rotation gear decreases while that of figure B the right rotation gear increases.

  • Page 13: Balance Adjustment

    forward or backward to the desired position, then tighten the Knob (19) clockwise. (Figure B). HANDLEBAR ADJUSTMEN： To adjust the height of Handlebar (5), loosen counter-clockwise and pull out the Knob, then slide figure A the Handlebar Post (3) up or down to the desired height figure B (Figure A).
  • Page 14 Stretch exercise No matter how you do sports, please do some stretch at first. The warm muscle will extend easily, so, warm up yourself with 5-10minutes, Then We suggest the following stretch exercise, five times.10counts for each time or longer, do this exercise again after sports.
  • Page 15 Customer Care Support • Write to us: hello@curefit.com • Website: www.cult.fit • Contact No. 1800-572-6402/1800-572-6303...
