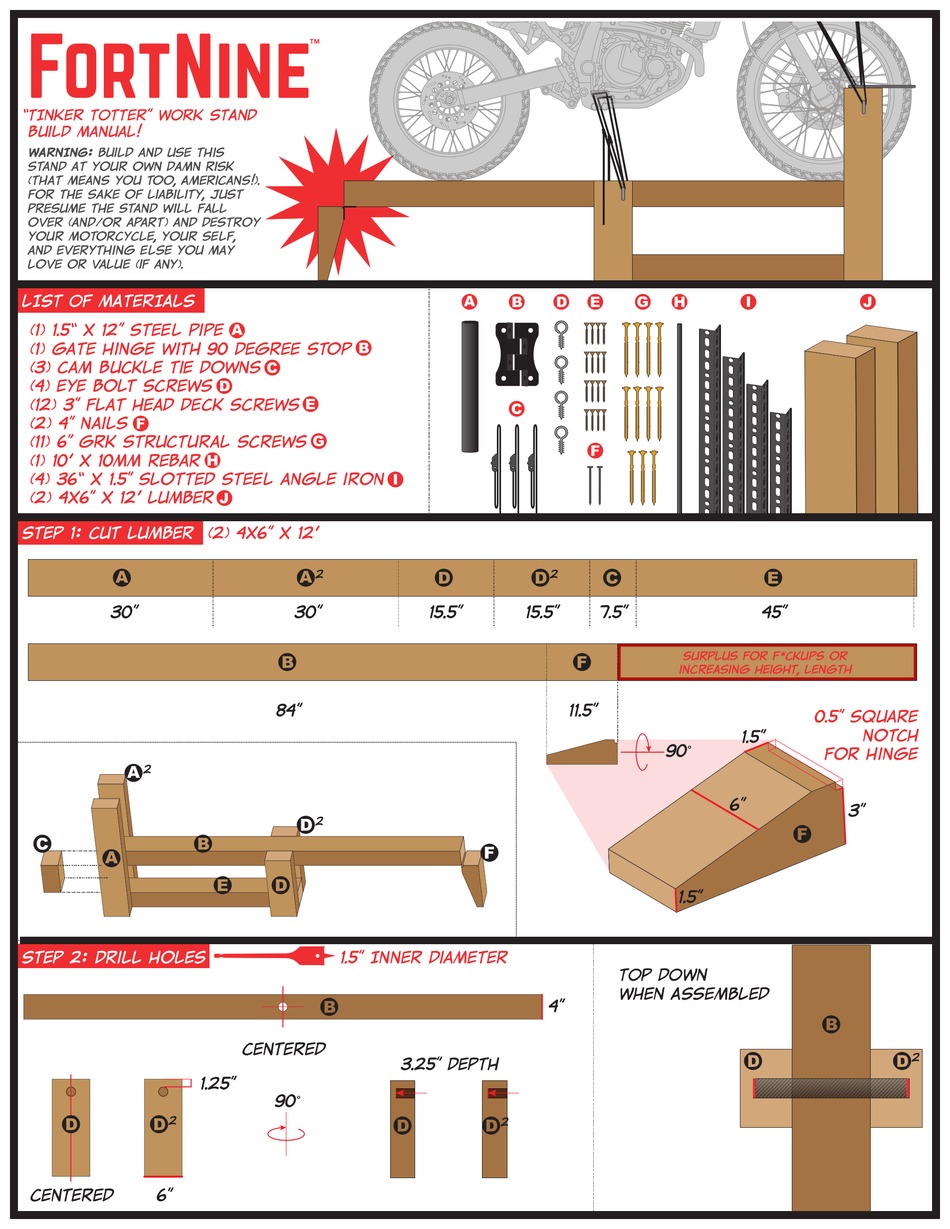

"TINKER TOTTER" WORK STAND
build manual!
WARNING: Build and use this
stand at your own damn risk
(that means you too, Americans!).
For the sake of liability, just
presume the stand will fall
over (and/or apart) and destroy
your motorcycle, your self,
and everything else you may
love or value (if any).
LIST OF MATERIALS
(1) 1.5" x 12" steel pipe
(1) gate hinge with 90 degree stop
(3) cam buckle tie downs
(4) eye bolt screws
(12) 3" flat head deck screws
(2) 4" nails
(11) 6" grk structural screws
(1) 10' x 10mm rebar
(4) 36" x 1.5" slotted steel angle iron
(2) 4x6" x 12' lumber
Step 1: cut lumber
30"
Step 2: drill holes
1.25"
centered
6"
(2) 4x6" x 12'
30"
84"
1.5" Inner diameter
centered
90 ˚
15.5"
15.5"
11.5"
4"
3.25" depth
7.5"
45"
surplus for f*ckups or
increasing height, length
1.5"
90 ˚
6"
1.5"
TOP DOWN
WHEN ASSEMBLED
0.5" square
notch
for hinge
3"
