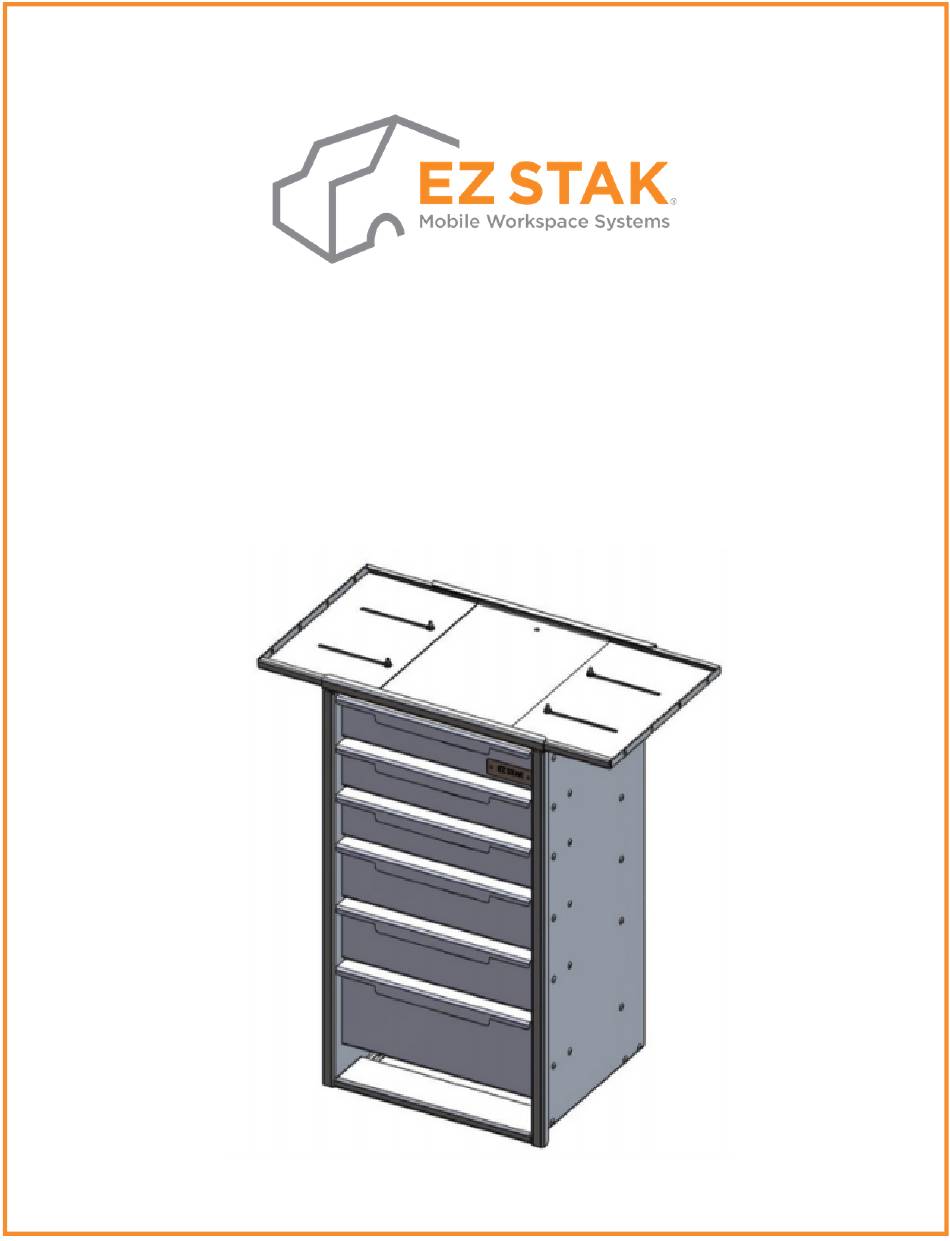

U S E R G U I D E
500LBS Heavy-Duty Removable Drawer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDR-32-25-18-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for EZ STAK HDR-32-25-18-100

  • Page 1 U S E R G U I D E 500LBS Heavy-Duty Removable Drawer...
  • Page 2 Cabinet, making it time consuming to install the Unit, cleaning the drawers etc. To counter this problem, EZ STAK has come up with a unique solution, which makes the drawers removable while still using the 500lb ball-bearing slides. So, in addition to the Expandable top, you can also take the drawers out, making installation and cleaning easier.

  • Page 3: Table Of Contents

    Table of Contents Before you get started ........................4 General Information, Caution and Warning ................4 Tools, PPE, and Fasteners required .................... 4 Inside the Package ........................4 Know your product ......................... 5 500 lb. removable drawers’ features ..................5 Product numbers and Drawers configuration ................

  • Page 4: Before You Get Started

    • Never take the drawer out when filled beyond 51 lb for product and operator’s safety. Unload the items first and then take out the drawer. • If you are unsure at any point during your interaction with the product, contact EZ STAK INC. customer care at the contact details provided in this document.

  • Page 5: Know Your Product

    PART NUMBER DIMENSIONS (H - W - WEIGHT DRAWER CONFIGURATION D) INCHES (lb) HDR-32-25-18-100 32-25-18 3 - 4", 2 - 5", 1 - 7" HIGH DRAWERS HDR-33-18-16-100 33-18-16 3 - 4", 2 - 5", 1 - 7" HIGH DRAWERS HDR-33-26-16-100 33-26-16 3 - 4", 2 - 5", 1 - 7"...

  • Page 6: Sample Product Drawing For Reference

    Sample Product Drawing for Reference:...

  • Page 7: Installation Instructions

    Installation Instructions 1. Remove screws on both sides of the bottom 2 drawers and take the drawers out. 2. Align unit in position and use ¼” self-drilling screws and washers to fasten the unit to the floor. Ensure screws will not damage fuel tank, fuel lines, brake lines, wiring, etc.
  • Page 8 3. Put back the drawers and fasten screws on both sides of drawer. 4. Expand the adjustable top panels by loosening the bolts in the slots and use ¼” self- drilling screws to fasten them to the wall using the mounting holes in the panels. Retighten the bolts in slots to secure the panels.

  • Page 9: Operation Instructions

    Operation Instructions To open drawers Push up the black latch handle underside the drawer handle and open the drawer. To close drawers Completely push the drawer inside the cabinet until you hear both latches on each side click, indicating that the drawer is secured. Be cautious while closing the drawers, operate with one hand while keeping the other hand clear.

  • Page 10: Maintenance Instructions

    EZ STAK products are warrantied for the lifetime of the product under the original owner: from the purchase date until the day they are taken out of service. For as long as you own the EZ STAK product, it is covered by our warranty.

  • Page 11: Disclaimer

    Please feel free to reach out to us for any query at: EZ STAK INC. 20400 Old Rome State Road Watertown, NY 13601 P: 315.595.3300 E: info@ezstak.com Thank You You can also download Soft copy of this User Guide online at https://ezstak.com/service-body-drawer-systems/...
