Summary of Contents for TEKSENS TUS Series

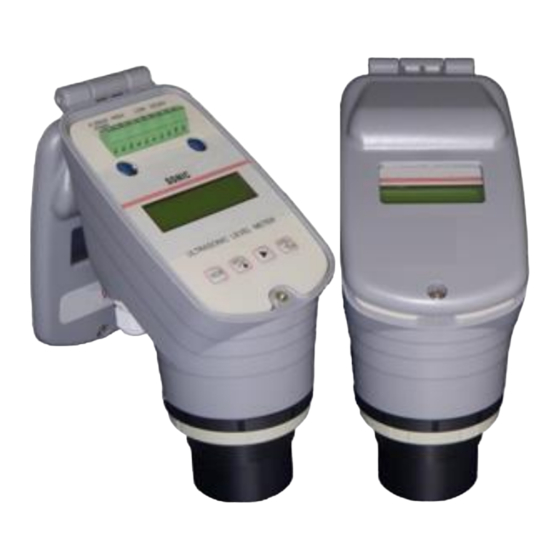

- Page 1 Integrated Ultrasonic Level Meter Operation Manual...
- Page 2 1. Overview TUS Series Two-wire ultrasonic level meter is a kind of Intelligent non-contact level meter. This product offers automatic power control, gain control, temperature compensation. Using advanced detecting and computing technology to suppress jamming signal, so as to improve measuring accuracy. This product can be widely used in measuring all kinds of liquid level and solid material level.
- Page 3 P-04 display content: display switch between distance and liquid level, display distance when “00” is set, display liquid level when “01”is set, factory debug model when “02” “03” is set, factory debug model is not recommended for field use P-05 filter time: the parameter is valid only if P-03 is set (level meter is under material level).
- Page 4 4. Dimension Range 5m(Liquid) 220mm M58x2 74mm 10m(Liquid) 220mm M66x2 74mm 15m(Liquid) 237mm M70x2 85mm 20m(Liquid) 237mm M70x2 85mm 5. Installation and Wiring Installation Easy installation by using thread and nut on sensor. Common installation methods are flange, rack, riser Flange Installation Rack Installation Riser Installation...
- Page 5 Outdoor Installation A mounting bracket is required for waterway and outdoor installation, as shown below: Probe should be installed vertical to the surface of liquid level or material level, as shown below:...
- Page 6 There should be no obstacles within 10ᵒ emission angle of ultrasonic to avoid error echo. Avoid direct sunlight, and make sure the probe temperature is the same as environmental temperature to achieve accurate measurement....
- Page 7 Probe should be installed vertical to the surface of liquid level or material level. When there is vibration on vessel wall，rubber gasket can be used between the jar and level meter to eliminate the influence of vibration. rubber gasket Installation with a nozzle or riser installation，confirm diameter D and nozzle length L, special debugging is required for manufacturer...
- Page 8 Wrong Installation Keep the highest liquid (material) Distractors below the sensor level from the blind area The probe should not be installed directly above the entrance of the water/material. Wiring...
- Page 9 LB hasn’t appeared in left upper corner of the main display interface, which may be caused by too small blind area value, you can try to increase blind area value. TEKSENS YEDPA D212 AS Atasehir IST/TR P: +90 216 660 12 77 -78 F: +90 216 660 12 79 info@teksens.com.tr...
