Summary of Contents for mogu FORESTA SYSTEM

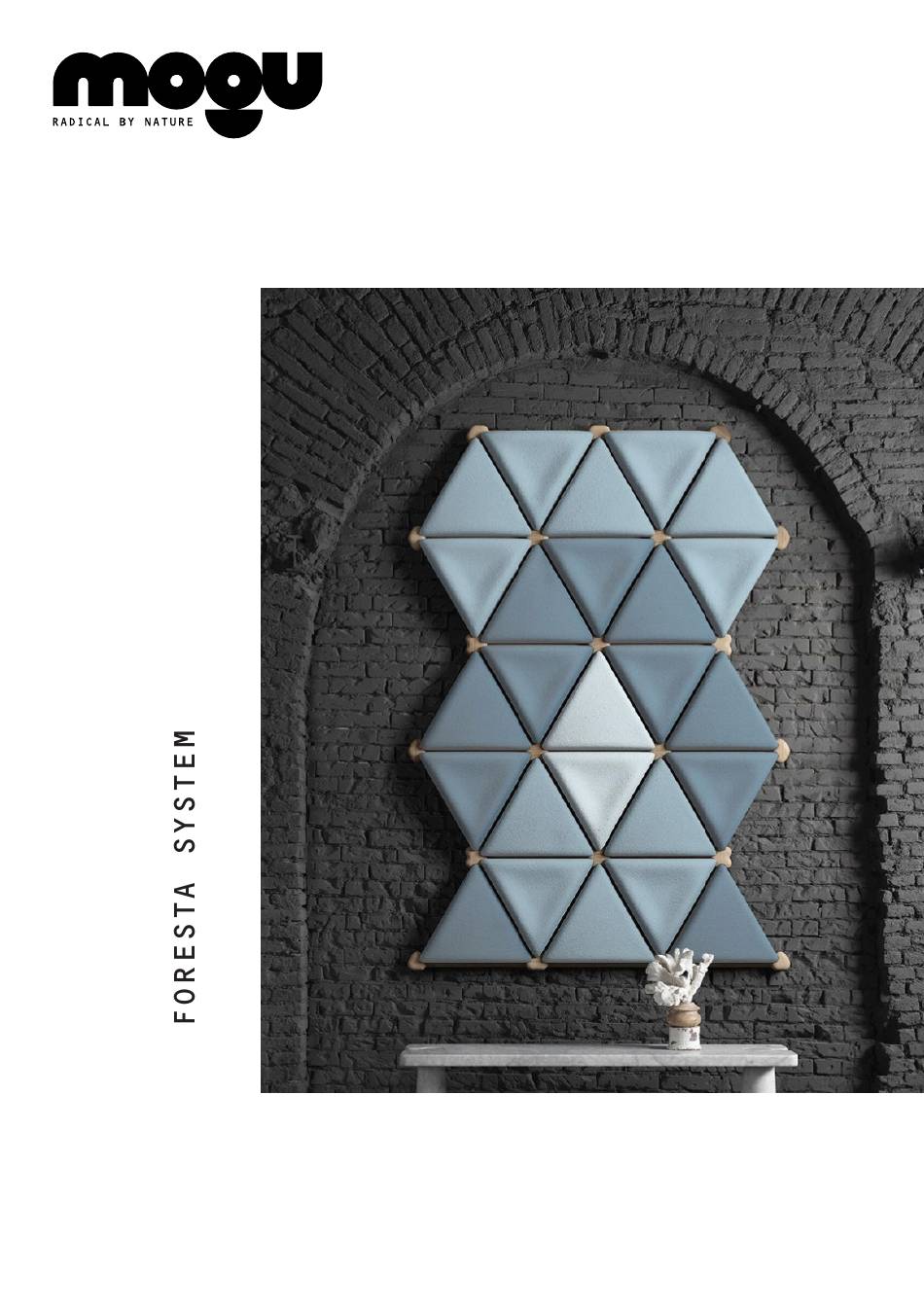

- Page 1 Installation guide mogu.bio...
-
Page 2: Table Of Contents
The FORESTA Acoustic system is born from the intention of bringing Nature back into the everyday’s spaces We are thrilled about your interest in Mogu FORESTA system. The whole system is based on biomaterials and we inhabit. Inspired by the unique sensation of walking through the woods, the system combines Nature’s... -
Page 3: Product Components
Product Components Overview Components The FORESTA system is based on a refined combination of wood batten (“branches”) and “nodes”. The wood battens are designed to be mechanically fixed to the wall, requiring a minimal amount of wall-perforations. The nodes simply hold onto the rails and, thanks to the integrated magnets, allow for an easy-to-mount approach in regard to the mounting of the ASPEN acoustic modules. -
Page 4: How To Design
The to Mogu’s unique colour palette, it is possible to choose from a range of colour themes featuring soft shades design of FORESTA valorises the infinite possibil ities given by digital fabrication and parametric modell ing, and variations of intensity , which is characteristic for natural environments. -
Page 5: Composition Examples
Composition Examples Small installation Large installation 3.8 m 9.3 m Medium installation 5.0 m mogu.bio mogu.bio... - Page 6 ExtraLarge installation 19.7 m mogu.bio mogu.bio...
-
Page 7: Foresta Structure
Branches System Each node of the system can hold a specific number of Mogu Aspen panel: node “N2” , for example, features n.2 As for the nodes, each branch of the system is designed to support a specific number of panels: “B4” , for magnetic lodging for the acoustic modules, while node “N6”... -
Page 8: Exploded Assembly
Repeat the same procedure with all branches, maintaining a distance of 39 cm among each other . Branch Tools needed: level, driller , fastener Components: branches, perimetral plugs, L screws and anchors. 39 cm 1x Screw S Plug central 39 cm Magnet Wood plug 39 cm 39 cm mogu.bio mogu.bio... - Page 9 *** Mogu Acoustic panels, such as the Aspen modules featured in FORESTA, may present natural dimensional variations. Although Mogu carries out a stringent qual ity control to ensure a dimensional variation of +/- 0.25 cm, some variations can happen. To avoid difficulties in installation, we suggest to avoid fixing the Section view central nodes (N3 / N6) and rotate them sl ightly to accomodate the sl ight differences of each triangle.
-
Page 10: Care & Maintenance
FORESTA system until step 3, then simply peel the product’s surface with a clean towel. off the adhesive and stick to the wall among each rails the strip of felt provided with your FORESTA system. Tools needed: n/a... - Page 11 Contacts Mogu was founded on the belief that it is possible to employ Nature’s intelligence to radically If you have questions disrupt the design of related to the installation everyday products, seeking of Mogu FORESTA system, a finer balance between...
