User's Instruction Manual

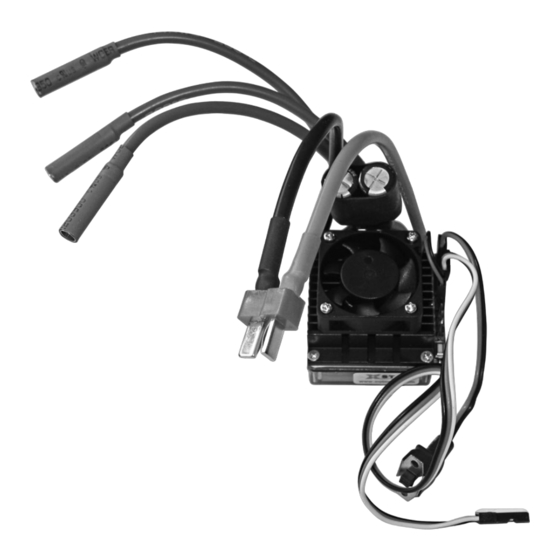

BL Electronic Speed Controller
(For 1/8 scale buggies and trucks)

Advertisement

loading
Need help?

Need help?

Do you have a question about the H101 and is the answer not in the manual?

Questions and answers

Summary of Contents for DHK Hobby H101

  • Page 1 User’s Instruction Manual BL Electronic Speed Controller (For 1/8 scale buggies and trucks)

  • Page 2: Electronic Speed Controller

    Continuous Battery cell Dimension Weight P r o gr a m P r og r am Model# current (mm)LxWxH by card by key Li-XX Ni-Mh 3A/5.5V H101 2-4S 4-14S 47x41x29 (switch) 3A/5.5V H104 2-4S 4-14S 47x41x29 (switch) 3A/5.5V H107 100A...
  • Page 3 2.Setting Throttle Range Throttle range should be setup when a new transmitter is being used. "SET" key is to be used for throttle range. Turn off the ESC > Switch on the transmitter > Press and hold the "SET" key > Switch on the ESC >Push the throttle trigger to the top point of forward within two seconds >...
  • Page 4 3. Run mode: Three options, One, Two and Two2. The default is Two2. i) One: The vehicle can go forward and brake. It will brake continuously if the throttle trigger is placed at backward zone. ii) Two: This is a bi-directional mode. The vehicle goes forward when the throttle trigger is located at the forward zone.
  • Page 5 Step 1 Enter program mode 1.Turn off the ESC, Switch on transmitter, keep throttle stick to the neutral position. 2.Press and hold the "SET" KEY, Switch on the ESC. 3.Wait for 4 seconds, a music tone like "♫ i3i3" should be Step 1 emitted , which means program mode is entered.
  • Page 6 Step 3 Set item value After entering the items, you will hear several tones and green LED flashes in loop,Press the “SET” KEY within 2 seconds after one tone is heard, you will hear “♫ 5 6 5 6”. This indicates that the value is set and saved. Hold the SET KEY for 3 seconds, you will go back to step 2, which allows you to continue the setup.

  • Page 7: Wiring Diagram

    Wiring diagram BLACK E S C F O R C A R MOTOR >50 ohm >50 ohm HEAD BACK Light Light BAT+ BAT- RECEIVER BATTERY SWITCH Throttle Diagram Top Point of Backward Backward and Brake Zone Neutral Point Neutral Zone Forward Zone Top Point of Forward Top Point of Forward...
  • Page 8 DHK TECHNOLOGY CO.LTD. E2 Blk, Wan'feng Western Ind Zone, Heyi, Shenzhen, China 518104 Phone:+86 755 33895639 Fax:+86 755 33895635 email: inquiry@dhkhobby.com www.dhkhobby.com...
