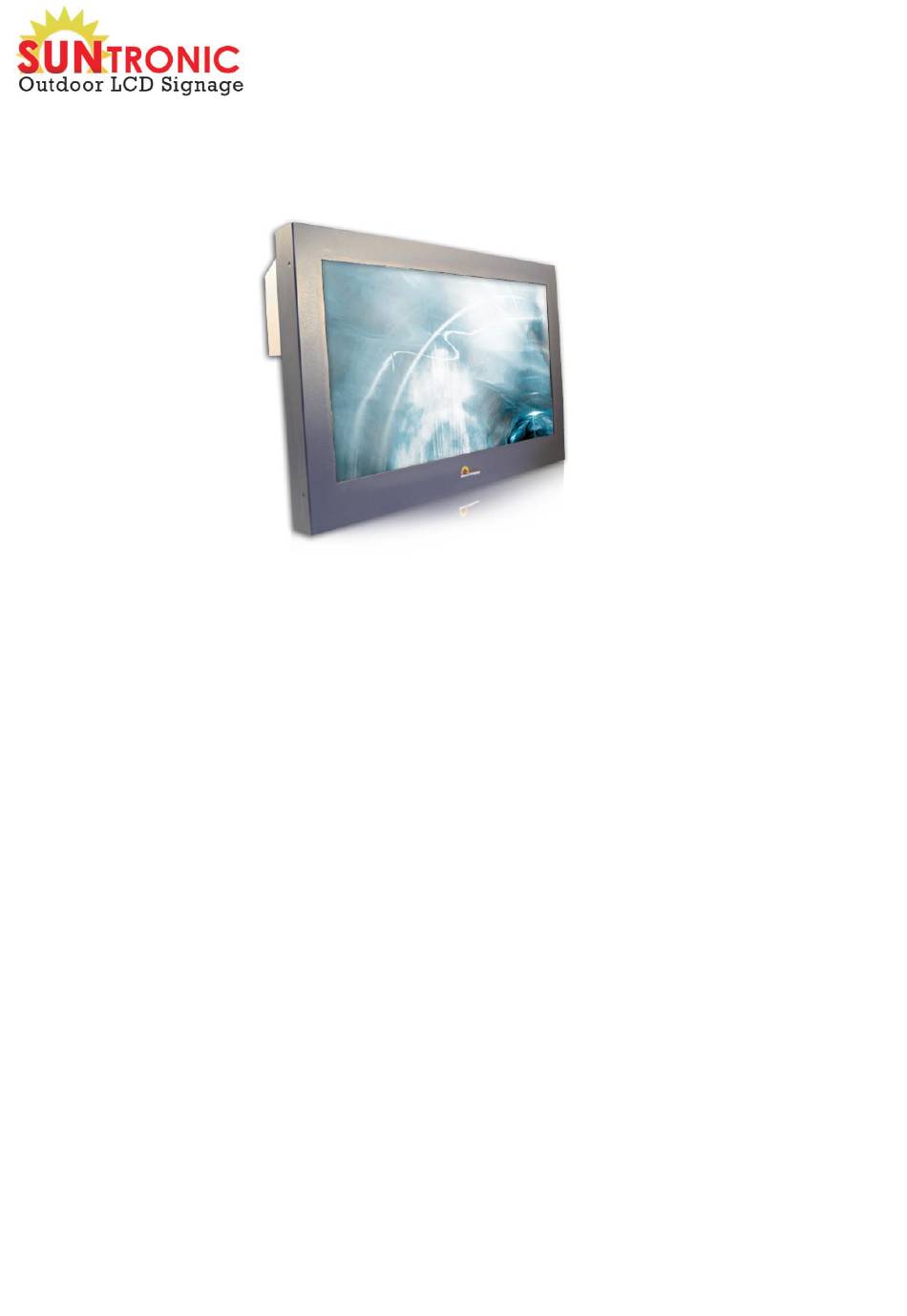

U6500L(110V USA Only)

All Weather Semi-Outdoor High Brightness LCD

Please read this Instruction book before using your LCD monitor. We wish you many

hours of pleasure from your new Outdoor LCD monitor.

CHANGES

Suntronic provides this manual 'as is' without warranty of any kind, expressed or implied, including

but not limited to the implied warranties or merchantability and fitness for a particular purpose.

Suntronic may make improvements and/or changes to the product(s) and/or the program(s) described in

this publication at any time without notice.

This publication could contain technical inaccuracies or typographical errors.

Changes are periodically made to the information in this publication; these changes are incorporated

in new editions of this publication.

otherwise be recorded, transmitted or stored in a retrieval system without the prior written consent

of Suntronic.

Trademarks

Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights

of their respective holders. All brand and product names mentioned in this manual serve as comments

or examples and are not to be understood as advertising for the products or their manufactures.

USER'S MANUAL

LIST

- 1 -

www.SuntronicLCD.com

Version 2.6.8

Table of Contents

Need help?

Do you have a question about the U6500L and is the answer not in the manual?

Questions and answers

Summary of Contents for Suntronic U6500L

Page 1 Outdoor LCD monitor. CHANGES Suntronic provides this manual ’as is’ without warranty of any kind, expressed or implied, including but not limited to the implied warranties or merchantability and fitness for a particular purpose.
Page 2: Table Of Contents
Table of Content 1. Important for customers············································3 2. Incoming Inspection & Product Handeling ···························4 3. SAFETY PRECAUTIONS & SERVICING ····································5 4. FEATURES AND BENFITS···············································8 5. SPECIFICATION AND SIZES············································9 6. U Series Outline and intro ··········································10 7. INSTALLATION OF MINI SHIELD········································ 12 8.
Page 3: Important For Customers
Notice for Users For customers (AC110/220V) IMPORTANT During the first time installation to connect our LCD to the electric distribution network, installation person must be cutting OFF all electricity supplied in advance: by switching down the fuse breaker inside the host Power Utility Box (NOT TURNING OFF the power outlet switch). While live AC power grid is always ready within your electric networks, we recommended there are no others transfer-switches attached or improper devices installed within the same network;...
Page 4: Incoming Inspection & Product Handeling
An immediate claim MUST be filed with the freight carrier and an inspection requested. Retain all packing materials. Suntronic cannot assume responsibility for Consignee's failure to file a timely freight claim.
Page 5: Safety Precautions & Servicing
The surface of the LCD and Enclosures might be hot. WARNING: Suntronic Outdoor LCDs sold within USA and Canada are in 120V version only. For 220V requirement sold in other countries, please contact the local sales for further details about their regional requirement.
Page 6 Do not tilt the screen more than 45 degree in any direction  Do not turn landscape U6500L into portrait model. And do not turn portrait U6500P into Landscape  This LCD monitor should not be built in or enclosed in any way, heat build up will reduce the life of the monitor.
Page 7 • DO NOT install the SUNTRONIC display inside of Hazardous Areas and/or Explosives Areas. • DO NOT leave the Suntronic display unattended while cover opened and connected to the mains • Before operating your SUNTRONIC display, please read this manual thoroughly, and retain it for future use.
Page 8: Features And Benfits
Lamps inside the LCD contain mercury inside. Please follow regulations or rules regarding disposal established by local authority for its disposal. In case of opening of the Suntronic display, cover the front frame to prevent over-heating of the TFT panel when exposed directly to the sun. A sheet or service tent will suffice.
Page 9: Specification And Sizes
Available in Portrait Model – Most outdoor them perfectly suited for all seasons. LCD is Landscape only, but Suntronic U In 24/ 7 working conditions the series unique design will remain water heaters not required, since proof/Rain proof even is in portrait model.
Page 10: U Series Outline And Intro
LCD. In areas where dust or salt air Prevalent, it is recommended that the  Filter be cleaned regularly Environmental Rear View Hot Air Path Cold Air Path Back WARNING: Don’t put these U6500L into a confined area to prevent overheat and void warranty www.SuntronicLCD.com - 10 -...
Page 11: Installation Of Mini Shield
Installation of Mini Shield Monitor with Shield Monitor with Shield Disassembled U Series Cable Installation Guide 1. Orient unit to have access to the bottom as pictured below. 2. Unscrew the two retaining brackets as shown using a Philips screwdriver. www.SuntronicLCD.com - 11 -...
Page 12 3. Remove the filter to expose the Input Panel. 4. Connect the power cable and the video cable (VGA, HDMI, RCA) to the inputs on the unit. Turn unit power switch to ON, but make sure power cable is not connected to live power. 5.
Page 13: Placement And Installation Guidelines
Placement and Installation Guidelines Suntronic LCD are twice as bright as indoor LCD. The sun, however delivers more than 30 times the brightness. Therefore, it is important that you do not place the TV where the screen faces direct sunlight.
Page 14: Common Problem-Solving Approach
Common problem-solving approach  Maintenance about LCD have no signal after power on. Please check the power socket switch is turned on or not? And check all cablings are connected or not? Such as: power cabling, AC input cabling, AD board power cabling, screen back light cabling, LVDS cabling.
Page 15: Osd Function
OSD Function www.SuntronicLCD.com - 15 -...
Page 16 Remark: Items marked  have sub menus. Exit the OSD menu to save the setting chosen Video Input and Brightness Controller/ Fan Thermostat Audio output Fan Thermostat. Main Power Dail to Zero switch external keeping the Fan speakers ON all the time Mini Display Port...
Page 17: Air Filter
Air Filter need to clean once a month www.SuntronicLCD.com...
Page 18 TROUBLESHOOTING General A general guide to troubleshooting a flat panel display system it is worth considering the system as separate elements, such as: > Controller (jumpers, PC settings) > Panel (controller, cabling, connection, panel, PC settings) > Backlight (inverter, cabling, backlight tubes) >...
Page 19 SPECIFICATIONS Compatible with 1920x1200, 1920x1080, 1680x1050, 1600x1200, 1440x900 Panel compatibility 1366x768, 1280x1024, 1024x768, 800x600 & 640x480 resolutions of TFT LCD panels. A specified BIOS and some factory adjustment may be required for individual panel timings. No. of colours Up to 3 x 10 bit providing 1.06 billion colours. Panel power DC 3.3V, 5V, 12V, 18V Panel signal...
Page 20 APPENDIX I – SIGNAL SUPPORT MODE TABLE ARGB (P1) PORT : Mode Resolution Horizontal Vertical Sync Mode freq [KHz] freq [Hz] [MHz] 720x400 T_70 28.322 31.469 70.087 Digital Separate Sync 70Hz T_70 720x400 28.322 31.469 70.087 Sync On Green 70Hz V_60 25.175 31.469...
Page 21 X_60 1024x768 65.000 48.363 60.004 Sync On Green 60Hz X_60 1024x768 65.000 48.363 60.004 Composite Sync 60Hz X_70 1024x768 75.000 56.476 70.069 Digital Separate Sync 70Hz 1024x768 X_70 75.000 56.476 70.069 Sync On Green 70Hz X_70 1024x768 75.000 56.476 70.069 Composite Sync 70Hz X_75...
Page 22 COMPOSITE, S-VIDEO & COMPONENT VIDEO INPUT PORT : System Resolution Horizontal freq Vertical freq [KHz] [Hz] NTSC 720x480i 15.7 NTSC 4.43 720x480i 15.7 720x576i 15.6 PAL M 720x576i 15.6 SECAM 720x576i 15.6 www.SuntronicLCD.com...
Page 23 Appendix II – RS-232 control protocols RS-232 Serial control (Baud rate 2400, 8 bits, 1 stop bit and no parity) Physical connection : Controller side Connector Computer side interface : CN8 Mating Connector interface : Serial port connector : JST XHP-6 Mating connector : DB9 Female Mating face of CN8 Mating face of RS-232 DB9 Male...
Page 24 Commands to implement switch mount control buttons Function Command Description Remark Menu button 0xf7 Menu button pressed Button equivalent Oxfa Select-down button pressed Button equivalent Select-down button Select-up button Oxfb Select-up button pressed Button equivalent Right/+ button Oxfc Right/+ button pressed Button equivalent Left/- button Oxfd...
Page 25 “?” “A” – 16:9 “B” – “C” – 16:10 2.35:1 “D” – 2:1 OSD H position 0x90, Set osd_hpos = OSD horizontal position. nnn | “+” | “-” | value/increment/decrement “r” | “R” | Range : “0””0”-“F””F” Reset “?” Default : “8””0” Query OSD V position 0x91,...
Page 26 “0” | “1” | “2” | “3” | “r” | “0” “1” (Composite, S-video Auto/NTSC/PAL/SECAM Auto. “R” | “S” | “s”| “?” “2” and Component Only) Reset NTSC_M_358 PAL_N_443 “3” - SECAM Video State Query “4” - NTSC_M_443 “5” - Query “7”...
Page 27 “I” – Auto Picture Setup Runtime counter Runtime = nnnnn. Oxa1, nnnnn runtime counter value = nnnnn | “r” | “R” | (* 0.5 hour) Reset Query PIP window brightness. brightness 0xa2, window brightness Range : “4””E”-“B””2” Default : nn I“+” I“-” I “r” | control value/increment/decrement Reset...
Page 28 nnn | “+” | “-” | value/increment/decrement PAL(576i) / NTSC (480i) : “r” | “R” | Reset Min : 0x30 0x30 0x30 (Default) “?” Query Max : 0x30 0x46 0x30 Vertical Size 0xb0, Scalar vertical stretch. Vertical Size Aspect Size = nnn | “+”...
Page 29 temperature nn 1“+” 1“-” 1 value/increment/decrement “r” | “R” | Range : “9””C”-“F””F” Reset “?” Default : “E””C” Query “m” Maximum query “n” c – reference by Color Minimum query “i” , ss, c, nn Set, Source, Temperature Temperature Group, value ss - reference by Input main “o”, ss, c Query, Source...
Page 30 ”?” “S”|”s” – Backlight Status Query “S” | “s” “0” – Off Color 0xe2 Off/ “0” | “1” | “2” | “3” | “1” – Blue Only Monochrome Blue Only/ | “4” | “5” | “6” | “2” – Red Only mode selection Red Only/ “R”...
Page 31 temperature. selected colour nn 1“+” 1“-” 1 channel for the selected colour temp. = c – reference by Color “r” | “R” | temperature value/increment/decrement Reset Temperature “?” Query ss - reference by Input main “m” Maximum query Minimum query select(0x98) “n”...
Page 32 “?” – Light Detector On/Off Query “S”|”s” Detector On “R” | “r” “S” –Light Detector Value Query 0x00~0xFF Light Detector On/Off Query Light Detector Value Query | “s” Custom Sizing Oxef, “0” – Overscan Custom sizing selection : Overscan “0” | “1” | “2” “1”...
Page 33 “0” – fail. Auto-calibration 0xc5 Start auto-calibration of gain of the “1” – successful. RGB amplifier. 0xc6, “0” | “1” Freeze frame Unfreeze / freeze frame “0” – unfreeze. “1” – freeze. Soft Power On/Off 0xc8, “0” – Turn off the LCD power and backlight. Soft power “0”...
Page 34 “1” - successful. 0xd7 Saved Calibrated Saving all parameters to user default default value 0xd8 “1” - successful. “0” - not Load Calibrated Loading all parameters to user successful “E” – Checksum default default value Error “0” – Normal Mode “1” – Wide Screen Mode 0xd9, Wide Screen Mode...
Page 35 The following commands for sending texts by using RS-232 command. Function Command Description Acknowledge (if enabled) Send Line “S” = “0x53 or 0x73” “S” – Send Command “LL” – 0xF0, “Text” – |”S” |”LL”|”TEXT”| Send command Line Number “0x0A” Character “0x0A” – End of Return “1”...
Page 36 Left offset “O” = “0x4F or 0x6F” Set Left “O” – Left Offset Command “SSS”- 0xF0, Offset Value (pixels) “nnn”- Return |”O” |”SSS”| Offset command Return “nnn” Value(pixels) “SSS” “0x30,0x30,0x30~ 0x33,0x46,0x46” Offset Value (Rang 000~3ff) e.g Set Left Offset = 100 pixels ( 0x64 (HEX)) RS232 Code: “0xF0 0x4F 0x30 0x36 0x34”...
Page 37 Display Mark Command Function Command Description Acknowledge (if enabled) Send Display Mark 0xF1, ”S” | “S” = “0x53 or 0x73” ASCII “S” – Send Command “Text” ”0x21” “0x21,0x40,0x60,0x7E” – Character Return “ 0x31” “1” - successful. ”0x40” ”0x60” | ”0x7E” Return “1” Send Display Mark RS232 Code: “0xF1 0x53 0x21”...
Page 38 Appendix III – DV remote control unit work for S1920DV Remote control unit (without DV logo silk screen printing) Remote control unit (with logo silk screen printing) BUTTON FUNCTION POWER BUTTON Soft power ON/OFF button. ATTENTION BUTTON Use combined with digit keys to enable/disable the IR function. “Attention”...
Page 39: Limited Warranty Statement
In the event that the part required for replacement is no longer in production and/or is obsolete, Suntronic will repair the unit with similar or like parts of equal value. If a similar or like part Is not available, a charge may be incurred to the owner for any upgraded part substituted.
