Summary of Contents for Teleco TVRSP868E02

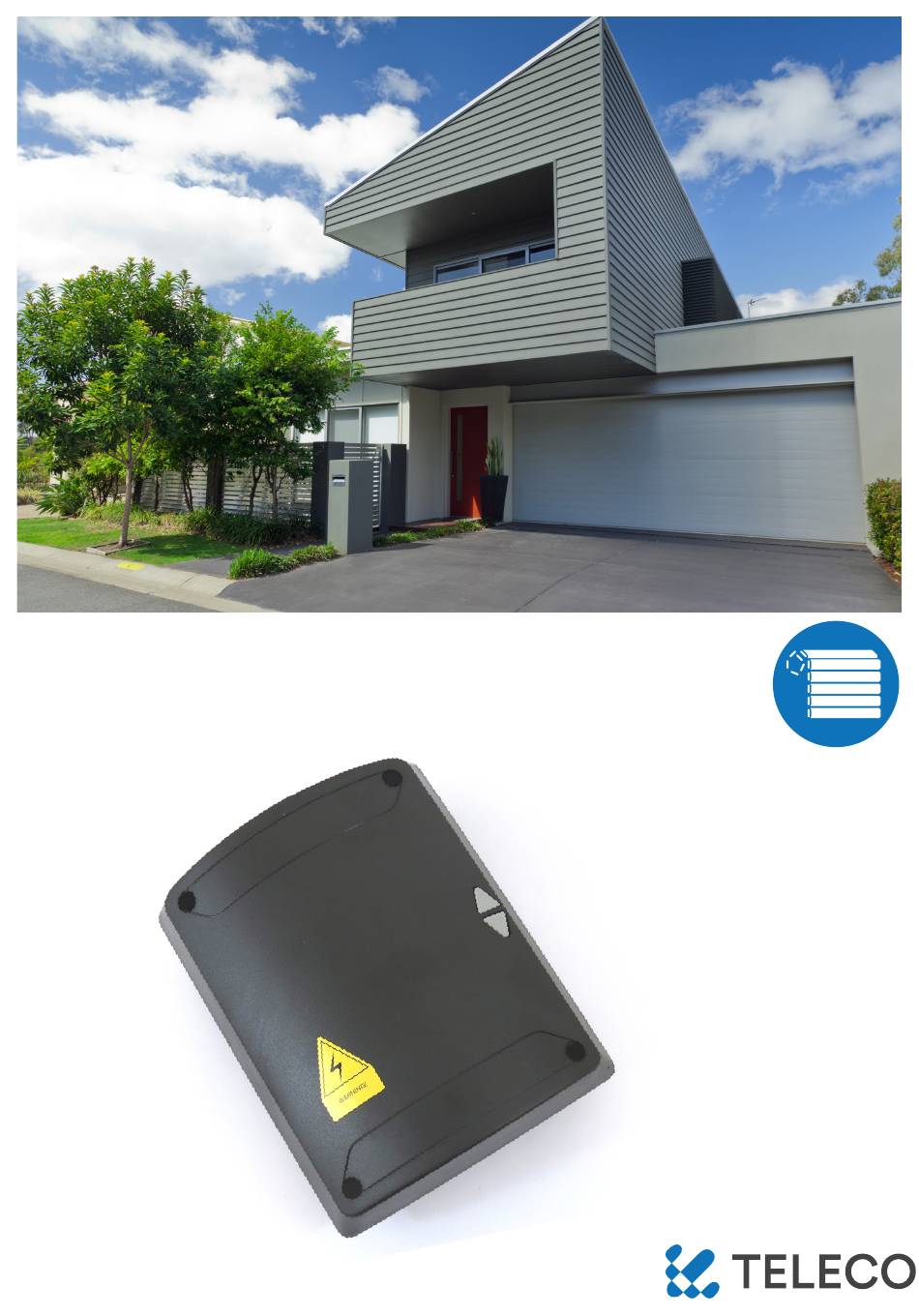

- Page 1 Control system for garage doors Installer’s instruction manual Product: TVRSP868E02 Doc: T899.01 Date: 19/03/2021...
- Page 2 INDEX 5. Transmitters deletion-----------------------pages 12 - 13 1. Product description--------------------------------page 3 5.1 Remote deletion of a transmitter 2. Installation-------------------------------------------pages 4 - 6 2.1 Mounting the product 6. Time setting----------------------------------page 13 2.2 Control Unit diagram 6.1 Auto close time setting 2.3 Electrical connections 7.
-
Page 3: Product Description
PRODUCT DESCRIPTION TVRSP868E02 Control unit with integrated radio receiver for the remote control of tubular motors up to 700W, with built-in limit switch, for rolling shutters and rolling doors. FEATURES CONNECTIONS & FUNCTIONING Compact plastic case with easy fixing Wired inputs for safety edge (both resistive 8K2 and infrared) -
Page 4: Basic Installation
INSTALLATION Basic installation Complete installation 1 - RSP control unit 1 - RSP control unit 2 - Tubular motor (240Vac) 2 - Tubular motor (240Vac) 3 - Hand transmitter 3 - Hand transmitter 4 - Wireless security keypad... -
Page 5: Mounting The Product
MOUNTING THE PRODUCT BOX DIMENSIONS MOUNTING SIDE OPENING THE COVER 80 mm 180mm 75 mm 145 mm 95 mm CONTROL UNIT DIAGRAM 1 - High voltage terminals 2 - Low voltage terminals 3 - 5A fuse 4 - Aerial connection 5 - Programming/command buttons 6 - Dip switches 7 - Status/alarm LED... - Page 6 ELECTRICAL CONNECTIONS High voltage terminals Low voltage terminals 240Vac Wired infrared/ Push- Emergency MOTOR Line IN 8K2safety edge button (TD) STOP (TB) 12 13 14 15 16 17 18 19 20 21 22 23 12 13 14 15 16 17 18 see pag.
-
Page 7: Functioning Mode
LIMIT SWITCHES CONFIGURATION AND DIRECTION CHECK P1+P2 Procedure only with hold to run commands. Warning: The safety devices are excluded! ACTIVATION 5 SECONDS TIMEOUT keep it pressed for 1s Within 5s from power ON (L1 and L2 are ON) Press together P1 and P2 for 3 times and keep them pressed for 1s The buzzer makes a long beep L1 and L2 turn OFF after 5s L1 and L2 flashes slowly Open the door (in hold-to-run mode) in order to set up the... - Page 8 EXCLUSION OF SAFETY EDGE IN THE LAST 5 CM OF THE CLOSURE P1+P2 In case of uneven floors, it could be necessary deactivating the safety edge in the last part of the closure (not more than 5 cm to comply with the standards) in order to avoid any accidental activation of the safety edge.
- Page 9 TRANSMITTERS & MEMORIZATION TRANSMITTERS 4 channel 3 channel 2 channel 1 channel 7 channel MEMORIZATION TYPE “A” TYPE “B” TYPE “C” OPEN (STOP) OPEN OPEN/STOP/CLOSE CLOSE (STOP) CLOSE OPEN/STOP/CLOSE OPEN (STOP) STOP OPEN/STOP/CLOSE CLOSE (STOP) OPEN/STOP/CLOSE OPEN OPEN/STOP/CLOSE Only for a 7-CH and 4-CH transmitter STOP OPEN/STOP/CLOSE OPEN/STOP/CLOSE...
- Page 10 RADIO CODES MEMORIZATION TYPE OF MEMORIZATION keep it continuous sound pressed Open-Stop-Close Press the button of the transmitter Open (Stop)/Close (Stop) relative to the code to memorize. intermittent sound C Open/Close/Stop/ SINGLE CHANNEL: DOOR STATUS REQUEST (ASK) In case of using bidirectional transmitters it’s possible to receive a feedback about the door status, shown DOOR STATUS REQUEST (“ASK”) by means of the transmitter’s LED: open door...
- Page 11 REMOTE MEMORIZATION OF THE FIRST TRANSMITTER Warning: The memory must to be empty in order to perform this procedure. The added transmitter will have the double-channel function (TYPE B). 30 SECONDS TIMEOUT 5 SECONDS TIMEOUT Press 1 time P3 button for 2s The buzzer emits a Press any button of the pair to memorize The buzzer emits a fast...
- Page 12 TRANSMITTERS DELETION P1+P2 This operation should be done using the button P1+P2. Please refer to the schematic diagram on capter 3 in order to localize the position on the board. In order to carry the transmitter memorization it is necessary use the P1+P2 buttons of the front cover, entering the “programming mode” first. ENTERING THE PROGRAMMING MODE keep it WARNING: always check that L1 and L2 are flashing before...
- Page 13 REMOTE DELETION OF A TRANSMITTER 5 SECONDS TIMEOUT to delete memorized Press 3 time P3 button of a memorized The buzzer emits an Press the button of the transmitter to delete The buzzer emits a intermittent sound within 5 sec. continuous sound transmitter and hold it for 2s AUTO - CLOSE TIME SETTING...
-
Page 14: Control Unit Reset
CONTROL UNIT RESET P1+P2 The following procedure configure all the parameters back to the factory settings. The reset doesn’t include the radio code deletion. Switch the control unit off. Press together P1 and P2, keep them pressed and switch the unit ON The buzzer makes one beep after 10s. -
Page 15: Other Possible Issues
TROUBLESHOOTING (WHAT TO DO IF...) Acoustic signals from the control unit Sequence Meaning Solution 1 costant beep (continuous or intermittent) Faulty control unit Replace the control unit - Set the limit switches - The thermal protection could be activated. Wait while the motor cools down. 2 beeps Motor problem - Check the motor connection... - Page 16 TELECO AUTOMATION OCEANIA PTY LTD ITALY FRANCE GERMANY BELGIUM AUSTRALIA Tel. +39.0438.388511 Tel. +33.(0)472.145080 Tel. +49.(0)8122.9563024 Tel. +32.(0)67561967 Tel. +61.(07)5502.7801 info@telecoautomation.com info@telecofrance.com info.de@telecoautomation.com info@telecoautomation.be info@telecoautomation.com.au This document is the property of Teleco Automation Srl, which reserves all reproduction and copyrights...
