Installation and Operating Instructions

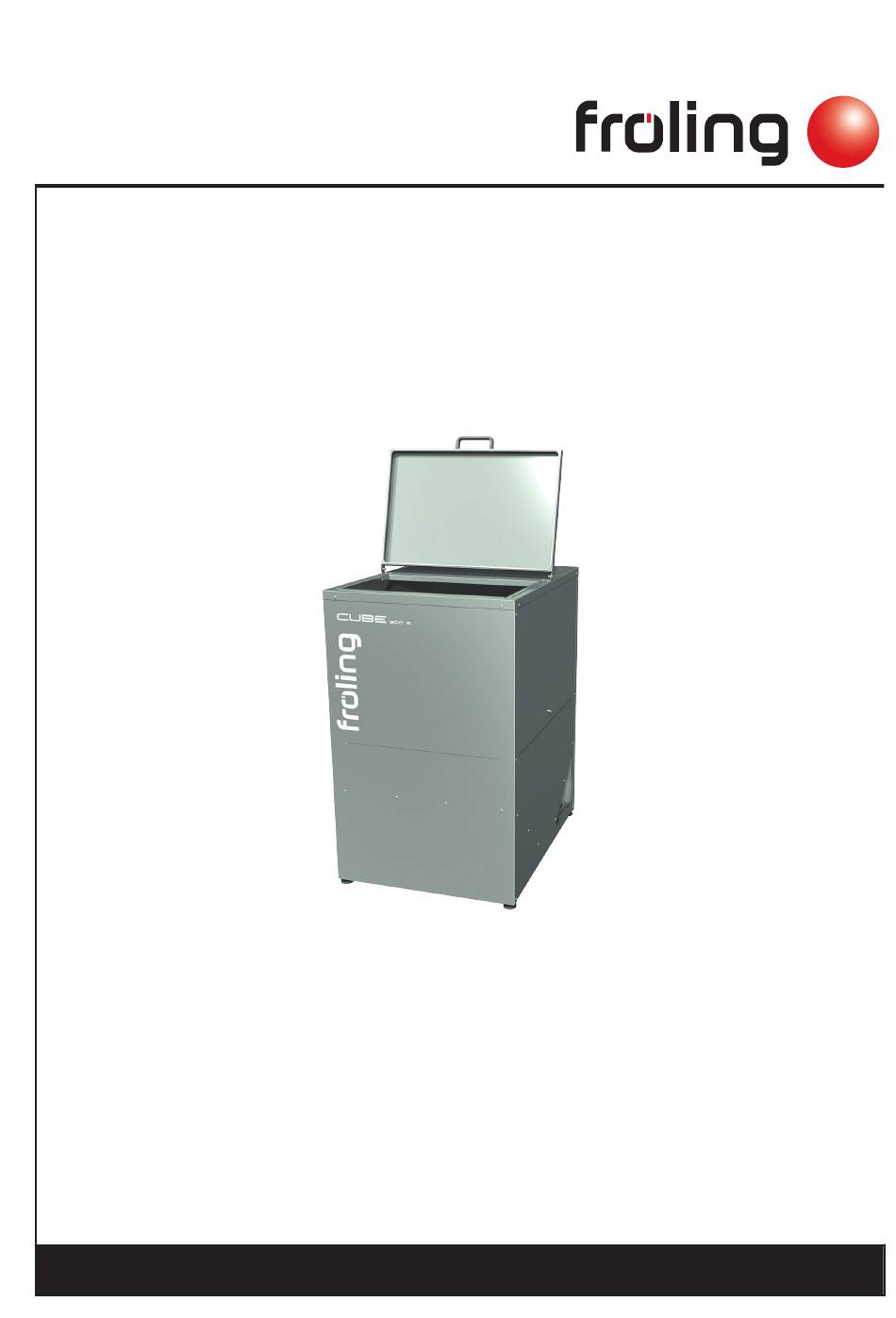

Cube 500 S
Translation of the original German operating and installation instructions for technicians and operators
Read and follow the instructions and safety information!
Technical changes, typographical errors and omissions reserved!
M1880016_en | Edition 30/05/2016
Fröling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com
Advertisement
Table of Contents
Summary of Contents for Fröling Cube 500 S
- Page 1 Installation and Operating Instructions Cube 500 S Translation of the original German operating and installation instructions for technicians and operators Read and follow the instructions and safety information! Technical changes, typographical errors and omissions reserved! M1880016_en | Edition 30/05/2016 Fröling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
-
Page 2: Table Of Contents
Regulations and standards for permitted fuels 1.4.3 Requirements at the installation site Technology Installation Materials supplied Positioning and connecting the Cube 500 S Configuring the discharge system in the controller Assembly information for hose lines 3.4.1 Potential equalisation Operation Prior to filling... -
Page 3: General
1.1 Permitted uses The Froling Cube 500 S is only to be used for storing wood pellets. Only use fuels specified in the “Permitted fuels” section. The unit should only be operated when it is in full working order. It should be operated in accordance with the instructions, observing safety precautions, and you should ensure you are aware of the potential hazards. -
Page 4: Qualification Of Assembly Staff
General Qualification of assembly staff 1.2 Qualification of assembly staff CAUTION Assembly and installation by unqualified persons: Risk of personal injury and damage to property During assembly and installation: ❒ Observe the instructions and information in the manuals ❒ Only allow appropriately qualified personnel to work on the system Assembly, installation, initial startup and servicing must always be carried out by qualified personnel: - Heating technician / building technician... -
Page 5: Regulations And Standards For Permitted Fuels
▪ The operating area must be designed in such a way that the container is easy to fill ▪ The system does not provide any light, so the customer must provide sufficient lighting in accordance with national workplace design regulations Installation and Operating Instructions Cube 500 S | M1880016_en... -
Page 6: Technology
Technology 2 Technology Pos. Description Value Cube height 1255 mm Total height when filling lid is open 1785 mm Cube width 760 mm Width of filling opening 664 mm Length of Cube incl. connections for suction hoses 996 mm Length of filling opening 435 mm Pellet suction line / return air line connection Ø... -
Page 7: Installation
Installation Materials supplied 3 Installation 3.1 Materials supplied The Cube 500 S is secured to the pallet with tension bars and delivered wrapped in plastic film. Cube 500 S 2 hinge bolt clamps 56 – 59 mm Edge protection profile L=970 mm... -
Page 8: Positioning And Connecting The Cube 500 S
The Cube 500 S can be placed against the wall on the sides where the suction tubes are not guided out. After positioning at the installation site: ❒ Align the Cube on the floor using the adjustable feet ➥... -
Page 9: Configuring The Discharge System In The Controller
System menu System System selection In the “Discharge” menu, the parameter “Universal suction, manually operated / bag silo” must be set to YES Feed system Universal suction, manually operated / bag silo Installation and Operating Instructions Cube 500 S | M1880016_en... -
Page 10: Assembly Information For Hose Lines
Installation Assembly information for hose lines 3.4 Assembly information for hose lines Please note the following with regard to the hose lines used in Froling vacuum discharge systems: ▪ Do not kink the hose lines! Minimum bending radius = 30cm ▪... -
Page 11: Potential Equalisation
➥ TIP: If stiffness occurs when trying to attach the hoses to the connectors, pour a few drops of water onto the pipe (do not use grease). ❒ Secure the hose line with a hose clamp Installation and Operating Instructions Cube 500 S | M1880016_en... -
Page 12: Operation
4 Operation 4.1 Prior to filling The Cube 500 S should be completely emptied at regular intervals before refilling, checked for fines and cleaned if necessary. Tip: Using a pellet deduster (Froling PST) reduces the amount of fines in the container and is, therefore, recommended.
