Certified to UL Subject 2728A
Pellet Fuel Burning Cooking Appliances
5024568
Silverbac
Wood PELLET Grill
SAVE THIS MANUAL FOR FUTURE USE

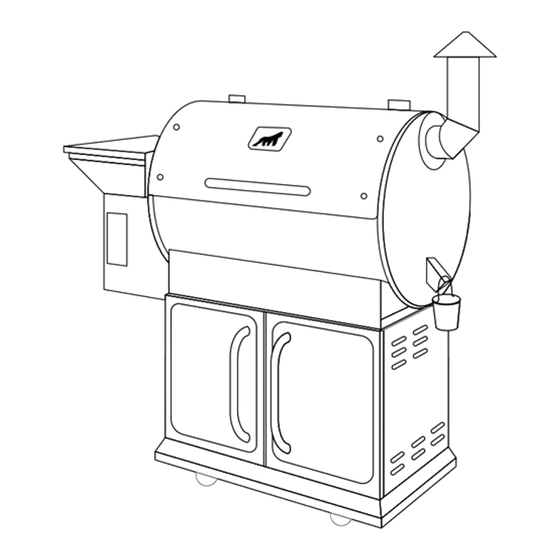

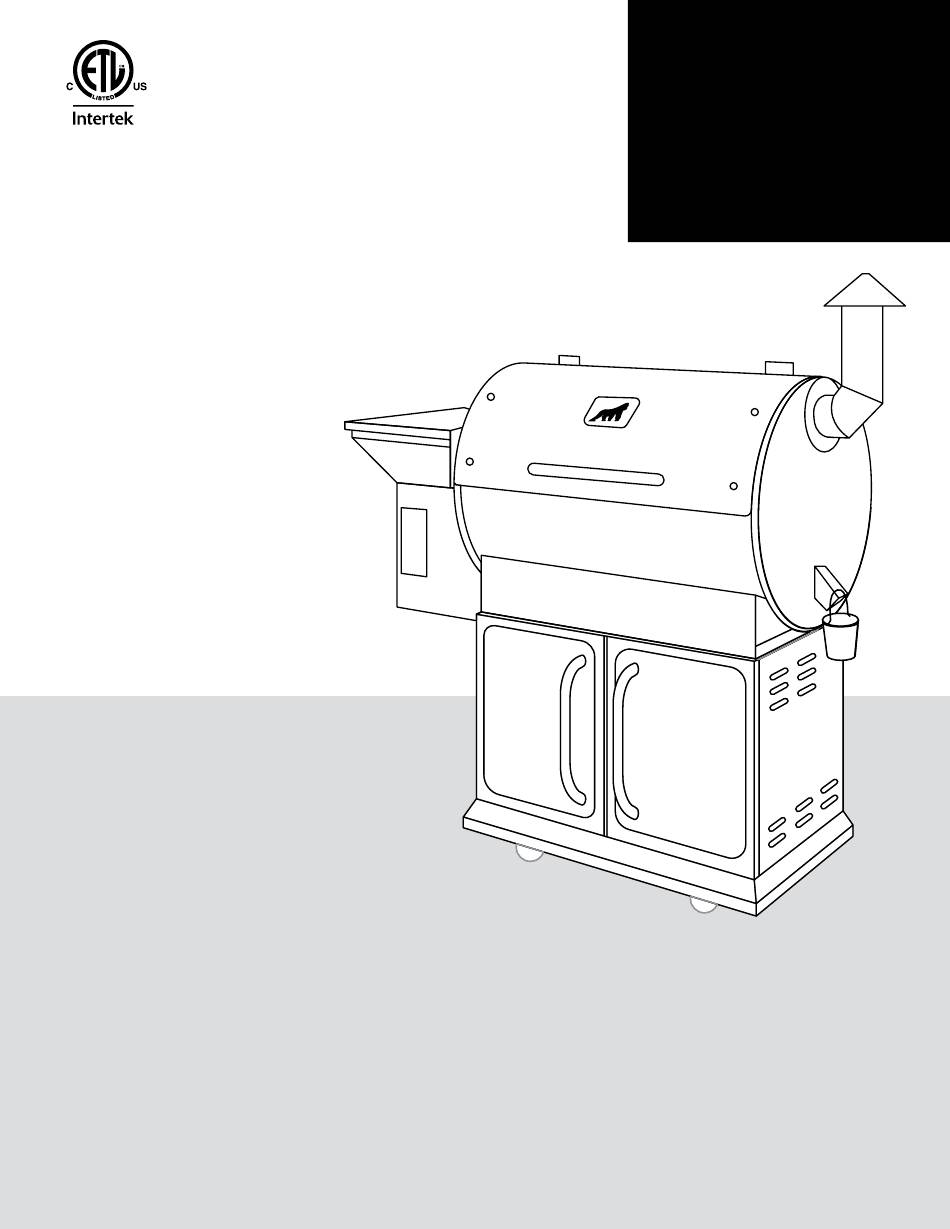

(SB-700-DW DOES NOT INCLUDE BASE SHOWN.)
A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED
CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS.
IT IS OF UTMOST IMPORTANCE THAT THIS PRODUCT BE
INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS.
Do not use accessories not specified for use with this appliance.
®
G r i l l a G r i l l s . c o m
SILVERBAC® WOOD PELLET GRILL
SB-700-CW
GR-500-A
SB-700-DW
Operators
Operation
Manual
Manual
OPERATION MANUAL
1
Advertisement
Table of Contents
Related Manuals for Grilla SilverBac SB-700-CW
Summary of Contents for Grilla SilverBac SB-700-CW
- Page 1 SB-700-CW GR-500-A SB-700-DW Certified to UL Subject 2728A Pellet Fuel Burning Cooking Appliances 5024568 Operators Operation Manual Manual Silverbac ® Wood PELLET Grill SAVE THIS MANUAL FOR FUTURE USE (SB-700-DW DOES NOT INCLUDE BASE SHOWN.) A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS.
-
Page 2: Safety Information
• Low blood oxygen levels can result in loss of Only use your Grilla Grill outside on a consciousness and death. noncombustible floor and away from combustible •... - Page 3 WARNING: Electrical shock can kill or result in serious injury. When using electrical appliances, basic safety precau- tions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: • Do not operate any appliance with a damaged cord •...
- Page 4 Just like a silverback is the proven and respected leader in a family of mountain gorillas, so too is Silverbac the patriarch of the Grilla family of smoker-grills. No confusing Silverbac with any of these flimsy me-too grills. Been there, done that.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Safety Information 2, 3 About Your New Silverbac ® Maintenance and Care Parts Diagram 8, 9 Assembly 10, 11, 12, 13 How to Operate Your Silverbac - Reference the Alpha Connect Guide (Supplement) Getting Started Operating Your Silverbac Additional Information Troubleshooting and FAQ Approved Fuel: Wood Pellets... -
Page 6: About Your New Silverbac
About your new silverbac ® Your Silverbac grill is state-of-the-art and built with The SB-700-CW and SB-700-DW both include the following many innovative features, including: components: • Smart Grill Controller w/ Wi-Fi capabilities • Pre-assembled grill body • 2– Stainless steel cooking grates •... -
Page 7: Maintenance And Care
Maintenance and care Here are some maintenance and cleaning tips to help keep your Silverbac running and operating smoothly. It may be helpful to refer to the “Parts Diagram” in this Operation Manual to locate the parts on your grill discussed below. -
Page 8: Parts Diagram
PARTS DIAGRAM I T E M D E S C R I P T I O N I T E M D E S C R I P T I O N Grill Body Lid Hinge Thermal Baffle Lid Hinge Bolt and Nut Hopper / Burner Assembly Lid Handle Base Cabinet (SB-700-CW only) - Page 9 Hopper / Burner Assembly (3): I T E M D E S C R I P T I O N Hopper Lid Blower - Silverbac Honey-Comb Grate Control Board Hopper Shell Lower Hopper Panel Auger Motor Auger Bushing Power Cord Hopper Gasket Cord Bushing SB Auger Screw...
-
Page 10: Assembly
ASSEMBLY ATTENTION: Stop here if you have purchased the Silverbac® AT Pro Cart Bundle. Refer to Pro Cart Assembly Guide, then complete steps 5-10 to finish setup. STEP 1 – Mounting the Body Frame Loosely secure Left Panel (37) on the Cabinet Base (47) with ¼-20 Phillips Bolt (48). As shown in FIG 1. Loosely secure Right Panel (42) on the Cabinet Base (47) with ¼-20 Phillips Bolt (48). - Page 11 STEP 2 – Positioning the Door Handles Align the holes in the Left Door (36) with the holes in the Handle (44). Place a Washer (50) on each 1/4-20 Hex Head Bolt (49) and tighten with a wrench. Repeat the former step to assemble the Right Door (43). As shown in FIG 5.
- Page 12 ASSEMBLY (cont.) STEP 5 – Attaching the Lid Handle Insert ¼-20 Hex Head Bolt (49) through Washer (50) and Lid (9) directly to the Handle (12) and Lid Handle Liner (13) and tighten up. Do not over tighten the bolt. As shown in FIG 8. STEP 6 –...
- Page 13 STEP 8 – Positioning the Drip Pan Position the Drip Pan (6) with the short bent leg set above the small ledge next to the RTD Probe End (14). The longer notched leg of the Drip Pan (6) should be facing downward and lay into the grease trough that flows into the Grease Drain Tube.
-
Page 14: How To Operate Your Silverbac - Reference The Alpha Connect Guide (Supplement)
WI-FI CONTROLLER OPERATION How to Operate Your Silverbac ® ATTENTION: PLEASE READ BEFORE TURNING ON YOUR GRILL! ATTENTION: PLEASE READ BEFORE TURNING ON YOUR GRILL! Getting Started: Getting Started: Remove grill internal components exposing burn pot. Fill hopper with quality food grade pellets, plug-in electrical cord and turn on your grill. Listen/look for pellets to drop into the burn pot, this should take anywhere from 2-4 minutes. -
Page 15: Additional Information
Additional Information Manual Startup When power button is quickly depressed and released. Manual Startup for Wi-Fi Provisioning When power button is depressed for 4 seconds and then released. Shutdown Sequence When power button is pressed for 2 seconds: • Auger turns off. •... -
Page 16: Troubleshooting And Faq
Auger. This will ensure pellets are at the If good, contact Grilla® or visit our website to view end of the tube and will begin dropping once unit is turned on. -
Page 17: Approved Fuel: Wood Pellets
There are more than 125 active pellet mill operations in the United States and Canada, producing millions of pounds of pellets each year. We have our own Grilla brand that we recommend. These all ignite easily and create great heat and flavor. Some brands infuse Charcoal or Alder wood which will burn hotter & faster and may cause issues. -
Page 18: Limited Warranty Information
LIMITED WARRANTY Under the Limited Warranty, we will repair or replace your Grilla product at no charge to you if it is found to be defective during the applicable warranty period. The Limited Warranty does not cover products or component parts which have been lost or stolen;... - Page 19 Grilla or an authorized Grilla Distributor. Procedure for Warranty Service Call Grilla at (616) 392–7410 for repair or replacement of your covered parts. Be prepared to furnish the following information: •...
- Page 20 save this manual for future use Manual #4000489 | Ver. 003...
