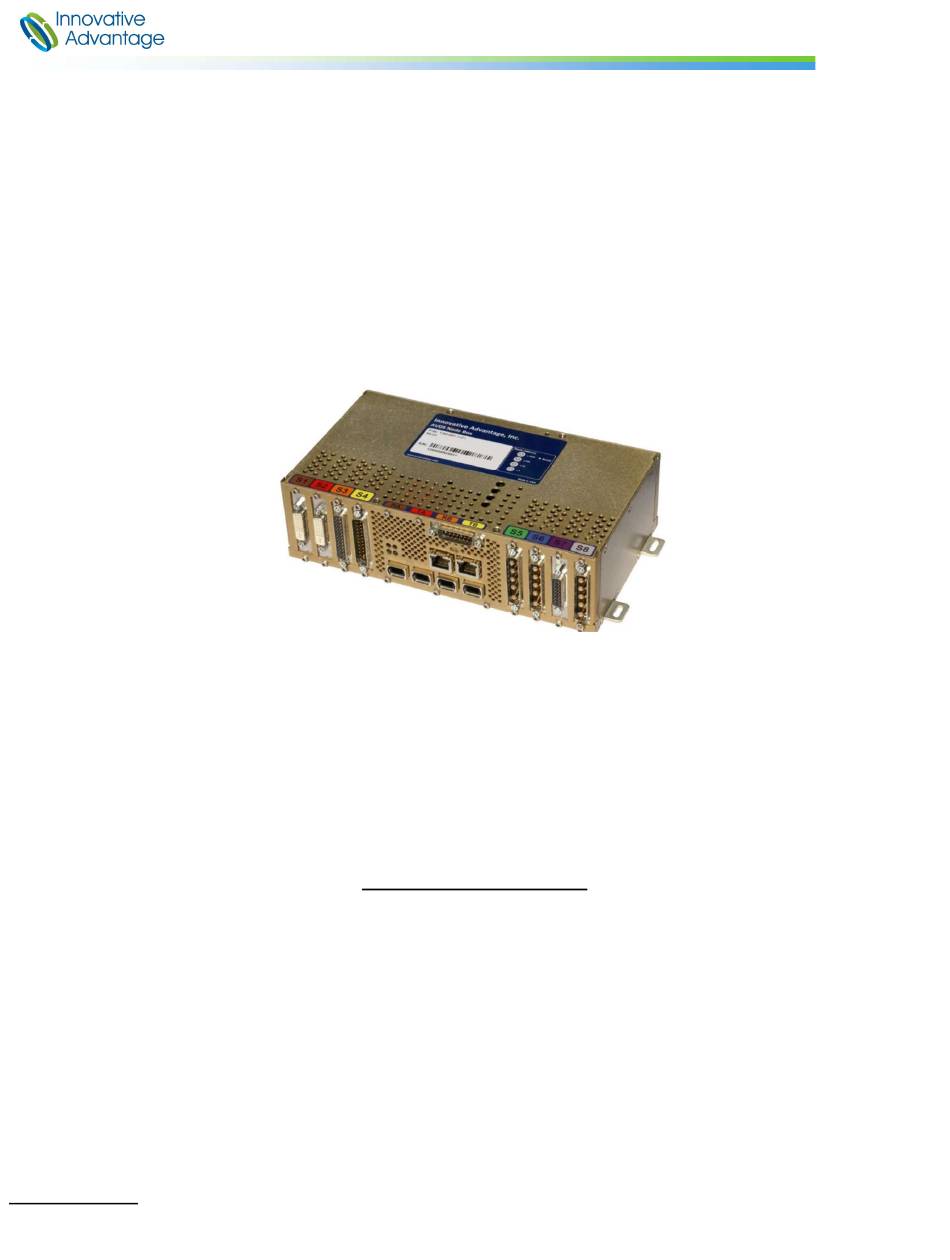

AVDS LOOP BACK TEST
QUICK GUIDE
AVDS LOOP BACK TEST
Quick Guide
Document Information
Summary: Instructions and recommendations for AVDS troubleshooting of known good fibers
and the hardware surrounding.
Revision: 002-0042-01 Rev A AVDS LOOP BACK TEST
© Copyright 2021 Innovative Advantage, Inc. All rights reserved

Required Tools

002-0042-01 Rev A
Innovative Advantage, Inc. Proprietary
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVDS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Innovative Advantage AVDS

  • Page 1 AVDS LOOP BACK TEST Quick Guide Document Information Summary: Instructions and recommendations for AVDS troubleshooting of known good fibers and the hardware surrounding. Revision: 002-0042-01 Rev A AVDS LOOP BACK TEST © Copyright 2021 Innovative Advantage, Inc. All rights reserved...
  • Page 2 Setup Disconnect currently installed aircraft fiber cables and power on AVDS Node. Connect laptop via ethernet cable to AVDS Node and run AVDS Client application. Ensure the node is online and connection has been made. Connecting the Fiber Cables Pay close attention to the labeling of the fiber ports in the image below.
  • Page 3 AVDS LOOP BACK TEST QUICK GUIDE The above picture shows the fiber loop connection to the AVDS Node. The above picture shows the top two link lights that verify ethernet connection. If the above lights are off ethernet connection has not been established.
  • Page 4 AVDS LOOP BACK TEST QUICK GUIDE AVDS Client Open up AVDS Client application. Navigate to the Diagnostics tab  Fiber Integrity Test (See image below). Fiber Integrity Test (FIT) The Fiber Integrity Test is used to verify the fiber optic network.
  • Page 5 AVDS LOOP BACK TEST QUICK GUIDE The advanced information simply provides additional details on the test results and does not need to be interpreted by the user. For additional support, please contact Innovative Advantage at: support@in-advantage.com | +1-888-838-8230 002-0042-01 Rev A Innovative Advantage, Inc.
