USER'S GUIDE

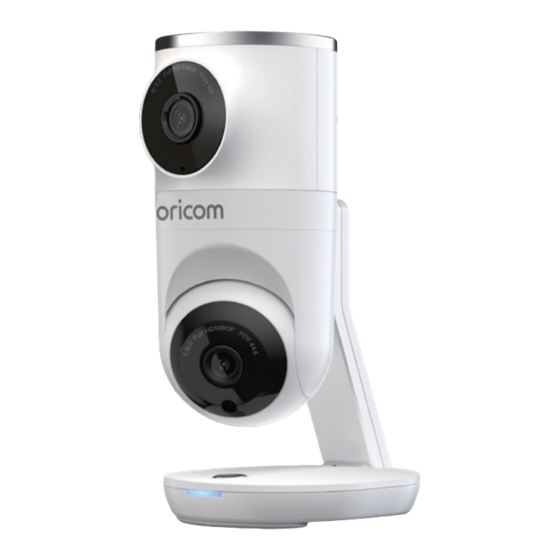

Smart HD Dual Camera with narrow/wide angle viewing

and motion tracking

OBHDUAL

The features described in this user's guide are subject to modifications without prior notice.

Table of Contents

Need help?

Do you have a question about the OBHDUAL and is the answer not in the manual?

Questions and answers

Summary of Contents for Oricom OBHDUAL

Page 1 USER’S GUIDE Smart HD Dual Camera with narrow/wide angle viewing and motion tracking OBHDUAL The features described in this user’s guide are subject to modifications without prior notice.
Page 2 Please keep your original dated sales receipt for your records. For warranty service of your Oricom product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
Page 3 Overview of Camera Unit Bottom View of Baby Unit 1. Speaker 10. Power indicatior 2. Infrared LEDs (x6, top Camera 11. Talk back / ConnectChat™ for night vision) indicatior 3. Camera Lens (top Camera) 12. Wall Mount 4. High Sensitivity Microphone 13.
Page 4: Table Of Contents
Table of contents 1. Safety Instructions ................5 2. Getting Started ..................7 2.1 Connecting the Power Supply for the Camera Unit ......7 2.2 (Optional) Fixing the wall mount to the wall ........7 3. Using the Camera Unit ................. 8 3.1 Setting Up ..................8 3.2 Night Vision Mode ................8 3.3 ConnectChat™...
Page 5: Safety Instructions
1. Safety Instructions WARNING: Strangulation hazard. Children have STRANGLED on cords. Keep this cord out of the reach of children (more than 1 meter away). Never use extension cords with AC adaptors. Only use the AC adaptor provided. Safety Instructions...
Page 6 CAMERA UNIT SET UP & USE: • Choose a location for the Camera Unit that will provide the best view of your baby in his/her cot. • Place the Camera Unit on a flat surface, such as a dresser, bureau or shelf, or mount the Camera Unit on a wall securely using the keyhole slots in the underside of the stand.
Page 7: Getting Started
2. Getting Started 2.1 Connecting the Power Supply for the Camera Unit • Insert the DC plug of the power adaptor into the DC socket on the back of the Camera Unit. • Connect the other end of the power adaptor to a suitable electrical outlet.
Page 8: Using The Camera Unit
3. Using the Camera Unit 3.1 Setting Up Mount the camera in a convenient / safe location and point the camera lens towards the area you want to monitor. Adjust the angle of the camera until you are satisfied with the image shown in the Hubble Club for Partners App. Note: Do not place the Camera Unit within the baby’s reach! If there is inter- ference with the picture or sound, try moving the camera to different...
Page 9: Remote Pan And Tilt
3.4 Remote Pan and Tilt The bottom camera can be remotely controlled from the APP. Press the + UP button or - DOWN button to tilt upward or downward. Press the < LEFT button or > RIGHT button to pan left or right. Note: The top camera is manually controlled by rotating the camera towards the required image.
Page 10: Wi-Fi® Internet Viewing
4. Wi-Fi® Internet Viewing 4.1 Minimum System Requirements Android™ System • Version 8.0 or above iPhone®/iPad® iOS • Version 12.0 or above High Speed (Wi-Fi®) Internet • At least 0.6 Mbps upload bandwidth per camera (you can test your internet speed on this site: http://www.speedtest.net) 4.2 Getting started - Connecting Devices How does it work? Wi-Fi®...
Page 11: Setup
4.3 Setup Connect the Wi-Fi® Camera to the Power Adaptor, then plug into mains power. The Camera must be within range of the Wi-Fi® router with which you want to connect. Make sure the password of the router is available for entering during the in-app setup process.
Page 12: Sign Up With Hubble On Your Smart Device
4.4.3 Sign up with Hubble on your smart device • Ensure that your smart device is connected to your Wi-Fi® router. • Run HubbleClub for Partners App, tap Create Account in the App (fig.1), read through the Privacy Policy, Terms and Conditions, please accept our terms of service, tap Done (fig.2).
Page 13: Add The Camera To Your Account
• Log in your Hubble Club for Partners Account by entering “User Name” and “Password” (fig.7). • Tap Add Your Device to add new Camera (fig.8) fig.7 fig.8 • Select Oricom then Oricom baby monitoring (fig.9-10). • Tap OBHDUAL to add the new camera (fig.11) . fig.9 fig.10 fig.11 Wi-Fi® Internet Viewing...
Page 14 • The following setup instructions will appear on the screen, select your Wi-Fi network and enter the network password (fig.12). • Power on your camera and wait for the LED to flash Red. Press and hold the PAIR button on the bottom of the Camera, you will hear a voice prompt “Ready for Pairing”...
Page 15 • The camera setup process takes a few minutes to show the connection status (fig.16). • Once connection is complete "The Camera has been successfully connected" is displayed, you can now name your Camera (fig.17). fig.16 fig.17 Note: If connection fails, please select Retry and repeat the steps starting from 4.4.4.
Page 16: Disposal Of The Device (Environment)
5. Disposal of the Device (environment) At the end of the product life cycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user’s guide and/or box indicates this.
Page 17: Cleaning And Reseting The Camera
• Every effort has been made to ensure high standards of reliability for your Baby Monitor. However, if something does go wrong, please do not try to repair it yourself – contact Oricom Support for assistance. IMPORTANT Always switch off and disconnect the power adaptor before cleaning your baby monitor.
Page 18: Help
7. Help Display No display • Reset the Unit. Unplug the Camera's electrical power, then plug back in. • Is the Unit switched on? • Is the correct camera selected? Change the camera number, if necessary. • Use of other 2.4 GHz products, such as wireless networks (Wi-Fi® routers), BT™...
Page 19 Troubleshooting for Wi-Fi ® Internet Viewing Category Problem Solution Description / Error Account I am unable to Please check your user name and login even after password. registration. Account I receive an error Please ensure that you have registered with us. Tap Create message saying: Account to create an account.
Page 20 Viewing When I am in “remote When you are accessing your mode”, the video Camera via a network different Camera from your home network (over the stops after 5 minutes. How do I view for internet) your video times out after longer? 5 minutes.
Page 21 Connectivity I am not able to Please check if the Camera is within Wi-Fi ® range. Please try to move issues access my Camera. the Camera closer to the router for better Wi-Fi ® connectivity and try again. Setting Up During setup on Please reset the Camera to setup devices for Android™...
Page 22 General I do not hear any You can tap on the speaker icon sound when I am in the video stream screen to hear accessing a remote audio. By default the audio is not Camera. ON when you are accessing a remote Camera.
Page 23 Setting up When the video is cut You will need to turn off the Auto off, the application Lock function of your device to attempts to reconnect ensure continuous video/audio and this results in lost streaming. sound and choppy video. Features How many users can If you are accessing in Local Mode,...
Page 24: General Information
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. In the event of a minor failure, Oricom reserves the right to choose to repair or replace the product.
Page 25 No change to the conditions of this Express Warranty is valid unless it is made in writing and signed by an authorised representative of Oricom. Oricom will not be liable under this Express Warranty, and to the extent permitted by law will not be liable for any defect, loss, damage or injury...
Page 26 Please note that if a Customer Support Team member advises that your product does not qualify for return, this warranty does not apply to your product. Products that are authorised to be returned to Oricom in Australia must include all of the following: •...
Page 27 Oricom Support - Australia For all product enquiries, troubleshooting or to discuss the range of Oricom products, feel free to contact Oricom or visit our website for answers to frequently asked questions. (02) 4574 8888 / Monday - Friday 8am – 6pm AEST Email: support@oricom.com.au / www.oricom.com.au...
Page 28: Technical Specifications
9. Technical Specifications Frequency 2400 MHz to 2483.5 MHz Top Camera f/3.2 Full HD 1080P, FOV127 Bottom Camera f/8.0 Full HD 1080P, FOV44.6 IR LED 6pcs for Top Camera, 8pcs for Bottom Camera Operating C - 40 Temperature Power Adaptor: Input: 100-240V AC, 50/60Hz, 300mA;...
