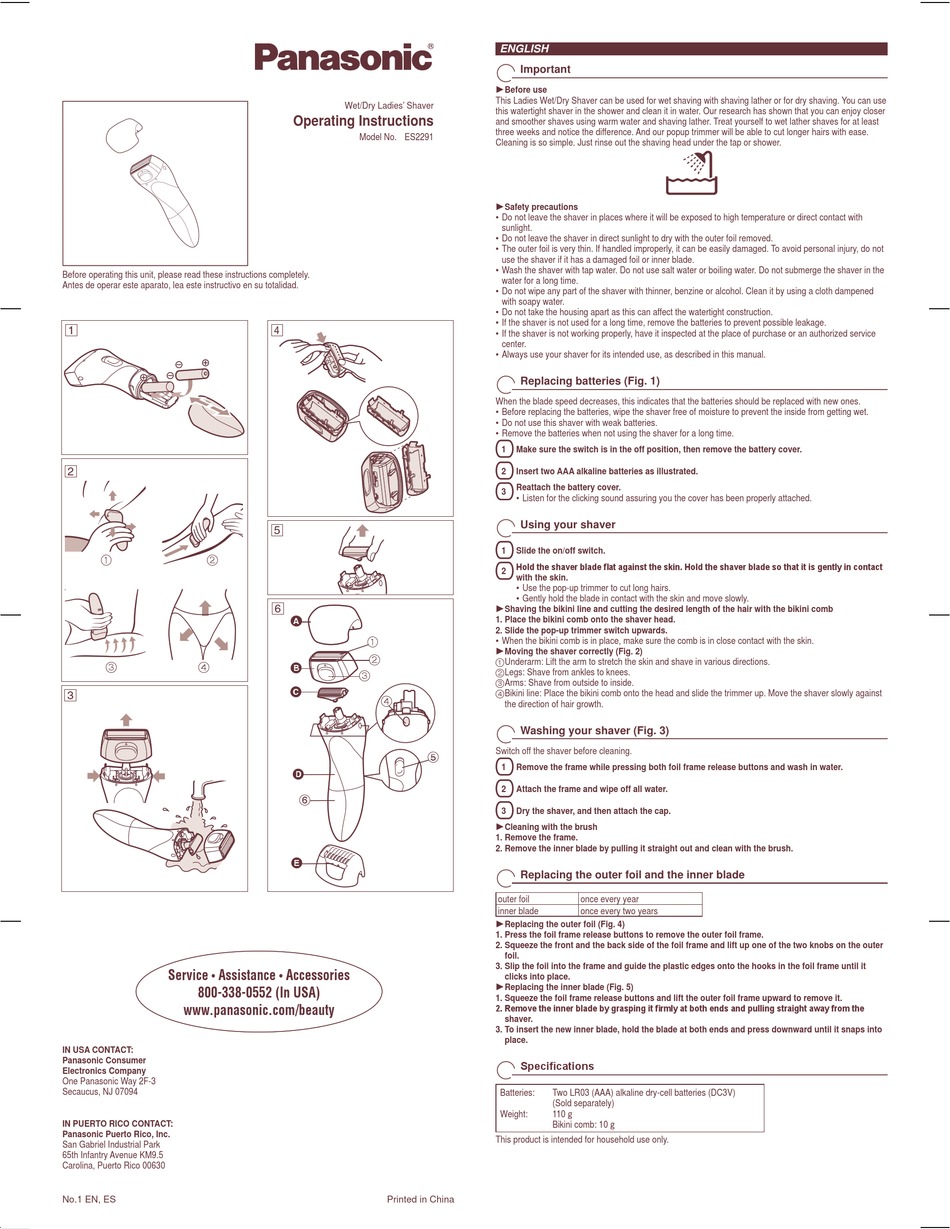

Panasonic ES-2291 Operating Instructions

Before operating this unit, please read these instructions completely.
Antes de operar este aparato, lea este instructivo en su totalidad.
1
2
 
 
3
Service Assistance
•
800-338-0552 (In USA)
www.panasonic.com/beauty
IN USA CONTACT:
Panasonic Consumer
Electronics Company
One Panasonic Way 2F-3
Secaucus, NJ 07094
IN PUERTO RICO CONTACT:
Panasonic Puerto Rico, Inc.
San Gabriel Industrial Park
65th Infantry Avenue KM9.5
Carolina, Puerto Rico 00630
No.1 EN, ES

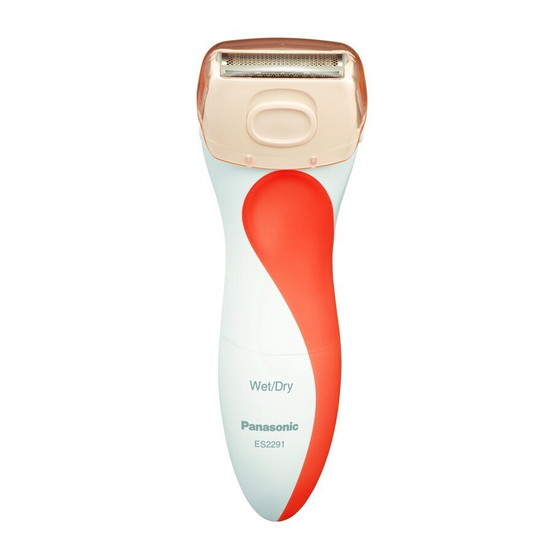

Wet/Dry Ladies' Shaver
Operating Instructions
Model No. ES2291
4
5
6











Accessories
•
Printed in China
ENGLISH
Important
1Before use
This Ladies Wet/Dry Shaver can be used for wet shaving with shaving lather or for dry shaving. You can use
this watertight shaver in the shower and clean it in water. Our research has shown that you can enjoy closer
and smoother shaves using warm water and shaving lather. Treat yourself to wet lather shaves for at least
three weeks and notice the difference. And our popup trimmer will be able to cut longer hairs with ease.
Cleaning is so simple. Just rinse out the shaving head under the tap or shower.
1Safety precautions
• Do not leave the shaver in places where it will be exposed to high temperature or direct contact with
sunlight.
• Do not leave the shaver in direct sunlight to dry with the outer foil removed.
• The outer foil is very thin. If handled improperly, it can be easily damaged. To avoid personal injury, do not
use the shaver if it has a damaged foil or inner blade.
• Wash the shaver with tap water. Do not use salt water or boiling water. Do not submerge the shaver in the
water for a long time.
• Do not wipe any part of the shaver with thinner, benzine or alcohol. Clean it by using a cloth dampened
with soapy water.
• Do not take the housing apart as this can affect the watertight construction.
• If the shaver is not used for a long time, remove the batteries to prevent possible leakage.
• If the shaver is not working properly, have it inspected at the place of purchase or an authorized service
center.
• Always use your shaver for its intended use, as described in this manual.
Replacing batteries (Fig. 1)
When the blade speed decreases, this indicates that the batteries should be replaced with new ones.
• Before replacing the batteries, wipe the shaver free of moisture to prevent the inside from getting wet.
• Do not use this shaver with weak batteries.
• Remove the batteries when not using the shaver for a long time.
1 Make sure the switch is in the off position, then remove the battery cover.
2 Insert two AAA alkaline batteries as illustrated.
Reattach the battery cover.
3
• Listen for the clicking sound assuring you the cover has been properly attached.
Using your shaver
1 Slide the on/off switch.
2 Hold the shaver blade flat against the skin. Hold the shaver blade so that it is gently in contact
with the skin.
• Use the pop-up trimmer to cut long hairs.
• Gently hold the blade in contact with the skin and move slowly.
1 Shaving the bikini line and cutting the desired length of the hair with the bikini comb
1. Place the bikini comb onto the shaver head.
2. Slide the pop-up trimmer switch upwards.
• When the bikini comb is in place, make sure the comb is in close contact with the skin.
1Moving the shaver correctly (Fig. 2)
1Underarm: Lift the arm to stretch the skin and shave in various directions.
2Legs: Shave from ankles to knees.
3Arms: Shave from outside to inside.
4 Bikini line: Place the bikini comb onto the head and slide the trimmer up. Move the shaver slowly against
the direction of hair growth.
Washing your shaver (Fig. 3)
Switch off the shaver before cleaning.
1 Remove the frame while pressing both foil frame release buttons and wash in water.
2 Attach the frame and wipe off all water.
3 Dry the shaver, and then attach the cap.
1Cleaning with the brush
1. Remove the frame.
2. Remove the inner blade by pulling it straight out and clean with the brush.
Replacing the outer foil and the inner blade
outer foil once every year
inner blade once every two years
1Replacing the outer foil (Fig. 4)
1. Press the foil frame release buttons to remove the outer foil frame.
2. Squeeze the front and the back side of the foil frame and lift up one of the two knobs on the outer
foil.
3. Slip the foil into the frame and guide the plastic edges onto the hooks in the foil frame until it
clicks into place.
1Replacing the inner blade (Fig. 5)
1. Squeeze the foil frame release buttons and lift the outer foil frame upward to remove it.
2. R emove the inner blade by grasping it firmly at both ends and pulling straight away from the
shaver.
3. To insert the new inner blade, hold the blade at both ends and press downward until it snaps into
place.

Specifications

Batteries: Two LR03 (AAA) alkaline dry-cell batteries (DC3V)
(Sold separately)
110 g
Weight:
Bikini comb: 10 g
This product is intended for household use only.
