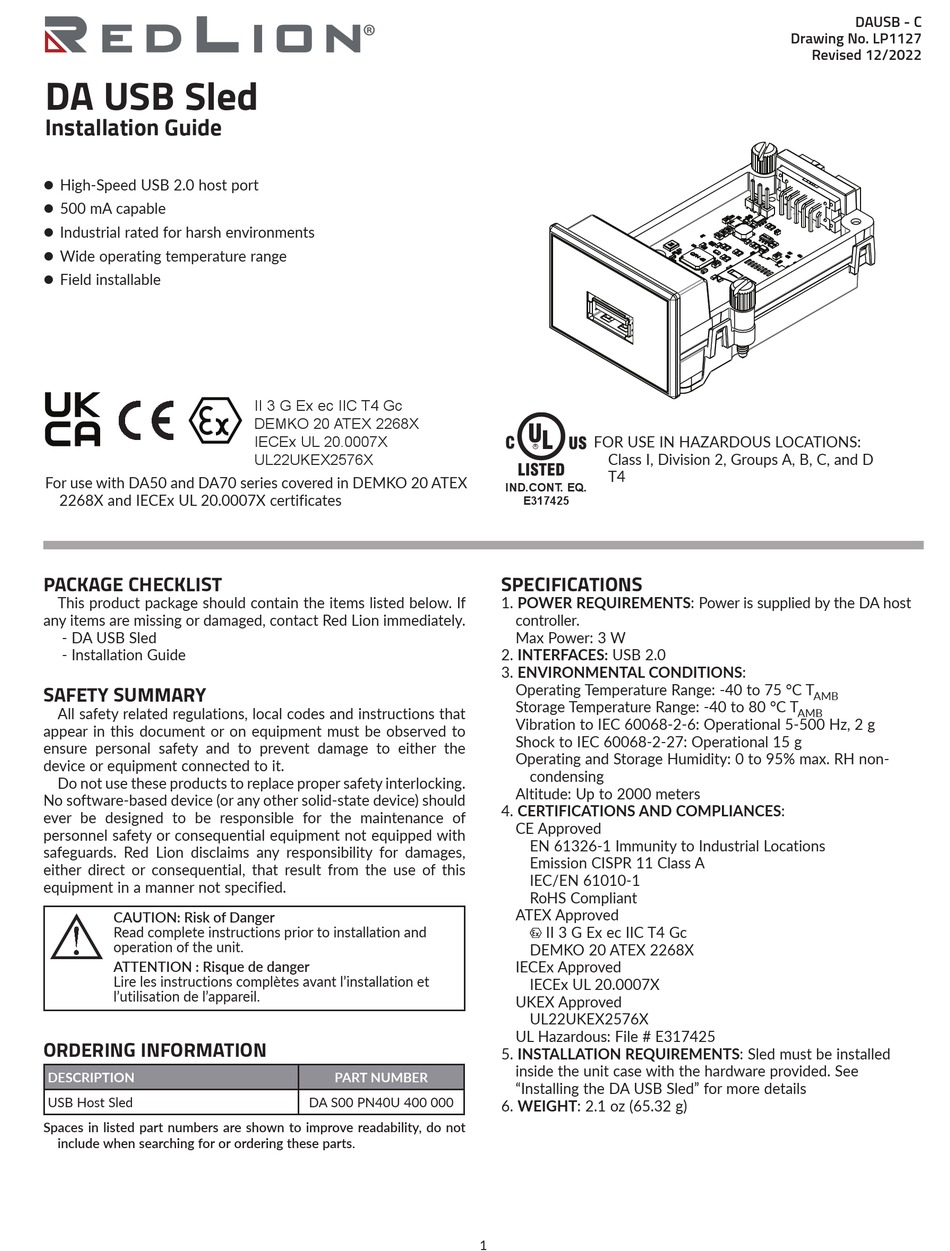

red lion DA USB Sled Installation Manual

DA USB Sled
Installation Guide
z High-Speed USB 2.0 host port
z 500 mA capable
z Industrial rated for harsh environments
z Wide operating temperature range
z Field installable
For use with DA50 and DA70 series covered in DEMKO 20 ATEX
2268X and IECEx UL 20.0007X certificates
PACKAGE CHECKLIST
This product package should contain the items listed below. If
any items are missing or damaged, contact Red Lion immediately.
- DA USB Sled
- Installation Guide
SAFETY SUMMARY
All safety related regulations, local codes and instructions that
appear in this document or on equipment must be observed to
ensure personal safety and to prevent damage to either the
device or equipment connected to it.
Do not use these products to replace proper safety interlocking.
No software-based device (or any other solid-state device) should
ever be designed to be responsible for the maintenance of
personnel safety or consequential equipment not equipped with
safeguards. Red Lion disclaims any responsibility for damages,
either direct or consequential, that result from the use of this
equipment in a manner not specified.
CAUTION: Risk of Danger
Read complete instructions prior to installation and
operation of the unit.
ATTENTION : Risque de danger
Lire les instructions complètes avant l'installation et
l'utilisation de l'appareil.
ORDERING INFORMATION
DESCRIPTION
USB Host Sled
Spaces in listed part numbers are shown to improve readability, do not
include when searching for or ordering these parts.
II 3 G Ex ec IIC T4 Gc
DEMKO 20 ATEX 2268X
IECEx UL 20.0007X
UL22UKEX2576X
PART NUMBER
DA S00 PN40U 400 000
U L
FOR USE IN HAZARDOUS LOCATIONS:
C C US US
R
Class I, Division 2, Groups A, B, C, and D
LISTED
T4
IND.CONT. EQ.
E317425
SPECIFICATIONS
1. POWER REQUIREMENTS: Power is supplied by the DA host
controller.
Max Power: 3 W
2. INTERFACES: USB 2.0
3. ENVIRONMENTAL CONDITIONS:
Operating Temperature Range: -40 to 75 °C T
Storage Temperature Range: -40 to 80 °C T
Vibration to IEC 60068-2-6: Operational 5-500 Hz, 2 g
Shock to IEC 60068-2-27: Operational 15 g
Operating and Storage Humidity: 0 to 95% max. RH non-
condensing
Altitude: Up to 2000 meters
4. CERTIFICATIONS AND COMPLIANCES:
CE Approved
EN 61326-1 Immunity to Industrial Locations
Emission CISPR 11 Class A
IEC/EN 61010-1
RoHS Compliant
ATEX Approved
II 3 G Ex ec IIC T4 Gc
DEMKO 20 ATEX 2268X
IECEx Approved
IECEx UL 20.0007X
UKEX Approved
UL22UKEX2576X
UL Hazardous: File # E317425
5. INSTALLATION REQUIREMENTS: Sled must be installed
inside the unit case with the hardware provided. See
"Installing the DA USB Sled" for more details
6. WEIGHT: 2.1 oz (65.32 g)
1
DAUSB - C
Drawing No. LP1127
Revised 12/2022
