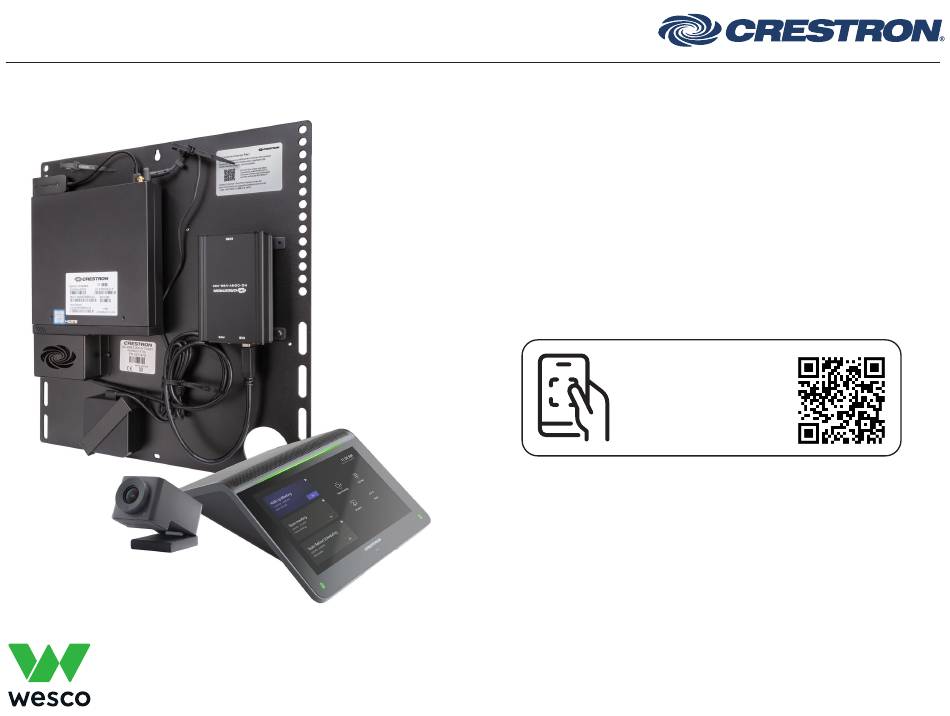

Quick Start Guide
NOTE: This Quick Start guide is specifically for use with Crestron Flex
hardware ordered through Wesco Conference Room as a Service.
UC-MM30-T (SM-MM30-T-US-ND)
Crestron® Flex Tabletop Small Room
Video Conference System for Microsoft
Teams® Rooms
Scan this QR code for:
• Product information
• Live support
• Spec sheets
Advertisement
Table of Contents
Summary of Contents for Wesco CRESTON UC-MM30-T
- Page 1 Video Conference System for Microsoft Teams® Rooms Scan this QR code for: • Product information • Live support • Spec sheets NOTE: This Quick Start guide is specifically for use with Crestron Flex hardware ordered through Wesco Conference Room as a Service.
- Page 2 Cable, USB Extension, USB Type A Male-to-Female, 15 ft (4.6 m) (6508260) labeled USB-EXT In the Box Consumable Kit Your unit ships with a Wesco provided "Consumables Kit" that Tabletop Conference Device includes additional items such as power strips, screws and anchors, Flex MM Tabletop Conference Device, Microsoft Teams video...
-
Page 3: Mount Devices
The integrated cable tie wraps are reusable. Avoid damaging the cable tie wraps. Mount the Camera Mount the included camera according to the UC-CAM-WMK Quick Start (Doc. 8257). This Quick Start guide is specifically for use with Crestron Flex hardware ordered through Wesco Conference Room as a Service. - Page 4 Identify the UC Engine Your UC Engine is the ASUS® Mini PC (UC-MM30-T) - Click on the image below to proceed This Quick Start guide is specifically for use with Crestron Flex hardware ordered through Wesco Conference Room as a Service.
-
Page 5: System Overview
System Overview Page 5 When connections are complete, the system appears as shown below. Refer to for detailed connection instructions. This Quick Start guide is specifically for use with Crestron Flex hardware ordered through Wesco Conference Room as a Service. - Page 6 Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms • Make UC Engine connections as shown in the following illustrations. • A network connection is required for your system to be managed by Wesco Conference R oom as a Service. NOTE: When a network connection is used do not connect anything into the back of the direct connect adapter but leave it connected to the UC Engine.
- Page 7 2. Connect displays to the UC Engine. Connect the EDID passthroughs to the displays. Primary: 6 ft (1.Bm) HDMI cable (labeled VID-201) Secondary: 6 ft (1.Bm) DisplayPort to HDMI cable (labeled (VID-301) This Quick Start guide is specifically for use with Crestron Flex hardware ordered through Wesco Conference Room as a Service.
- Page 8 4. Connect the camera to the UC Engine as shown in the image below. Do not connect the camera to any of the other USB ports. This Quick Start guide is specifically for use with Crestron Flex hardware ordered through (labeled CAM) Wesco Conference Room as a Service.
- Page 9 7. Bundle the cables to the bracket assembly with the integrated cable tie wraps. The cable tie wraps are reusable. This Quick Start guide is specifically for use with Crestron Flex hardware ordered through Wesco Conference Room as a Service.
-
Page 10: Apply Power
2. Log in to the device and navigate to DEVICE > Applications. For detailed information on deploying Microsoft Teams Rooms, refer to Microsoft Teams Rooms documentation. This Quick Start guide is specifically for use with Crestron Flex hardware ordered through Wesco Conference Room as a Service. -
Page 11: Factory Reset
Yes. Tap the button below the Crestron logo to confirm the factory reset. 4. The device will reboot. Configure the device as described in Configure. This Quick Start guide is specifically for use with Crestron Flex hardware ordered through Wesco Conference Room as a Service.
