Summary of Contents for Haswill U114
- Page 1 U114 Temperature Logger (HDL-U11410T) U s e r M a n u a l OPEN U114...
-
Page 2: Product Overview
Product overview The logger is U114 mainly used to monitor and record the temperature (-20 to 60 ℃) data of food, medicine, chemical supplies, and other objects during storage and transportation. They are widely used in various cold chains of storage and logistics, such as refrigerated containers, refrigerated trucks, refrigerated packages, cold storage, laboratory, etc. -
Page 3: Product Diagram

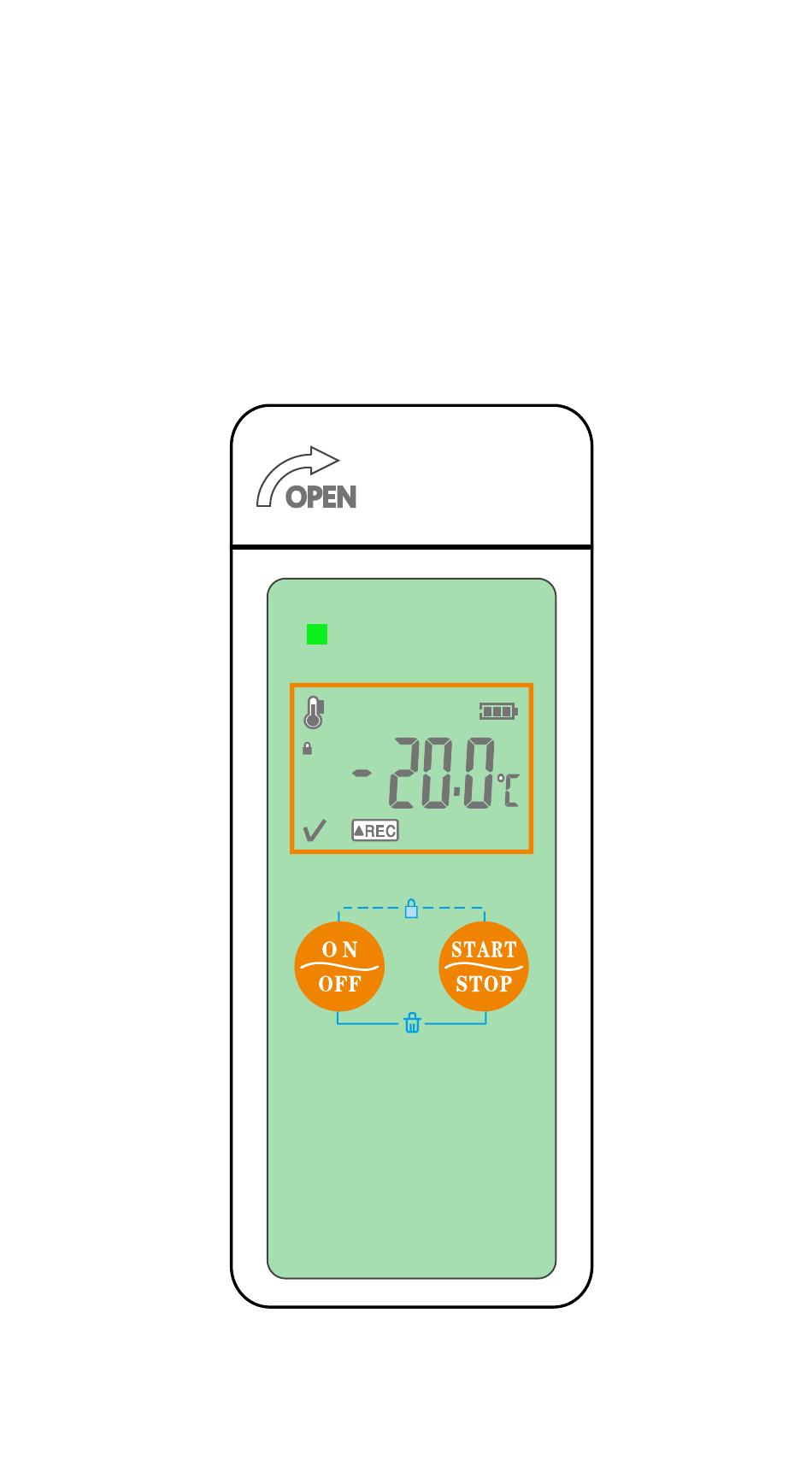

Product diagram OPEN U114 T e m p . L o g g e r Product Model: U114 Record Capacity: 48000 File Format： Temp. Range: -20℃ ~ 60℃ USB protection cover Left key Device indicator Right key Battery cover LCD screen Specification Logger Dimension: 101 mm * 40 mm * 11.5 mm (H * W * D) -
Page 4: Battery Diagram
Battery Diagram CR2450 Battery positive pole Battery negative pole This side outside when This side inside when install battery install battery Initial use 1. Open battery cover at the back of product, install battery with battery negative pole inside, then tighten the cover;... -
Page 5: Key Instruction
Key instruction Turn On/Off: Hold the left key for 5s and then release it; the ◆ screen changes. ◆ Start/Stop Record: Hold the right for 5s and then release it; the screen will show the Rec/Stop; Check the Previous Item: Press and release the left key; ◆... -
Page 6: Lcd Diagram
LCD diagram Temperature display interface Battery level Date display interface Keys lock icon No alarm icon Time display interface Upper limit display interface Over limit icon Lower limit display interface Record status icon Record points display USB connection status icon interface Lowest temperature record Non-recording status icon... - Page 7 LCD menu interface 1 Real Time Temp Date Time Recordable Temp. Recordable Temp. Upper Limit Lower Limit Records Count Highest Temperature Lowest Temperature in Records in Records...
- Page 8 Battery level instruction Battery level Remaining capacity 60% ~ 100% 20% ~ 60% 10% ~ 20% < 10% Note: 1 When the remaining battery capacity is less than 20%, it is recommended to replace the battery to prevent inconvenience; 2 When the remaining battery capacity is less than 10%, please replace the battery as soon as possible to prevent the battery from running out.
-
Page 9: Factory Default Parameters
Factory default parameters Export file type: TXT Temperature unit: ℃ Time zone: UTC +8:00 Report language: English Start delay: Start mode: 0 min start by pressing key Temperature offset value: Stop mode: ±0.0℃ stop by pressing key Temperature lower limit: Temperature upper limit: -20.0℃... - Page 10 Device standard list 1 piece logger 1 piece CR2450 battery 1 piece user manual Haswill Electronics & Haswell Trade https://www.thermo-hygro.com tech@thermo-hygro.com Copyright Haswill-Haswell All Rights Reserved...
