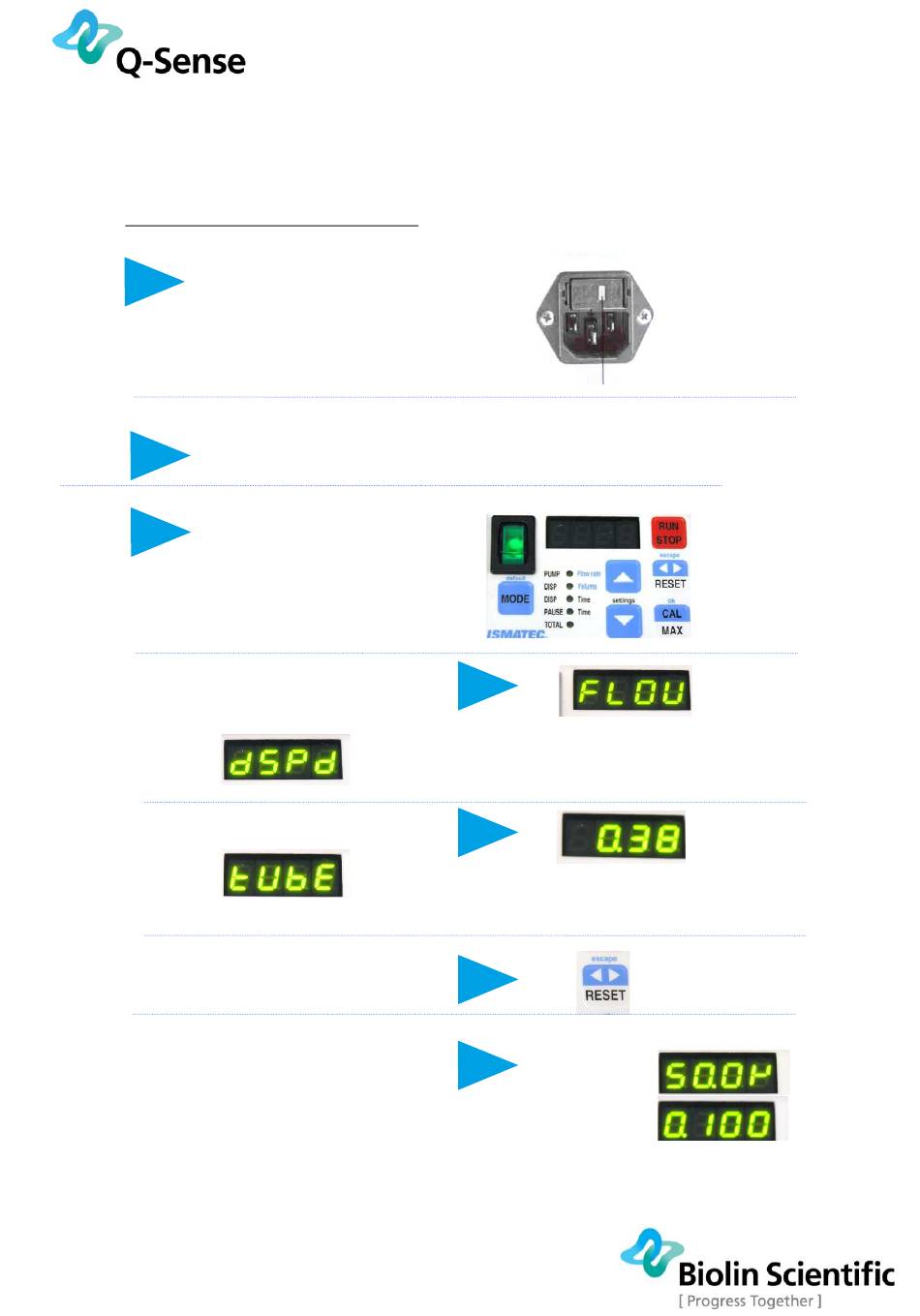

Analyzer/Explorer Liquid handling set up

Pump and Flow System Setup

Part 1 – Ismatec Reglo Digital Pump
Before switching the pump
1
on, check the voltage setting
and fuse on the backside:
220-240V: use 250mA fuses
110-120V: use 500mA fuses
2
Insert the 3-stop color-coded tubing into the cassettes.
Keep the SETTINGS button
3
pressed while switching the
pump on. This makes the
pump start in settings mode
(and blue functions above
the buttons are activated).
Cycle through the different settings
by pressing the settings button until
the display shows DSPD:
Cycle through the rest of the
settings until TUBE is shown:
Press escape to save settings.
When the pump tubes are dry it can
be difficult to fill the system, if so
use an external syringe or reverse
flow to fill.
Typical flow rates, for filling the
system 100-400 μl/min, for sample
exchange 25-200 μl/min.
Pump Setup Reglo Digital Rev B 09-09-06
4
Press OK, then select FLOW with the up
arrow, press OK to confirm.
5
Press OK, and then select correct inner
diameter 0.38 mm. Press OK to confirm.
6
7
50 μl/min
100 μl/min
Voltage settings
window

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q-sense E4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Biolin Scientific Q-sense E4

  • Page 1 Analyzer/Explorer Liquid handling set up Pump and Flow System Setup Part 1 – Ismatec Reglo Digital Pump Before switching the pump on, check the voltage setting and fuse on the backside: Voltage settings window 220-240V: use 250mA fuses 110-120V: use 500mA fuses Insert the 3-stop color-coded tubing into the cassettes.
  • Page 2 Part 2 – Tubing connectors The ferrule forms a tight seal as it is deformed when being screwed into the flow module. Place the ferrule and connector of the tube as shown before attaching them. Make sure to cut the PTFE tubing at right angles.
