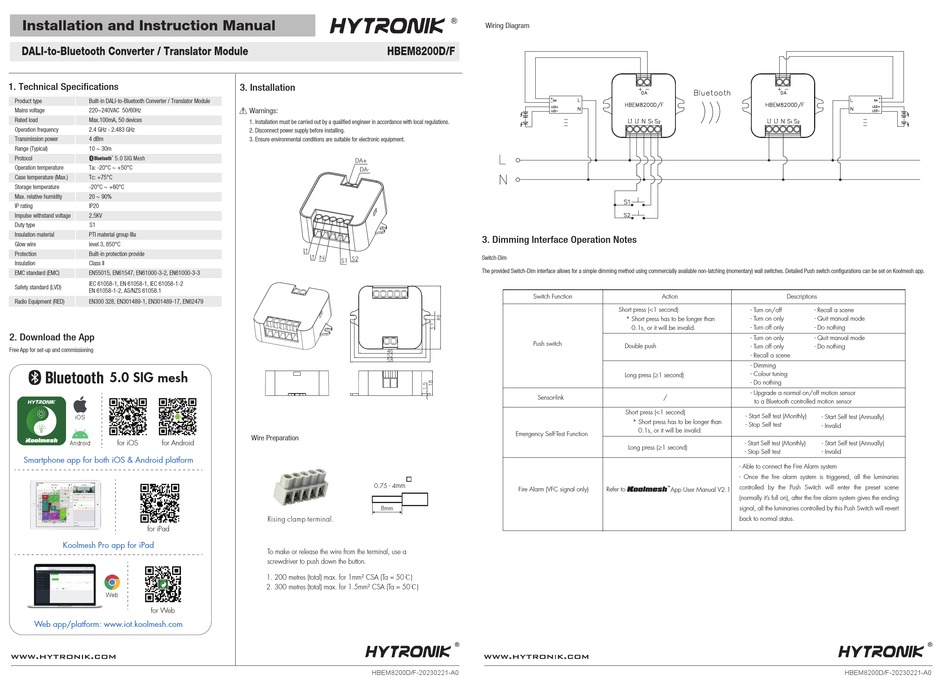

Installation and Instruction Manual
DALI-to-Bluetooth Converter / Translator Module
1. Technical Specifications
Product type Built-in DALI-to-Bluetooth Converter / Translator Module
Mains voltage 220~240VAC 50/60Hz
Rated load Max.100mA, 50 devices
Operation frequency 2.4 GHz - 2.483 GHz
Transmission power 4 dBm
Range (Typical) 10 ~ 30m
Protocol 5.0 SIG Mesh
Operation temperature Ta: -20°C ~ +50°C
Case temperature (Max.) Tc: +75°C
Storage temperature -20°C ~ +60°C
Max. relative humidity 20 ~ 90%
IP rating IP20
Impulse withstand voltage 2.5KV
Duty type S1
Insulation material PTI material group IIIa
Glow wire level 3, 850°C
Protection Built-in protection provide
Insulation Class II
EMC standard (EMC) EN55015, EN61547, EN61000-3-2, EN61000-3-3
IEC 61058-1, EN 61058-1, IEC 61058-1-2
Safety standard (LVD)
EN 61058-1-2, AS/NZS 61058.1
Radio Equipment (RED) EN300 328, EN301489-1, EN301489-17, EN62479

2. Download the App

Free App for set-up and commissioning
5.0 SIG mesh
iOS
Android for iOS for Android
Smartphone app for both iOS & Android platform
for iPad
Koolmesh Pro app for iPad
Web
for Web
Web app/platform: www.iot.koolmesh.com
HBEM8200D/F

3. Installation

Warnings:
1. Installation must be carried out by a qualified engineer in accordance with local regulations.
2. Disconnect power supply before installing.
3. Ensure environmental conditions are suitable for electronic equipment.
DA+
DA-
L
L
N
S1 S2
Wire Preparation
0.75 - 4 mm
8mm
Rising clamp terminal.
To make or release the wire from the terminal, use a
screwdriver to push down the button.
1. 200 metres (total) max. for 1mm² CSA (Ta = 50℃)
2. 300 metres (total) max. for 1.5mm² CSA (Ta = 50℃)
HBEM8200D/F-20230221-A0
Wiring Diagram

3. Dimming Interface Operation Notes

Switch-Dim
The provided Switch-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switches. Detailed Push switch configurations can be set on Koolmesh app.
Switch Function
Short press (<1 second)
* Short press has to be longer than
0.1s, or it will be invalid.
Push switch
Double push
Long press (≥1 second)
Sensor-link
Short press (<1 second)
* Short press has to be longer than
0.1s, or it will be invalid.
Emergency Self-Test Function
Long press (≥1 second)
Fire Alarm (VFC signal only) Refer to
Action Descriptions
- Turn on/off - Recall a scene
- Turn on only - Quit manual mode
- Turn off only - Do nothing
- Turn on only - Quit manual mode
- Turn off only - Do nothing
- Recall a scene
- Dimming
- Colour tuning
- Do nothing
- Upgrade a normal on/off motion sensor
/
to a Bluetooth controlled motion sensor
- Start Self test (Monthly)
- Start Self test (Annually)
- Stop Self test
- Invalid
- Start Self test (Monthly) - Start Self test (Annually)
- Stop Self test - Invalid
- Able to connect the Fire Alarm system
- Once the re alarm system is triggered, all the luminaries
controlled by the Push Switch will enter the preset scene
App User Manual V2.1
(normally it's full on), after the re alarm system gives the ending
signal, all the luminaries controlled by this Push Switch will revert
back to normal status.
