MicroPython SBC for Test, Dev, and Lab Automation

TMCM-0960-MotionPy

Document Revision V1.00 • 2020-10-23

The TMCM-0960-MotionPy board is a single board computer running MicroPython. It comes with

several communication interface options like CAN, RS485, UART, and separate GPIO headers. With

a wide supply voltage range of +6...+50V and industrial Fieldbus interfaces it is the engineers' swiss-

army-knife for small automation applications.

Applications

• Laboratory Automation

• Drives

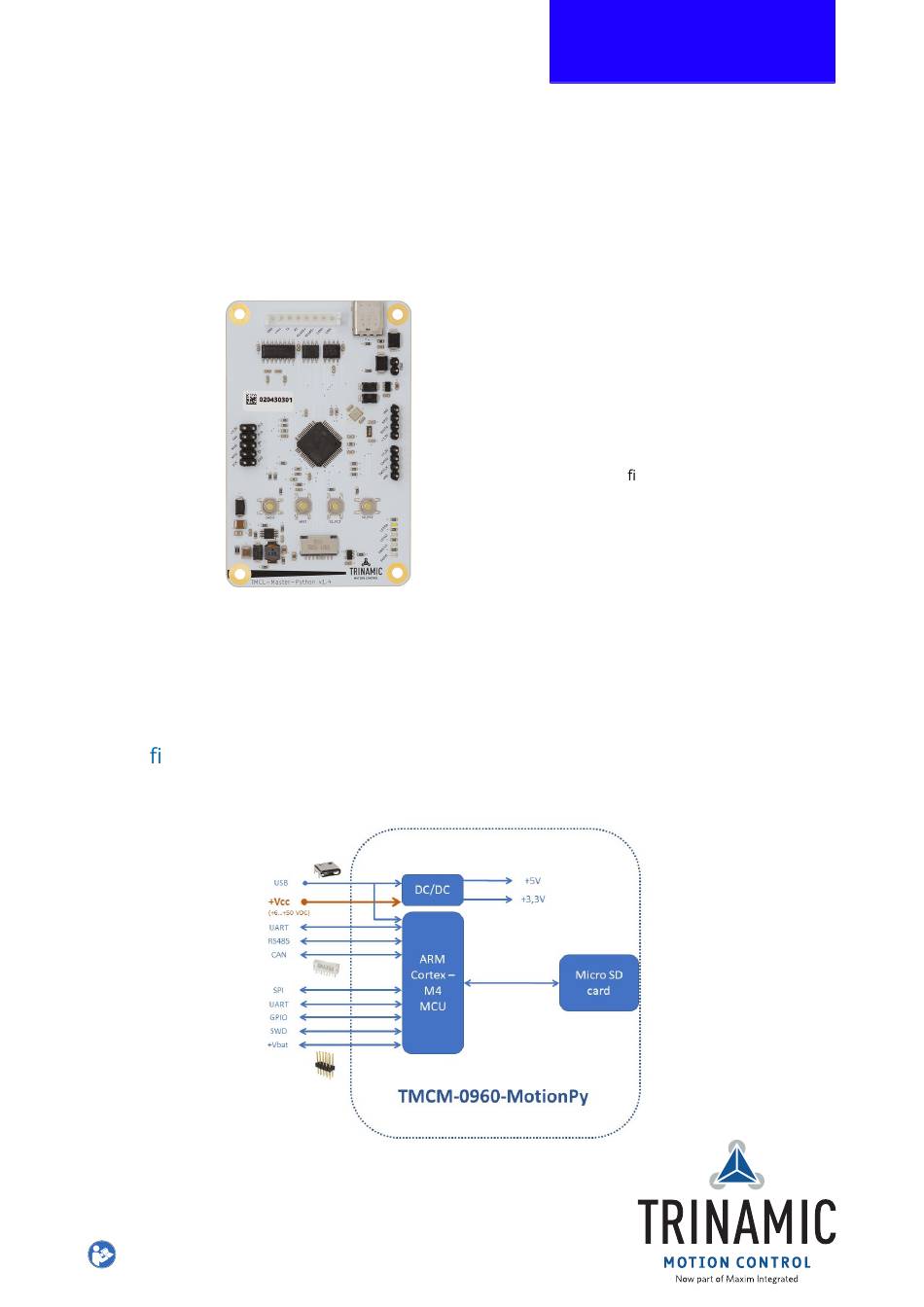

Simpli ed Block Diagram

Terms of delivery and rights to technical change reserved.

Download newest version at:

www.trinamic.com

Read entire documentation.

• Semiconductor Handling

• Robotics

MICROPYTHON SBC

Features

• Board supply voltage: +6V to +50V

• Screw terminals and standard con-

nectors

• CAN, RS485, UART Interfaces

• Connectors and headers for GPIOs

• CAD design les available for down-

load on

www.trinamic.com

• Software projects available on Github:

www.github.com

• Factory Automation

Table of Contents

Need help?

Do you have a question about the TMCM-0960-MotionPy and is the answer not in the manual?

Questions and answers

Summary of Contents for Trinamic TMCM-0960-MotionPy

Page 1 TMCM-0960-MotionPy Document Revision V1.00 • 2020-10-23 The TMCM-0960-MotionPy board is a single board computer running MicroPython. It comes with several communication interface options like CAN, RS485, UART, and separate GPIO headers. With a wide supply voltage range of +6...+50V and industrial Fieldbus interfaces it is the engineers’ swiss- army-knife for small automation applications.
Page 3: Getting Started
Both supplies (motor supply and logic supply) must be connected. They can be driven by the same source. ©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at...
Page 4: Connectors And Leds
2 Connectors and LEDs Figure top view of the TMCM-0960-MotionPy shows the main connector JST-PH with Power input (+Vcc) and UART, RS485, CAN communication interfaces (marked light blue), GPIO signal pin headers (marked green, red, pink) and Realtime Clock power source (+Vbat) 2pin header (marked gray).
Page 5: Power Supply And Communication Interface Connector
+3.3 VDC Bidirectional diﬀ. CAN bus signal (inverting) Table 2: TMCM-0960-MotionPy Power supply and Communication Interface connector pin assignment Always keep the power supply voltage below the upper limit of 50V! Oth- erwise the driver electronics will be seriously damaged. Especially, when the selected operating voltage is near the upper limit a regulated power supply is highly recommended.
Page 6: Gpio Connectors
6 / 11 2.2 GPIO Connectors The TMCM-0960-MotionPy oﬀers three separated input/output headers, directly connected to the MCU (STM32F405RGT6). On the left side of the board, from 2x5pin header (green) - direct SPI and serial interfaces, plus three GPIO options. On the right side of the board, from two 1x4pin headers (pink / red) - MCU direct reset and boot, plus software-set digital input/output and clock signals.
Page 7 MCU VBAT pin1 Supply for Real-Time Clock (RTC) Table 6: 1x2pin RTC Header (Gray) Pin Assignment ©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at www.trinamic.com...
Page 8: Evaluation Board Leds And Switches
Red LED - Software de ned; connected to 1x4pin Header (Red) pin 2 and MCU Table 8: TMCM-0960-MotionPy LEDs ©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at...
Page 9: Safe Mode
6. Remove the link between the CLK and the DIO pin. 7. Switch on again. The module now runs with factory default settings. ©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved.
Page 10: Evaluation Board Design Files
All design les for the base board are available for free. We oﬀer the original ECAD les, Gerber data, the BOM, and PDF copies. • For the TMCM-0960-MotionPy the ECAD les are in KiCAD format. The les are available on Trinamic’s website at https://www.trinamic.com/.
Page 11: Revision History
Version Date Author Description 1.00 2020-10-29 HH, LK, SK Initial release version. Table 9: Document Revision ©2020 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at www.trinamic.com...
