Avis IPL-HD200 Series User Manual

Led color viewer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LED Color Viewer
IPL-HD200 Series
User Manual
Ver 1.0
Copyright 2010 by
AVIS
All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPL-HD200 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Avis IPL-HD200 Series

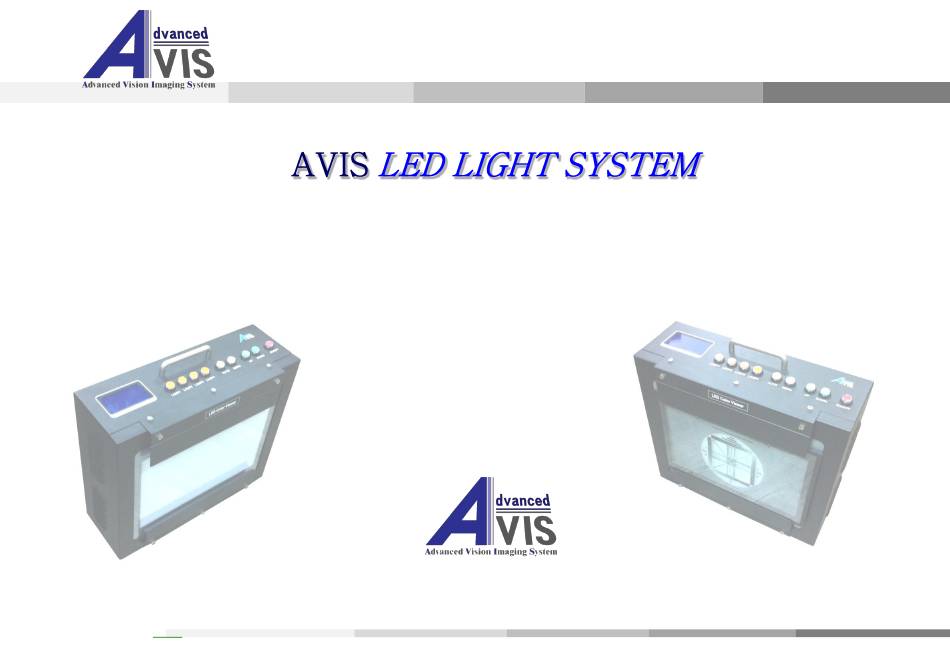

  • Page 1 LED Color Viewer IPL-HD200 Series User Manual Ver 1.0 Copyright 2010 by AVIS All rights reserved.
  • Page 2  Summary & use field of product  Model Definition  Feature of product  Function name & description of product  Specification of product  Dimension of product  Configuration of product  Warranty Copyright 2010 by AVIS All rights reserved.

  • Page 3: Important Safety Precautions

    Important Safety Precautions Copyright 2010 by AVIS All rights reserved.
  • Page 4 Important Safety Precautions Copyright 2010 by AVIS All rights reserved.
  • Page 5 Summary & Use Field Of Product Copyright 2010 by AVIS All rights reserved.

  • Page 6: Model Number Definition

    Model Number Definition  Model definition Copyright 2010 by AVIS All rights reserved.
  • Page 7 Under2300K ~ Over20000K Brightness Over30,000Lux(Surface) / Customizing Uniformity Over85% Automatic Temp. Controller Interface RS232C PC Interface Software AVIS Light Controller Software (For RS23C) Power AC100~250V Input, 50/60Hz Dimension 500 * 620 * 460 (WHD, mm) Copyright 2010 by AVIS All rights reserved.
  • Page 8 Auto mode will be able to designate A mode or B mode. Menu Button This button is enter . UP/DOWN Button This button is brightness control. ON/OFF Button This button is ON/OFF control. Copyright 2010 by AVIS All rights reserved.
  • Page 9 Power Switch It is the main power switch. AC Power Input It is AC power input terminal and the input voltage is AC 100~250V 50/60Hz. RS232C Port Power Switch AC Power Input DC FAN Copyright 2010 by AVIS All rights reserved.
  • Page 10 1. Auto mode A operate the lamp turn ON and OFF as waiting time by turns. 2. Auto mode B operate the lamp turn ON and OFF as setting level and waiting time.( it will able to save 32 ways. ) Copyright 2010 by AVIS All rights reserved.
  • Page 11 Move cursor to left side when you press up button about 0.5second and then press down button. Move cursor to right side when you press down button about 0.5second and then press up button. If you press menu button, display save mode. Copyright 2010 by AVIS All rights reserved.
  • Page 12 If you press auto button, can select next. If you press menu button, display next step. If you press menu button, display begin & end mode. After set begin & end, press menu button and display save mode. Copyright 2010 by AVIS All rights reserved.
  • Page 13 Product Use Method  Select fan control at option mode. To use UP/DOWN button, set fan condition and press menu button. Copyright 2010 by AVIS All rights reserved.
  • Page 14 0.5second and then press up button. If you press auto button, can select next. If you press menu button, display next step. After set user A mode, press menu button and display save mode. Copyright 2010 by AVIS All rights reserved.
  • Page 15 0.5second and then press up button. If you press auto button, can select next. If you press menu button, display next step. After set begin & end, press menu button and display save mode. Copyright 2010 by AVIS All rights reserved.
  • Page 16 It can not be saved at lamp mode, so you It can not be controlled brightness at user user1, can be able to press UP/DOWN have to save User mode or mark setting mode. button. code. Copyright 2010 by AVIS All rights reserved.
  • Page 17 RESET – System Reset Shot key – R key OPTION – Auto mode set Fan operation set Operation set User mode set Communication port set System Setup Firmware Upgrade Shot key – O key Copyright 2010 by AVIS All rights reserved.
  • Page 18 Set Lamp of Light Lux, wait time, begin No. and end No. Button Button Read - Read setting point of product. Read - Read setting point of product. Write - Save setting point to product. Write - Save setting point to product. Copyright 2010 by AVIS All rights reserved.
  • Page 19 Set Lamp of Light Lux, wait time, begin No. and end No. Read - Read setting code of product. Button Write - Save setting code to product. Read - Read setting code of product. Write - Save setting code to product. Copyright 2010 by AVIS All rights reserved.
  • Page 20 Read - Read setting point of product. Write - Save setting point to product. Set between product and communication port. Fan speed - A/B/C/D Set Max. or Min. brightness of each lamp. Update new firmware. Copyright 2010 by AVIS All rights reserved.
  • Page 21 2.Cllick Firmware Upgrade in option mode. 2.Click open program (FLASH) file, and open the Hex file(.A90). 3.Click write program (FLASH), and save the Hex file to product. 4.Click jump application program, and finish firmware upgrade. Copyright 2010 by AVIS All rights reserved.

  • Page 22: Specification Of Product

    Fan Control Automatic / User Setting PC Interface RS232C Power Supply AC200~250V, 50/60Hz Input Power Consumption (W) Max. 60W (at Total ON) Operating Temp. ~ +50 Dimension 500 * 620 * 460 (WHD, mm) Copyright 2010 by AVIS All rights reserved.

  • Page 23: Dimension Of Product

    Dimension Of Product : mm Copyright 2010 by AVIS All rights reserved.

  • Page 24: Configuration Of Product

    Configuration Of Product RS-232C Cable AC Power Cable IPL-HD200 Copyright 2010 by AVIS All rights reserved.

  • Page 25: Warranty

    Warranty                Copyright 2010 by AVIS All rights reserved.
  • Page 26 Copyright 2010 by AVIS All rights reserved.
