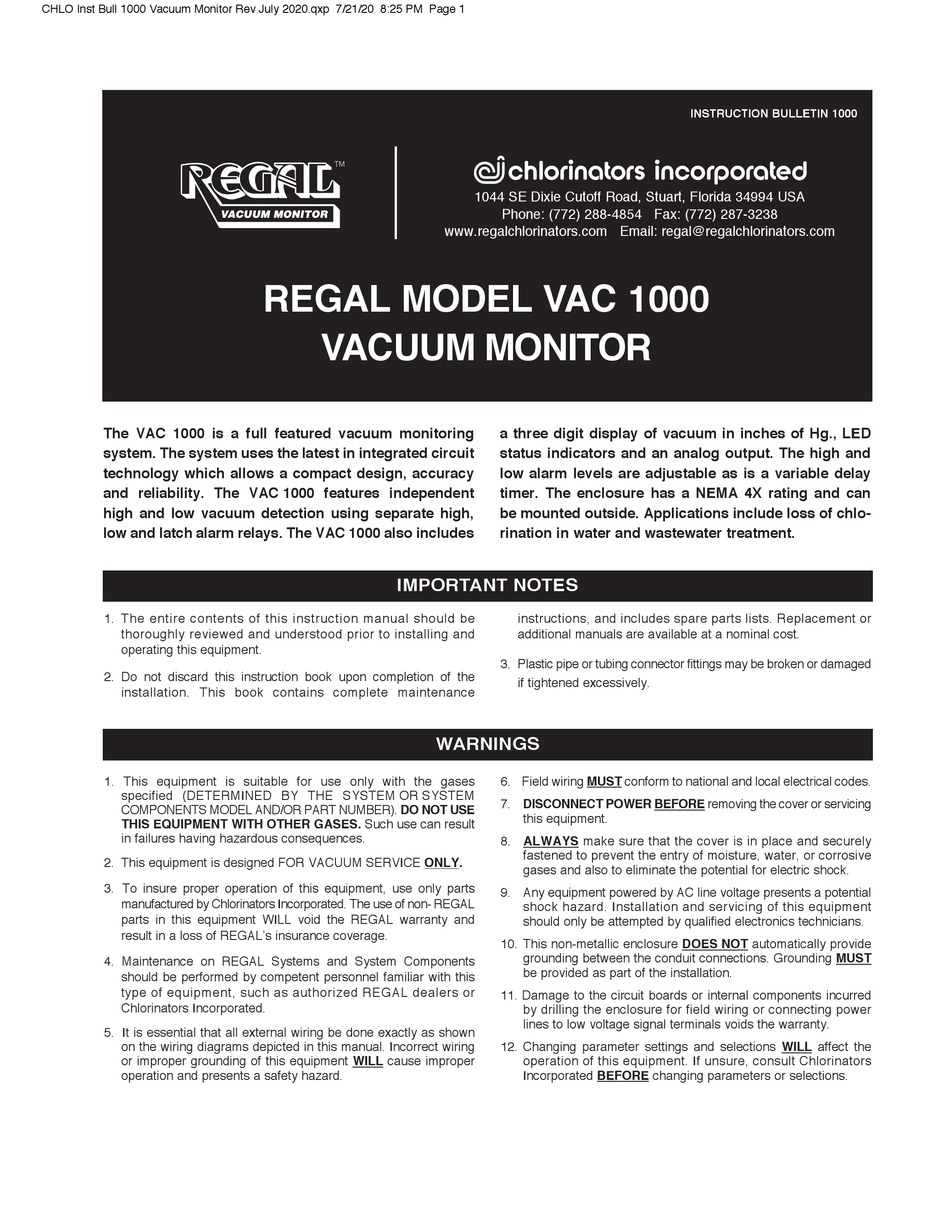

CHLO Inst Bull 1000 Vacuum Monitor Rev July 2020.qxp 7/21/20 8:25 PM Page 1

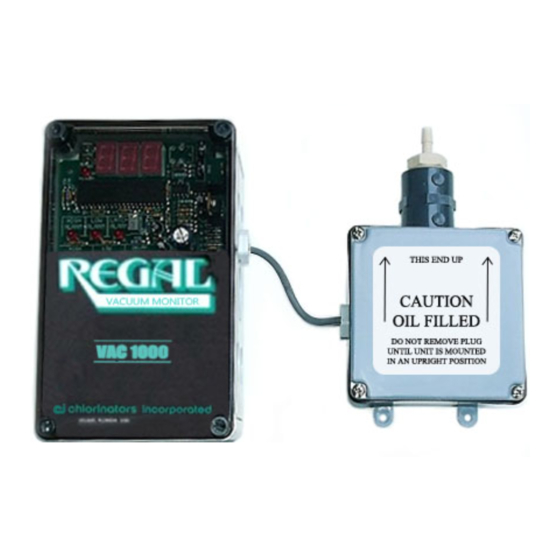

The VAC 1000 is a full featured vacuum monitoring
system. The system uses the latest in integrated circuit
technology which allows a compact design, accuracy
and reliability. The VAC 1000 features independent
high and low vacuum detection using separate high,
low and latch alarm relays. The VAC 1000 also includes
1. The entire contents of this instruction manual should be
thoroughly reviewed and understood prior to installing and
operating this equipment.
2. Do not discard this instruction book upon completion of the
installa tion. This book contains complete maintenance
1. This equipment is suitable for use only with the gases
specified (DETERMINED BY THE SYSTEM OR SYSTEM
COMPONENTS MODEL AND/OR PART NUMBER). DO NOT USE
THIS EQUIPMENT WITH OTHER GASES. Such use can result
in failures having hazardous consequences.
2. This equipment is designed FOR VACUUM SERVICE ONLY.
3. To insure proper operation of this equipment, use only parts
manufactured by Chlorinators Incorporated. The use of non- REGAL
parts in this equipment WILL void the REGAL warranty and
result in a loss of REGAL's insurance coverage.
4. Maintenance on REGAL Systems and System Components
should be performed by competent personnel familiar with this
type of equipment, such as authorized REGAL dealers or
Chlorinators Incorporated.
5. It is essential that all external wiring be done exactly as shown
on the wiring diagrams depicted in this manual. Incorrect wiring
or improper grounding of this equipment WILL cause improper
operation and presents a safety hazard.
TM
REGAL MODEL VAC 1000
VACUUM MONITOR
IMPORTANT NOTES
WARNINGS
1044 SE Dixie Cutoff Road, Stuart, Florida 34994 USA
Phone: (772) 288-4854 Fax: (772) 287-3238
www.regalchlorinators.com Email: regal@regalchlorinators.com
a three digit display of vacuum in inches of Hg., LED 
status indicators and an analog output. The high and
low alarm levels are adjustable as is a variable delay
timer. The enclosure has a NEMA 4X rating and can
be mounted outside. Applications include loss of chlo-
rination in water and wastewater treatment.
instructions, and in cludes spare parts lists. Replacement or
additional manuals are available at a nominal cost.
3. Plastic pipe or tubing connector fittings may be broken or damaged
if tightened excessively.
6. Field wiring MUST conform to national and local electrical codes.
7. DISCONNECT POWER BEFORE removing the cover or servicing
this equipment.
8. ALWAYS make sure that the cover is in place and securely
fastened to prevent the entry of moisture, water, or corrosive
gases and also to eliminate the potential for electric shock.
9. Any equipment powered by AC line voltage presents a potential
shock hazard. Installation and servicing of this equipment
should only be attempted by qualified electronics technicians.
10. This non-metallic enclosure DOES NOT automatically provide
grounding between the conduit connections. Grounding MUST
be provided as part of the installation.
11. Damage to the circuit boards or internal components incurred
by drilling the enclosure for field wiring or connecting power
lines to low voltage signal terminals voids the warranty.
12. Changing parameter settings and selections WILL affect the
operation of this equipment. If unsure, consult Chlorinators
Incorporated BEFORE changing parameters or selections.
INSTRUCTION BULLETIN 1000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VAC 1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Regal VAC 1000

  • Page 1 The enclosure has a NEMA 4X rating and can high and low vacuum detection using separate high, be mounted outside. Applications include loss of chlo- low and latch alarm relays. The VAC 1000 also includes rination in water and wastewater treatment. IMPORTANT NOTES 1.
  • Page 2: Term Of Warranty

    TERM OF WARRANTY NO OTHER WARRANTIES C.I. warrants its REGAL Vacuum Monitor for a period of one (1) year from date of shipment from C.I. Date of shipment from the Unless otherwise explicitly agreed in writing, and signed by a factory shall be determined solely on the basis of the monitor's C.I.
  • Page 3 3.2 Low Level Alarm 3.3 High Level Alarm 3.4 Alternate Method for Adjustment IMPORTANT: 3.5 Maintenance and Calibration Please mail or fax this registration form to establish your warranty. REGAL Registration Card 4.0 OPERATION BASICS 4.1 Digital Display 4.2 LED Indicators 4.3 Alarm Relays...
  • Page 4 CHLO Inst Bull 1000 Vacuum Monitor Rev July 2020.qxp 7/21/20 8:25 PM Page 4 DRAWINGS Drawing No. 1 Wiring Diagram Drawing No. 2 Enclosure Mounting Drawing No. 3 Typical Installation Drawing No. 4 Typical Automatic Switchover System Installation IMPORTANT: Fill out and mail or fax the form on the reverse side to establish your warranty.
  • Page 5: Basic Information

    2.1 OPENING UNIT Enclosure: NEMA 4X rated Remove the four plastic screws to open the VAC 1000. The printed Vacuum Measurement circuit board contains static sensitive parts. Range: 0 to 30 inches Hg THE INSTALLER MUST WEAR A GROUNDING STRAP WHEN HANDLING THE BOARD.
  • Page 6: Setup And Calibration

    This method can be used for low level adjustment, except the rotation of the pot is reversed. 3.5 MAINTENANCE AND CALIBRATION Once the VAC 1000 has been in operation for approximately one 3.0 SET UP AND CALIBRATION week, the unit should be checked for the correct zero reading.
  • Page 7: Operation Basics

    115V AC power active until the manual reset button (See Figure 2) is pushed. to the VAC 1000 should be switched on and off with the well This indicator verifies that either an alarm occurred or is still pump.
  • Page 8 CHLO Inst Bull 1000 Vacuum Monitor Rev July 2020.qxp 7/21/20 8:25 PM Page 8 DRAWING NO. 1 - WIRING DIAGRAM TO  COMPUTER DIGITAL DISPLAY ZERO (INCHES Hg) ADJUSTMENT BOARD  ANALOG MOUNTING  OUTPUT HOLES (4 PLACES) PRESSURE  POLARITY INDICATOR HIGH LATCH ALARM  ALARM ALARM ALARM INDICATORS High Alarm...
  • Page 9 CHLO Inst Bull 1000 Vacuum Monitor Rev July 2020.qxp 7/21/20 8:25 PM Page 9 DRAWING NO. 2 - ENCLOSURE MOUNTING VACUUM  HOSE  CONNECTION VAC 1000 LOW VOLTAGE WIRE VS-1 SENSOR  ENCLOSURE WATER TIGHT FITTINGS BOX MOUNTING RESET  LOCATIONS SWITCH MOUNTING LOCATIONS NOTE: SENSOR ENCLOSURE MUST BE MOUNTED IN AN UPRIGHT POSITION POWER ...
  • Page 10 CHLO Inst Bull 1000 Vacuum Monitor Rev July 2020.qxp 7/21/20 8:25 PM Page 10 DRAWING NO. 3 - TYPICAL (NON SWITCHOVER) INSTALLATION...
  • Page 11 CHLO Inst Bull 1000 Vacuum Monitor Rev July 2020.qxp 7/21/20 8:25 PM Page 11 DRAWING NO. 4 - TYPICAL AUTOMATIC SWITCHOVER SYSTEM INSTALLATION...
  • Page 12 CHLO Inst Bull 1000 Vacuum Monitor Rev July 2020.qxp 7/21/20 8:25 PM Page 12 1044 SE Dixie Cutoff Road, Stuart, Florida 34994 USA Phone: (772) 288-4854 • Fax: (772) 287-3238 • www.regalchlorinators.com • Email: regal@regalchlorinators.com REGAL GAS CHLORINATORS: PURE WATER. PURE AND SIMPLE. Copyright 2020 Chlorinators Incorporated Printed in U.S.A.
