Instruction Manual
CURVE TRACER
CS-8020
CS-8200
CS-8500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-8000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Iwatsu CS-8000 Series

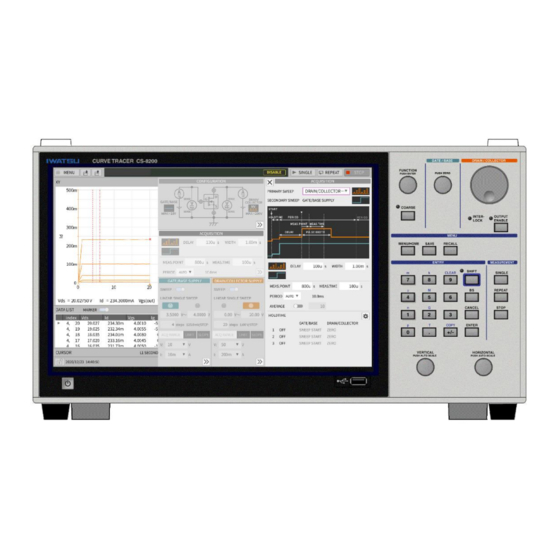

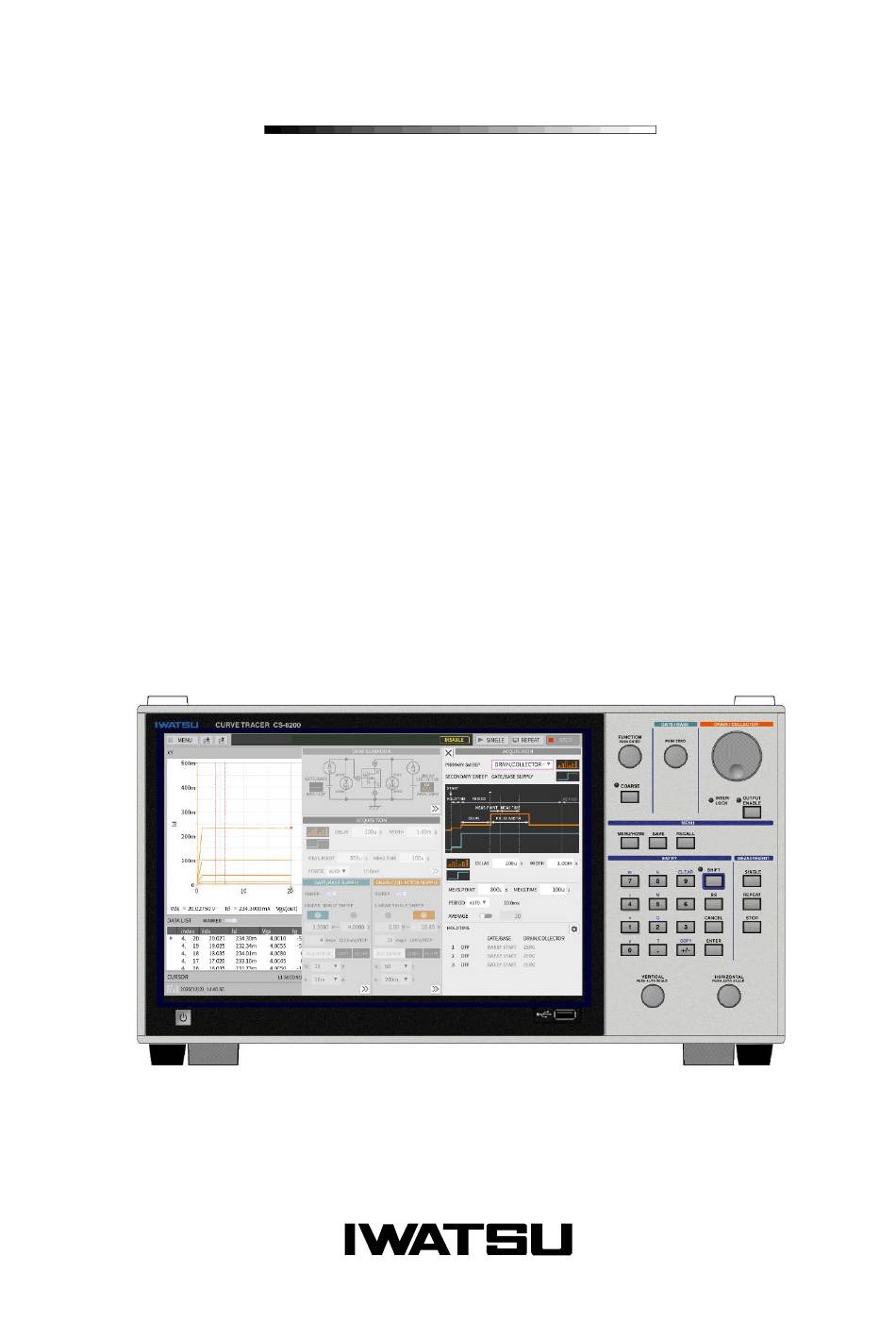

  • Page 1 Instruction Manual CURVE TRACER CS-8020 CS-8200 CS-8500...
  • Page 2 Copyright Ⓒ 2021 IWATSU ELECTRIC CO., LTD. All rights reserved.
  • Page 3 ◇ The instruction manual for the Curve Tracer CS-8000 Series has the following structure. ○ Curve Tracer CS-8000 Series instruction manual (this manual and PDF file i in the attached CD) ○ Test Fixture CS-322 Instruction manual (PDF file in the attached CD) ○...
  • Page 4 Read this page to ensure proper safety. (Also read the following pages.) WARNING ●In measurement with this instrument, high voltage may be applied and high current may be supplied. Always close the cover before measurement after setting the DUT (Device Under Test) on the Test Fix- ture.
  • Page 5 Continued use under these circumstances may result in electric shock or fire. After taking measures above, contact IWATSU or our sales distributors for repair. Repairing the instrument by yourself is very dangerous. Do not attempt to repair the instrument under any circumstances.
  • Page 6 When performing inspection, calibration, or repair, contact IWATSU or our sales distributors. ●When handling power cord, observe items below: If not, fire or electric shock may occur. If the power cord is damaged, contact IWATSU or our sales distributors for repair.
  • Page 7 Modifications or repairs made by users may result in an electric shock, a fire, or a malfunction. This instrument cannot be repaired by users. Do not open it to attempt repairs. For repairs, contact IWATSU or our sales distributors. Note that modified Instruments will not be accepted for repairs.
  • Page 8 Read this page to ensure proper safety. (Also read the following pages.) CAUTION ● Set the power supply cord up in the place where it is pulled out easily. When this instrument is a dicey situation, it is necessary to cut power off promptly. Do not attempt to place this instrument in the location where difficult to unplug the power suppl y cord from the receptacle.
  • Page 9 If you do not have the proper packing material or shock absorbing material, con- tact IWATSU or our sales distributors. When having the instrument transported by a shipping com- pany, write "Precision instrument - Handle With Care" on each side of the packing box.
  • Page 10 Read this page to ensure proper safety. CAUTION (Continued) ● The weight of this instrument is about 21 kg. When moving or transporting it, two persons or more should carry it. If not, injury may be caused. If "OVERHEAT ALERT !!!" or "Overheat alert was detected." is displayed, the ●...
  • Page 11 Items When receiving this instrument, please check parts in the package. ◆ Curve Tracer CS-8000 Series ................. : 1 ＜ ＞ Accessories ・Power cord (3-prong) ..................: 1 ・Cord strap ....................... : 1 ・Control interface terminator ................: 1 ・Protective cover right ..................: 1 ・Protective cover left ..................
  • Page 12 About the explanation method of this Manual ◆ ◇The Curve Tracer CS-8000 Series is designed for use in combination with optional Test Fixtures and HC Unit. Therefore, the explanation of functions and operations is based on the assumption that the Test Fixture is connected.

  • Page 13: Table Of Contents

    3.2 Preparation for Measurement ........................3-3 3.2.1 Connect the Power Cord ........................3-3 3.2.2 Connect the Test Fixture CS-322 and CS-8000 Series ..............3-4 3.2.3 Connect the Inside of the Test Fixture CS-322 ................3-6 3.2.4 Turn the Power ..........................3-7 3.2.5 Register the Test Fixture as an External Unit ................
  • Page 14 3.4.5 Detailed Settings in the AXIS (XY) Menu ................... 3-34 3.4.6 Detailed Settings in the AXIS (YT) Menu ................... 3-36 3.4.7 Detailed Settings in the DATA LIST Menu .................. 3-37 3.4.8 Detailed Settings in the CURSOR Menu..................3-38 3.4.9 Detailed Settings in the DISPLAY Menu ..................3-40 3.4.10 Detailed Settings in the SAVE Menu ..................

  • Page 15: Chapter 1 Overview

    CS-5000 Series in order to evaluate power semiconductor devices in the power electronics market. 1.1 Features The CS-8000 Series is a most-advanced Curve Tracer that can handle maximum peak voltage of 5 kV / maximum peak current of 2 kA by combining with various optional units.
  • Page 16 ■ Handling of the DUT (Device Under Test) The CS-8000 Series is usually used by connecting the optional Test Fixture CS-322, but an unique Test Fixture might be required due to the size and shape of the DUT, or additional equip- ment for measurement.

  • Page 17: Chapter 2 Names And Functions

    It can also be used by connecting a USB -connected mouse or keyboard. For the handling of USB memory, refer to Section 3.4.10, "About USB memory that can be used" in the detailed settings of the SAVE menu Curve Tracer CS-8000 Series Instruction Manual...

  • Page 18: Top Right Of The Front Panel

    Test Fixture, or if the protective cover on the rear panel is not properly attached and fixed, the interlock state will occur and the LED will light up (See Section 2.2.3). It cannot be measured in the interlock state. Curve Tracer CS-8000 Series Instruction Manual...

  • Page 19: Front Panel Menu

    When the numerical value setting field is se- lected with the FUNCTION knob, etc., the nu- merical value input screen is displayed and nu- merical value input is possible. Figure 2.4: Front panel ENTRY and MEASUREMENT Curve Tracer CS-8000 Series Instruction Manual...

  • Page 20: Lower Right Of The Front Panel

    Sets the horizontal axis display scale for the XY display. Turn it to the right to enlarg e it, and to the left to reduce it. When you press the knob, the optimum horizontal axis display scale is automatically set based on the value of the acquired data. Curve Tracer CS-8000 Series Instruction Manual...

  • Page 21: Names And Functions Of The Rear Panel

    Connect devices such as the HC Unit CS-200 Series with a cable. When DRAIN / COLLECTOR SUPPLY is set to HC, the amount of current output by the HC Unit is converted to a voltage value and input to the CS-8000 Series. ⑤ INTERLOCK Connector Cable devices such as optional Test Fixtures to detect interlocks and perform safety checks.
  • Page 22 Connect the GATE / BASE SENSE connector of the Test Fixture CS-322 with the optional triaxial cable. ⑰ SOURCE / EMITTER FORCE Connector Connect the SOURCE / EMITTER FORCE connector, such as the Test Fixture CS-322, with the op- tional triaxial cable. Curve Tracer CS-8000 Series Instruction Manual...

  • Page 23: Triaxial Connection

    2.2.3 INTERLOCK Mechanism and Connector Interlock Switch (1) The CS-8000 Series and optional Test Fixtures have an INTERLOCK mechanism, and interlock switches in various places detect that the front cover and protective cover of the rear connector of the Test Fixture are properly closed.
  • Page 24 / BASE SUPPLY will be cut off and the measurement will be interrupted. When using only the CS-8000 Series without using the Test Fixture specified by us, please contact our sales staff or customer support and be sure to install the INTERLOCK mechanism according to the wiring specifications of the INTERLOCK connector shown in Fig ure 2.8.

  • Page 25: Names And Functions Of The Test Fixture Cs-322

    Figure 2.10: Front panel of Test Fixture CS-322 ① POWER LED When the CS-8000 Series powers up under the following conditions, the POWER LED lights up in blue. (1) Power is supplied to the AC LINE INPUT terminal on the rear panel.
  • Page 26 After installing and connecting the DUT to be measured inside, it can be measured by closing it properly. ⑤ Cover Handle A handle on which you can put your finger when opening and closing the cover. 2-10 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 27: Rear Panel Of The Test Fixture

    BNC connector for inputting DC voltage for AUX measurement. Input with a BNC coaxial cable from the AUX connector on the rear of the Curve Tracer CS-8000 Series or an external power supply. The input voltage is output to the AUX1 terminal on the front panel, and the CS -8000 Series can control ON / OFF of the internal output of the Test Fixture.
  • Page 28 ⑧ CONTROL INTERFACE (IN) Connector This is a connector for controlling each unit in the Curve Tracer CS-8000 Series. It is used by con- necting to the OUT side of the CONTROL INTERFACE connector of the Curve Tracer CS-8000 Series or the CONTROL INTERFACE connector of other units.

  • Page 29: Connection Terminals Of The Test Fixture Cs-322

    This is a terminal for the test wire lead (black) that is mainly used when the DRAIN / COLLECTOR SUPPLY of the CS-8000 Series is MV or HV. It is connected to the SOURCE / EMITTER FORCE (HC) terminal inside the Instrument.
  • Page 30 DUT when the measurement is unstable such as when the DUT oscillates. It can be enabled by setting GATE / BASE RESISTOR to ON on the CS-8000 Series. Be sure to insert a resistor between the terminals when setting it to ON. If it is not insert ed, the gate / base connection will be open and the output of GATE / BASE SUPPLY cannot be applied to the gate / base of the DUT, making correct measurement impossible.

  • Page 31: Test Fixture Cs-322 And The Patch Panel Cs-520

    Connect to the SOURCE / EMITTER SENSE terminal of the connection terminal with a test wire lead (black), and input the voltage actually applied to the source / emitter via the Test Adapter for meas- urement. 2-15 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 32 Check the panel notation and cable label to ensure correct wiring. If you make measurements with incorrect wiring, you may not be able to make correct measurements and it may cause a malfunc- tion. 2-16 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 33: Chapter 3 Function Settings And Basic Operations

    This instrument is used by connecting it to an optional Test Fixture or HC Unit. However, when the Test Fixture and HC Unit are stacked on top of the CS-8000 Series, the angle adjustment stand of the CS-8000 Series cannot be used upright. (The stand may be damaged) ☆...
  • Page 34 When there is a change in the environment, wait a while for the environment inside the instrument to become accustomed to the surrounding environment. And then, turn on the main power switch. Curve Tracer CS-8000 Series Instruction Manual...

  • Page 35: Preparation For Measurement

    Power cord (3-prong type) Power connector Power plug Power outlet Figure 3.1: Power cord connection (CS-8000 Series) Connect the power cord of the Test Fixture ① Insert the power connector of the supplied power cord into the AC LINE INPUT terminal for con- necting the power cord on the rear panel of the Test Fixture (see Fig.

  • Page 36: Connect The Test Fixture Cs-322 And Cs-8000 Series

    Chapter 3 Function Settings and Basic Operations 3.2.2 Connect the Test Fixture CS-322 and CS-8000 Series Connect the Test Fixture CS-322 to the CS-8000 Series with the optional HV standard cable set Figure 3.3 shows the installation diagram of the CS -8200 and CS-322 with the protective cover on the rear panel removed and the numbers assigned to the connection destinations of the HV standard cable set.
  • Page 37 Chapter 3 Function Settings and Basic Operations Table 3.1: Connection table between CS-8000 series and Test Fixture CS-322 On the On theTest CS-8000 Connector Name Cable to be Used Fixture CS- Remark Series ⑤ ② INTERLOCK Interlock / sense cable Mandatory ⑥...
  • Page 38 Test wire lead (black) ⑥ ⑤ SOURCE / EMITTER GNDU SENSE Test wire lead (black) ⑦ ⑥ GATE / BASE FORCE Test wire lead (green) ⑧ ⑦ GATE / BASE SENSE Test wire lead (green) Curve Tracer CS-8000 Series Instruction Manual...

  • Page 39: Turn The Power

    Turn on the main power switch on the rear panel. (Press to the ｜ side) Press the standby switch on the front panel. After turning on the power, the IWATSU logo mark will be displayed on the screen and all the LEDs on the front panel will light up, so check that they are displayed and lit normally.
  • Page 40 Active column has a check mark. In addition to CS-322 (for 5 kV, 2 kA), Test Fixtures that can be used with the CS-8000 Series will be added in the future depending on the measurement range and purpose.

  • Page 41: Screen Layout And Basic Operations

    Normal operation messages such as file save completion. No Icon Cleared after displaying for a certain period of time. Curve Tracer CS-8000 Series Instruction Manual...
  • Page 42 The main settings for each screen are displayed and there is an input field. This input field can be changed during measurement. When the measurement is started, the HOME screen is displayed. 3-10 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 43: Basics Of Screen Operation

    When you tap this knob mark, the display changes to (gray knob ), and the value in the numerical field below cannot be increased or decreased. 3-11 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 44 CLR button or CLEAR key to erase all characters on the input line , and enter the correct character. To cancel the numerical input, press the CANCEL button/key or the Esc key on the USB keyboard to return to the original state without any changes. 3-12 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 45 These operations can also be entered from the USB keyboard. Use the Enter key instead of button and the Esc key instead of button. 3-13 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 46: Display Contents Of Measurement Settings Area

    The first line shows the applied power supply as Figure 3.12: ACQUISITION Screen PRIMARY SWEEP (a parameter that increases for each point during sweeping) in the color of the waveform. The second line shows the applied power 3-14 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 47 [I:] to the upper limit, and the upper limit of the source power [W:]. Figure 3.13: If the upper and lower limits are not set, the values will not be displayed. GATE/BASE When SLOPE is selected, a numerical setting field indicating the steepness of SUPPLY Screen 3-15 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 48 In the lower half, the measurement range, source voltage/source cur- rent/source power upper / lower limit settings, and pulse rising / falling waveform settings are displayed. Figure 3.14: DRAIN / COLLECTOR SUPPLY Screen 3-16 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 49: Measurement Display Area

    The △▲ mark on the X-axis indicates the Vds sweep range, and the value set in DRAIN/COLLECTOR SUPPLY is reflected. The values displayed for Vds =, Id =, and Vgs (OUT) = in the lower row are the numerical data for the marker ( ). 3-17 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 50 LIMIT. The measured value displays the item selected on the detail screen, but the display order can be changed by dragging the title part of the item. 3-18 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 51 INDEX and PRIMARY INDEX in the title bar of the Figure 3.19: DOT mode cursor measurement cursor measurement section. When you set the and XY display step number according to the Vds value or Vgs 3-19 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 52 You can also change it to an unlock icon by tapping the lock screen or pressing any panel key. Next, tap [I Agree.] on the displayed UNLOCK FRONT PANEL pop-up screen. Finally, you can change it to the unlock icon by checking it and tapping the OK button. 3-20 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 53: Menu Structure And Detailed Settings

    (see section 3.4.10). RECALL Display the current setting list and the SETUP RECALL selection screen, and select the measurement result or meas- urement condition file to be recalled (see section 3.4.11). 3-21 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 54: Detailed Settings In The Configuration Menu

    It cannot be set if the Test Fixture is not registered or set to Active (see Section 3.2.5). There are 11 types of measurement Figure 3.21: circuits in 4 categories shown in Table 3.6. CONFIGURATION detailed setting screen 3-22 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 55 SUPPLY S/E：COMMON D/C：DRAIN / COLLECTOR Measurement under the SUPPLY condition of V = 0V G/B：DRAIN / COLLECTOR SUPPLY S/E：COMMON D/C：OPEN Measurement of G/B：DRAIN / COLLECTOR , etc. at I = 0A SUPPLY S/E：COMMON 3-23 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 56 CONFIGURATION is set. If the CONFIGURATION setting is changed, the V and I titles set in DRAIN / COLLECTOR SUPPLY and GATE / BASE SUPPLY will become the default settings. 3-24 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 57 MAX is set to 1V, a sine wave with a peak voltage of ± 1V can be applied. In the POLARITY field, you can select POSITIVE, NEGATIVE, BIPOLAR for GATE. For GATE -SIN, it is limited to BIPOLAR only. 3-25 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 58 The MAX field sets the maximum voltage or current that can be applied. You can select POSITIVE, NEGATIVE, or BIPOLAR in the POLARITY field, but some items may not be selectable depending on the settings. 3-26 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 59: Detailed Settings In The Acquisition Menu

    The pulse must be maintained until the end of measurement collection. If this constraint is not met, the [Meas.Point, Time] message will be displayed. The measured value for one cycle is the average value between MEAS.POINT and MEAS.TIME . 3-27 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 60 SWEEP START SWEEP START value MANUAL Arbitrary setting output PULSE / DC Tap OK on the HOLD TIME SETTING screen to reflect the previous settings on the ACQUISITION ad- vanced detailed settings screen. 3-28 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 61 (WIDTH of the pulse that rises later) < =1.6 Pulse Width / Period Either is PULSE Pulse duty ratio is within the specified range Period < xx s PERIOD >= (Minimum period calculated from the current setting (xx s)) 3-29 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 62: Drain / Collector Supply Menu

    In the TITLE field, set the name of the measured voltage / current within 32 characters. The name set here will be used in the CONFIGRATION diagram and tables and graphs in the measured value display area. 3-30 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 63 Set while checking the waveform on the YT screen. LOOPING In AC mode and RECTIFID SINE mode, set a pseudo loop correction in the software thinning process. No correction is performed when 0 is set. 3-31 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 64: Detailed Settings In The Gate / Base Supply Menu

    In the TITLE field, set the name of the measured voltage / current within 32 characters. The name set here is used in the CONFIGRATION diagram and the tables and graphs in the meas ured value display area. 3-32 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 65 0 to 100, and 0 does not control the rising and falling edges. Increasing the value causes a gradual change. Set while checking the waveform on the YT screen. LOOPING In AC mode, set a pseudo loop correction in the software thinning process. No correction is performed when 0 is set. 3-33 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 66: Detailed Settings In The Axis (Xy) Menu

    When the INVERT switch is turned on, the Y-axis display is flipped upside down. When the SCALE field is LINEAR, the RANGE field sets the display value per division on the Y axis. The POSITION field sets the display position of the origin. 3-34 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 67 Figure 3.28: The settings for SOURCE, INVERT, RANGE, and POSITION are the Detailed setting screen same as for a single trace, but the LOG scale cannot be set. for AXIS (XY) MULTI TRACE 3-35 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 68: Detailed Settings In The Axis (Yt) Menu

    PULSE in CONFIGURATION, but it is 0s at the left end except in the case of PULSE. This value is linked to the TIME CURSOR field on the left side of the title bar on the YT scree n. 3-36 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 69: Detailed Settings In The Data List Menu

    The switch on the 7th line is for selecting whether to display the power setting value of GATE / BASE SUPPLY. This is also a set value or a value calculated from the set value, which is named Vgs (out) in the figure. 3-37 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 70: Detailed Settings In The Cursor Menu

    This value is linked to the value in the L2 SECONDARY INDEX field on the left of the title bar of the cursor measurement section in the measured value display area. The field settings for TYPE and POSITION are the same as for LINE1. 3-38 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 71 0.1 degrees. If it becomes a vertical line, “inf.” is displayed. The GRADIENT setting is linked to the value in the GRADIENT field of the cursor measurement section in the measured value display area. 3-39 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 72: Detailed Settings In The Display Menu

    By tapping the color, you can change it from the 24 candidate colors in the pop -up list. RESET COLOR Tap the button on the bottom row to restore all color settings except the background color. 3-40 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 73: Detailed Settings In The Save Menu

    The field below the title bar shows the name of the current save folder, and the field below it shows a list of its subfolders. You can go to a lower folder by tapping the desired folder line. 3-41 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 74 This is a format that allows the same WAVEFORM (*.CTW) type de- data evaluation as during measurement even after recall. tailed setting screen Turn on the BINARY DATA (*.CTW) switch to save this type of file. 3-42 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 75 -mm- dd hh-mm-ss format. Therefore, even if you repeat the save operation with the same settings, if there is 3-43 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 76: Detailed Settings In The Recall Menu

    The TEMPLATE TYPE field has two choices: BUILT-IN and USER CUSTOM. When BUILT-IN is selected, typical measurement examples built in the instrument at the time of shipment are display ed in the FILE 3-44 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 77 SETUP MEMS in the upper left column to set it to XY CHART, the contents of the left measurement value display area will be the XY waveform display of the measurement result. When you select a file in 3-45 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 78 At this time, you will be asked to confirm the deletion on the CONFIRMATION screen, so click the OK button to execute the deletion or the CANCEL button t o cancel the deletion. 3-46 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 79: Detailed Settings In The Screen Copy Menu

    BITMAP (*.bmp) format is the largest size. In GRAY SCALE without color information, the PORTABLE NETWORK GRAPHICS (*.png) format is the smallest, followed by the JPEG (*.jpg) format and the BITMAP (*.bmp) format. 3-47 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 80: Detailed Settings In The System Menu

    LICENSE INFORMATION displays our copyright regarding this instrument in English. Tap the LICENSE AGREEMENT button to check the open source license agreement, and tap the OPEN SOURCES button to check the module that uses open source. 3-48 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 81 1. When the external connection device has never been set after delivery of this instrument (see Section 3.2.5) 2. When communication with the device set to Active is not possible 3. When there is a device for which the firmware should be updated 3-49 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 82 EXEC SAVE (WAVEFORM) saves the measurement results in the folder specified by the WAVEFORM (*.CTW) type in the SAVE menu with the specified file name plus the date, minute, and second. 3-50 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 83 The character string input pop -up screen will be displayed. Edit it and set it with the OK button. The maximum length of the character string is 128 characters, but the part that cannot be displayed due 3-51 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 84 The SYSTEM INITIALIZE button returns the various s ettings of this instrument to the factory defaults. Initializes the part that is not included in the initialization settings using the DEFAULT key in the RECALL menu. 3-52 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 85: Default And The Intialize Settings

    AUX OUT switch AUX voltage AUX1 switch AUX2 switch ACQUISITION PRIMARY SWEEP DRAIN / COLLECTOR SUPPLY DRAI N/ COLLECTOR SUPPLY DELAY PULSE WIDTH 400 u GATE / BASE SUPPLY DELAY PULSE WIDTH 400 u 3-53 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 86 Measurement Range Setting TITLE Setting Measurement Range Setting TITLE LIMIT ACTION STOP Upper Switch Value 0.00 m Lower Switch Value 0.00 m Upper Switch Value Lower Switch Value Upper Switch Value SLOPE (Tr/Tf) Value 3-54 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 87 SLOPE (Tr/Tf) Value AXIS-XY TITLE Blank MULTI TRACE AUTO RANGE DISP ZERO X-AXIS SOURCE SCALE mode LINEAR INVERT function RANGE (V/div) POSITION (div) Y-AXIS SOURCE SCALE mode LINEAR INVERT function RANGE (A/div) POSITION (div) 3-55 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 88 R(on) switch Vds(out) switch Vgs(out) switch Display Order Vds, Id, Vgs, Ig, R(on), Vds(out), Vgs(out) CURSOR MODE DISPLAY VIEW XY switch VIEW YT switch VIEW DATA LIST switch VIEW CURSOR switch VECTOR LINE 3-56 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 89 YT-TEXT (*.CSV) switch SECONDARY INDEX SELECT BY MARKER PRIMARY INDEX SELECT BY MARKER Vds switch Id switch Vgs switch Ig switch SCREEN COPY FORMAT COLOR MODE FULL COLOR BACK COLOR BLACK FOLDER INT/ FILENAME image 3-57 Curve Tracer CS-8000 Series Instruction Manual...
  • Page 90 → TOOLS SYSTEM INITIALIZE. Table 3.11: Items not covered by SYSTEM INITIALIZE and factory settings Category Item Default Setting SYSTEM MENU EXTERNAL UNIT All items except the switch of EXTERNAL UNIT ETTING NOTIFICATION 3-58 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 91: Firmware Update

    TIMESTAMP as shown in SYSTEM STATUS in Section 3.3.13.1 Launching the firmware update tool After the CS-8000 Series is started, the displayed IWATSU logo disappears once. During about two seconds when both IWATSU logo and the mouse cursor arro w is displayed again, press [F1] key. Firmware selection Tap the [Browse ...] button of the Select boot image file (*.zip), select the zip file of the latest...
  • Page 92 Chapter 3 Function Settings and Basic Operations Memo 3-60 Curve Tracer CS-8000 Series Instruction Manual...

  • Page 93: Chapter 4 Daily Maintenance And Calibration

    4.3 Repair and sending of repaired Instrument If a failure occurs, contact Iwatsu or our sales distributors. If an unexpected failure by our fault occurs during the warranty period, it can be repaired without charge.

  • Page 94: Storage And Transportation

    Conditions to store CS-8020 / CS-8200 / CS-8500 are as follows: ・ Storage temperature: 20C to 60C ・ Storage humidity: 5 to 80 RH (40C, without dew condensation) When transporting the instrument, use the packing materials attached when purchasing it or equivalent. Curve Tracer CS-8000 Series Instruction Manual...

  • Page 95: Chapter 5 Specifications

    SIN Output Mode AC, RECTIFIED SIN (Full wave (1/1), Half wave (1/2), 1/3 to 1/50) Frequency 50 Hz (AC) Setting accuracy ± (Set value x 1.2% + Set range x 0.4%) 1/±1000 Setting resolution Curve Tracer CS-8000 Series Instruction Manual...
  • Page 96 Note 4: In current measurement, add (measurement range x 0.002% x Vo) (Vo is the output voltage [V]) Note 5: 20 nA to 5 nA range is ± (measurement range x 5.0% + 200 pA) addition Curve Tracer CS-8000 Series Instruction Manual...
  • Page 97 ±40 V (Note 1) Output voltage ±50 mA (Typical value) Output current Note 1: Output only during measurement TRIG OUT Output voltage 3.3 V CMOS output Output at the start of the measurement cycle Curve Tracer CS-8000 Series Instruction Manual...
  • Page 98 Internal storage Measurement data, setup, screen copy Control signal Control interface, Interlock (HR10A connector: 10 pins), Calibration CAL output Indicator (LED) INTERLOCK, OUTPUT ENABLE Built-in clock Year / month / day hour: minute: second Curve Tracer CS-8000 Series Instruction Manual...
  • Page 99 Humidity Altitude Operating: Up to 2000 m Accessory Control interface terminator Protective cover right Protective cover left Fixed belt Instruction manual (this manual) CD (Instruction Manual / Remote Control Manual) Power Cord Cord Strap Curve Tracer CS-8000 Series Instruction Manual...

  • Page 100: Compliance Information

    Chapter 5 Specifications Compliance information Table 5.2 CS-8000 Series Compliance information Directive Descriptions EN61010-1: 2010/A1: 2019 Low Voltage Directive (Safety) Pollution degree 2 Overvoltage category (installation category) II Note Directive EN61326-1: 2013 (Group1,ClassA) RoHS Directive EN IEC 63000: 2018 Note: Cable condition Use an Ethernet cable that is a shielded LAN cable (STP).
  • Page 102 CS-8020/ CS-8200/ CS-8500...
