Suptek SPM201XL Installation Manual

INSTALLATION MANUAL

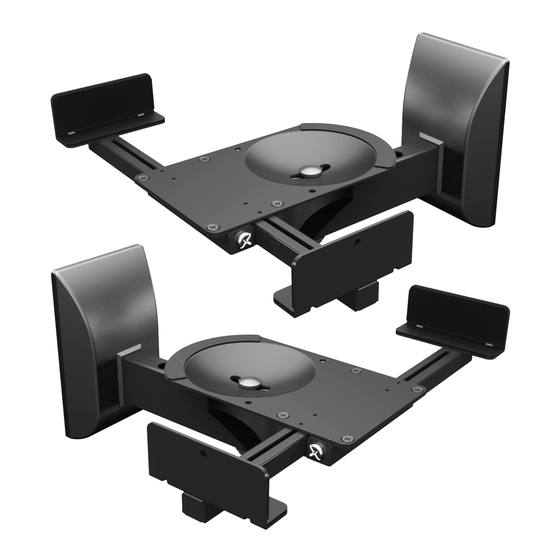

This pack contains 2 speaker mounts
Suitable for loads up to 30kg （ 66lbs） each speaker
UNPACKING INSTRUCTIONS
Carefully open the carton, remove contents and lay out on cardboard
or other protective surface to avoid damage.
Check package contents against the Supplied Parts List in the next
page to assure that all components were received undamaged. Do
not use damaged or defective parts.
Carefully read all instructions before attempting installation.
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instruction
before beginning the installation, and carefully follow all instructions
contained herein. Use proper safely equipment during installation.
Please call a qualified installation contractor for help if you:
If you don't understand these directions or have any doubts about the
safely of the installation.
If you are uncertain about the nature of your wall, consult a qualified
installation contractor.
Do not use this product for any purpose or in any configuration not
explicitly specified in this instruction. We hereby disclaims any and all
liability for injury or damage arising from incorrect assembly, incorrect
mounting, or incorrect use of this product.
Optional Speaker Wire
Before you start
Management
Option A : Wires are concealed inside the wall
Option B : Wires are exposed outside the wall
Supplied parts list
SPM201XL
(2)Wall
Bracket-a
(2)M8x60mm
Bolt-e
(10)M4x12mm
Wood Screw-i
(1)wrench-m
Note: The mounting components and hardware supplied in this
package are not designed for installations to walls with steel
studs or to cinder block walls. If the hardware you need for
installation is not included, please consult your local hardware
store for proper mounting hardware for the application.
Step 1
(2)Wall Bracket (2)Tilting End Cap-c
Cover-b
(2)Plastic Washer-f (2)M8 Washer-g
(8) M6x45mm
(8)Lag Bolt
Lag Bolt-j
Washer-k
·3.8MM drill bit
Tools Required
·Phillips Screwdriver ·carpenter's level
Mounting the wall bracket to the wall
(2)Speaker
Platform-d
(2)M8 Nut-h
(8)M8x40mm
Concrete Anchor-l
·8MM masonry bit
