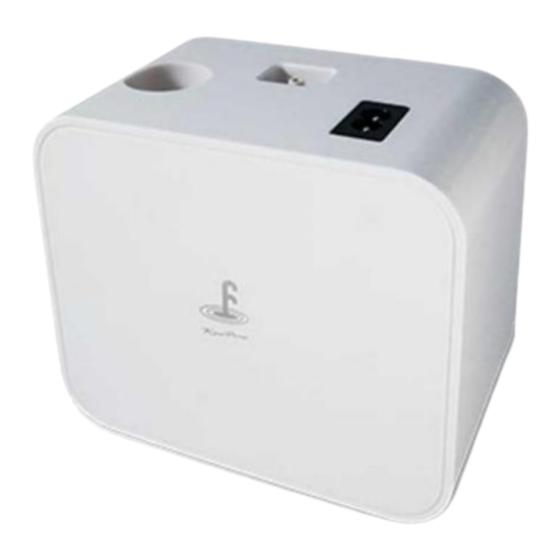

Air Condition Automatic Drainage Pump
Caution:
Ensure the power source is connecting to uninterruptible power source. The condensate pumps
※
require power at all times.
For exchanging an old condensate pump, check if the discharging tube is working properly then plug
※
power supply.
DC35V installation must use to the same type or air conditioner. It cannot connect to power supply of
※
110V or 220V to avoid condensate pump malfunction.
Please check the power supply is 110V or 220V to avoid condensate pump malfunction.
※
Installation:
Power installation type
one:
Plug in power supply to
power source.
Model: CUBE 12M
User Manual
Power installation type
two:
Connect both condensate
pump and air conditioner's
power cord and plug in
.
power supply to power
source
w w w . e k t
2
Power installation type
three:
te
Connect condensate pump
power cord into air
d
conditioner control
ly
board's power wires
(Make sure it's not control
lines).
. c o m
Electronics
Katrangi
Trading
Advertisement
Table of Contents
Summary of Contents for EKT CUBE 12M
- Page 1 Air Condition Automatic Drainage Pump Model: CUBE 12M User Manual Caution: Ensure the power source is connecting to uninterruptible power source. The condensate pumps ※ require power at all times. For exchanging an old condensate pump, check if the discharging tube is working properly then plug ※...
- Page 2 2. Suggest placing condensate pump under air conditioner condensate drain hose and within 15 cm space in between. Check the size and space before use a tool to drill two holes on the wall and place the condensate pump. 3. Insert the plastic screws heads to the holes, and use a screwdriver to fix the hanger board with the screws from the package.
