SAL PIXIE STS600BTAM Quick Start Manual

Smart Timer
Switch G3
STS600BTAM
1. Foreword
IMPORTANT: IN THE INTEREST OF PRODUCT PERFORMANCE AND SAFETY PLEASE READ THESE GUIDE AND WARRANTY INSTRUCTIONS BEFORE INSTALLING THE PRODUCT.
SAL products are designed in accordance with all mandatory International and Australian Standards, which require installation in accordance with AS/NZS3000
DIY
by a qualified installer and regular cleaning and maintenance of the equipment. Products are sold in accordance with the following instructions and SAL
standard terms and conditions of sale, available via www.sal.net.au.
Due to continued product and information updates, product data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee
unless expressly confirmed in writing by SAL at the time of order.The product wireframe drawings in this document are intended for illustration purposes only and may differ
from the final physical product. The installation instruction is subject to change without prior notice.
2. Product Introduction
PIXIE Smart Switch G3 is the third generation smart time delay switch, that
permits the supply of electricity to the load for a predetermined time duration
after being triggered.
2.1 Product Features
• Fits most branded switch plates
• Fits 1 to 6 gang wall plate installation
• Over temperature protection, overload protection, short circuit protection
• Automatically turns off after a predetermined time duration
• Time duration can be programmed manually and via the App. When
programming manually, only hourly timer functions can be set, the period is
from 1 hour to 24 hours. When programming via the App, the time duration
can be set from 1 minute to 24 hours
• Manual override function available
• Multiway control - When pairing multiple PIXIE multifunction control device
(e.g. SMF/BTAS) with the same smart Timer Switch, multiway timer control is
achieved
• LED indicator can be enabled and disabled in the App
• In the last 1 minute of timer mode, the LED indicator flashes quickly indicating
imminent time out
3. Specifications
3.1 Basic specifications
Model No. Input (V)/(Hz)
STS600BTAM
240/50
*Subject to the load's electrical characteristics, the load may require the inclusion of a load correction capacitor given in the product carton
3.2 Load rating
Resistive load
No. of switch (Incandescent/High voltage
halogen lamp)
600W
1
500W
2
3 500W
300W
4
300W
5
6 200W
4. Wiring and Installation
STS600BTAM - Standard wiring diagram
NEUTRAL
Light fitting
(Load)
ACTIVE
Min / Max loads Colour
9*/600W Blue
Inductive load
Capacitive load
(e.g. exhaust
(e.g. LED, CFL)
fan)
400VA 120VA
250VA 100VA
200VA 80VA
150VA 80VA
150VA 60VA
100VA 60VA
STS600BTAM - Optional wiring diagram
NEUTRAL
ACTIVE
STS600BTAM
The complimentary capacitor given in the carton operates as a load
correction device to assist improving compatibility performances.
Quick Start Guide
2.2 The package includes
• PIXIE Smart Timer Switch G3 * 1
• Extra key caps * 2
• Silicon spacer * 1

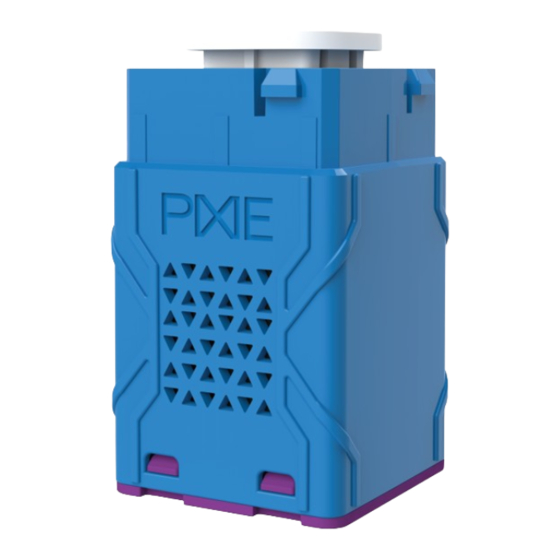

2.3 Product illustration*
Default key cap
(Interchangeable)
*All drawings shown are for illustration purpose only, actual product may vary due
to product enhancement.
Dimension L x W x H (mm)
42 x 24 x 24
3.3 Load compatibility
Compatible Loads
Incandescent lamp
240V halogen lamp
Low voltage halogen with electronic transformer
CFL
LED fixture
Light fitting
(Load)
Optional - load correction capacitor
in parallel with the load if required
M ASTE R
Version 1.0
Date 09/12/2022
• Load correction capacitor * 1
• Quick Start Guide * 1
LED indicator
Wireless
Bluetooth Mesh Technology
Yes
Yes
Yes
Yes
Yes
STS600BTAM
