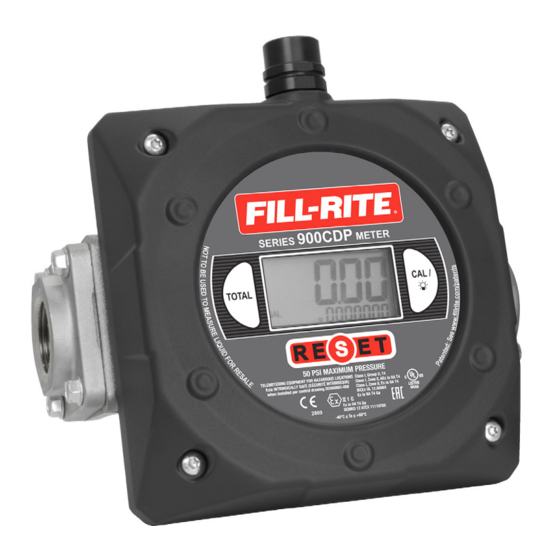

Summary of Contents for GORMAN-RUPP FILL-RITE 900CDP Series

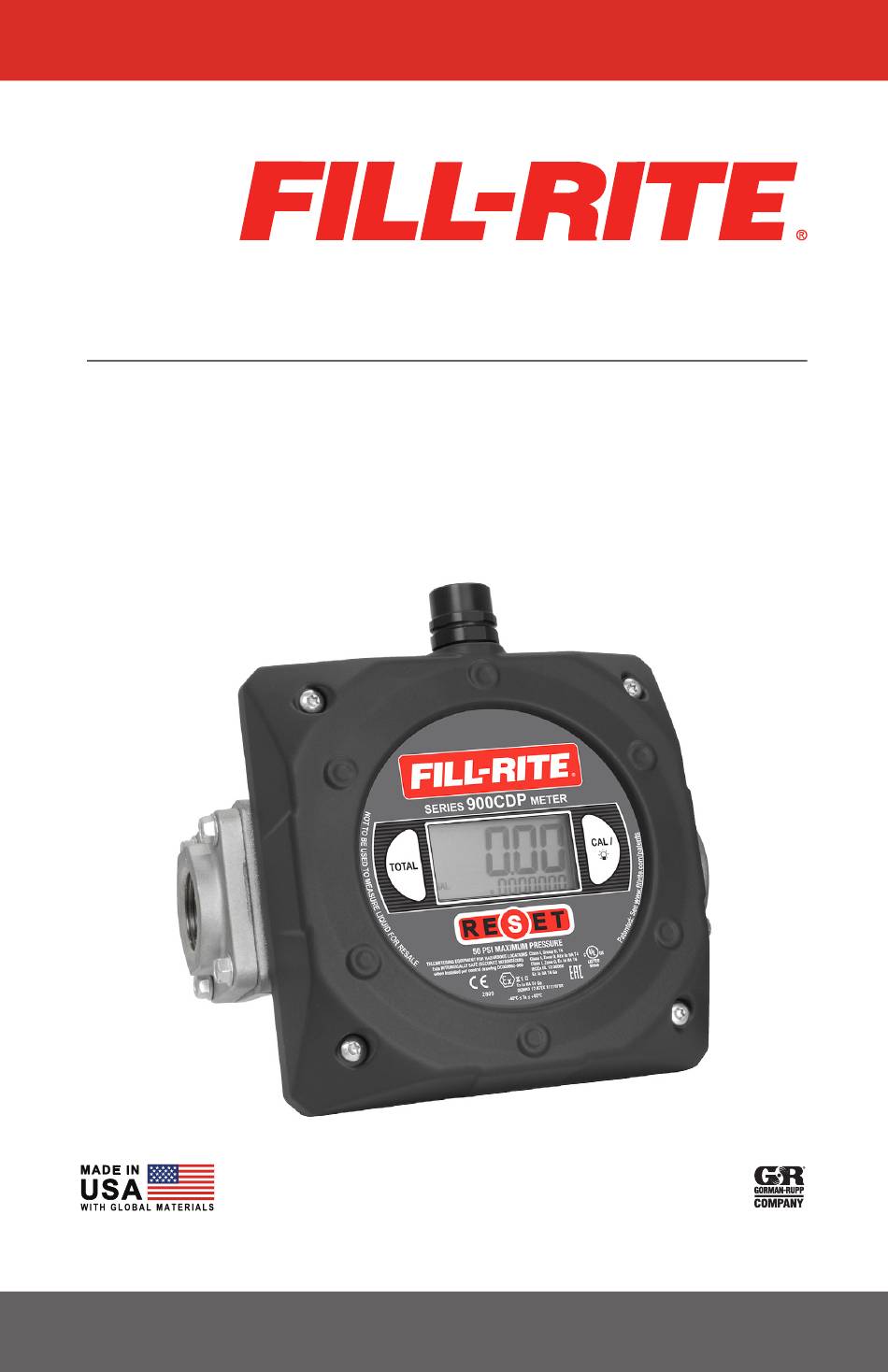

- Page 1 900CDP SERIES DIGITAL METER Installation and Operation Manual...
-
Page 2: Table Of Contents
INSTALLATION AND OPERATION MANUAL | 900CDP DIGITAL METER Table of Contents Thank You! Thank You! ..............2 About This Manual ............. 2 Thank you for your purchase of the Fill-Rite 900 Safety Information ............2 Series Digital Meter! Your Fill-Rite product comes Installation .............. -
Page 3: Installation
INSTALLATION AND OPERATION MANUAL | 900CDP DIGITAL METER WARNING To insure safe and proper operation of your equipment, it is critical to read and adhere to all of the following safety warnings and precautions. Improper installation or use of this product can cause serious bodily injury or death! 1. -
Page 4: Meter Calibration
INSTALLATION AND OPERATION MANUAL | 900CDP DIGITAL METER Meter Calibration Meter calibration is required upon installation, after disassembly, after significant wear, or when dispensing a different viscosity fluid. Calibration must be done between 6 and 40 GPM (23 and 151 LPM). Meter calibration can be easily changed by following the calibration procedure. -
Page 5: Operation Instructions
INSTALLATION AND OPERATION MANUAL | 900CDP DIGITAL METER 10. Pressing and holding the CAL button for 2 seconds before dispensing into a container will cause the meter to skip a fill operation and only change the unit of measure. NOTICE For maximum accuracy, try to get as close as possible to the dispensed volume without changing flow rate. -
Page 6: Low Battery Warning
INSTALLATION AND OPERATION MANUAL | 900CDP DIGITAL METER NOTICE “Deep Sleep” mode is designed to maintain a status of operational readiness while offering battery conservation. The meter should be placed in this mode when: • Flushing the unit so the dispensed volume is not counted. •... -
Page 7: Fluid Compatibility
INSTALLATION AND OPERATION MANUAL | 900CDP DIGITAL METER Fluid Compatilibity The 900CDP Series Meter IS compatible with the following fluids: Diesel Fuel, Bio-Diesel (up to B20), Gasoline, Kerosene, Mineral Spirits, Heptane, Hexane The 900CDP Series Meter IS NOT compatible with the following fluids: Bleach, Hydrochloric Acid, Ink, Sulfuric Acid, Salt Water CAUTION If in doubt about compatibility of a specific fluid, contact supplier of fluid to check for... -
Page 8: Repair
Meters not adhering to these specifications may be refused for service. Safety Testing Approvals The Fill-Rite 900CDP Series Meters have been tested for compliance to the standards set forth by Underwriters Laboratories (UL), UL Canada, ATEX, and other testing organizations. -
Page 9: Replacement Parts Information
INSTALLATION AND OPERATION MANUAL | 900CDP DIGITAL METER Replacement Parts Information Replacement parts can be obtained through any authorized Fill-Rite dealer. Be sure to use only genuine Fill-Rite replacement parts for your service and maintenance needs. 900 Series Digital Meter Replacement Parts Kit Kit Number Description Required Seal... -
Page 10: Electrical Installation Information
INSTALLATION AND OPERATION MANUAL | 900CDP DIGITAL METER Electrical Installation Information There are multiple electrical configurations for the 900CDP Series Digital Meter, featuring two different power sources. It is critical that the meter be installed and wired correctly to ensure correct, safe operation. WARNING Electrical wiring should be performed ONLY by a licensed electrician in compliance with local, state, and national electrical codes (NEC/ANSI/NFPA 70, NFPA30, and NFPA 30A in... -
Page 11: Installation Using The Intrinsically Safe Barrier
INSTALLATION AND OPERATION MANUAL | 900CDP DIGITAL METER Intrinsically 900CDP Battery Safe Barrier and Wiring Access Installation Using the Intrinsically Safe Barrier WARNING The instructions on this page are intended as an introduction to the proper wiring procedure for the Series 900CDP Digital Meter. Detailed wiring instructions and information are included in the 4 page document labeled: “FILL-RITE SERIES 900CDP METER, INTRINSICALLY SAFE FLOWMETER”... -
Page 12: Meter Installation (W/O Intrinsically Safe Barrier)
INSTALLATION AND OPERATION MANUAL | 900CDP DIGITAL METER Meter Installation (without Intrinsically Safe Barrier) WARNING The instructions on this page are intended as an introduction to the proper wiring procedure for the Series 900CDP Digital Meter. Detailed wiring instructions and information are included in the 4 page document labeled: “FILL-RITE SERIES 900CDP METER, INTRINSICALLY SAFE FLOWMETER”... -
Page 13: Reed Switch Information
INSTALLATION AND OPERATION MANUAL | 900CDP DIGITAL METER Reed Switch Information (cabinet model only) WARNING CONDITIONS FOR SAFE USE: The Remote Reed Switch Assembly Part No. SA000048-005 is provided with a non-metallic housing. Care must be taken to avoid ignition hazards due to potential electrostatic charging hazard. -
Page 14: Specific Conditions Of Use
INSTALLATION AND OPERATION MANUAL | 900CDP DIGITAL METER Specific Conditions of Use The following information is provided in compliance with UL standards to define specific safety parameters under which this appliance must be operated. WARNING Batteries may ONLY be replaced with the following: •... -
Page 15: Entity Parameter
INSTALLATION AND OPERATION MANUAL | 900CDP DIGITAL METER Entity Parameter The Series 900CDP Meter has the following entity parameters: Ui = 13.65 V Ii = 0.319 A Pi = 1.343 W Li = 0 mH Ci = 16.4uF WARNING Substitution of components will impair intrinsic safety! WARNING To prevent ignition of combustible or flammable atmosphere, disconnect power before servicing. - Page 16 Fill-Rite Company 8825 Aviation Drive Fort Wayne, Indiana 46809 USA T 1 (800) 720-5192 1 (260) 747-7524 F 1 (800) 866-4681 fillrite.com | sotera.com | gormanrupp.com DC001501-000 Rev. 5...
