Summary of Contents for ASCENTO RPC-15007

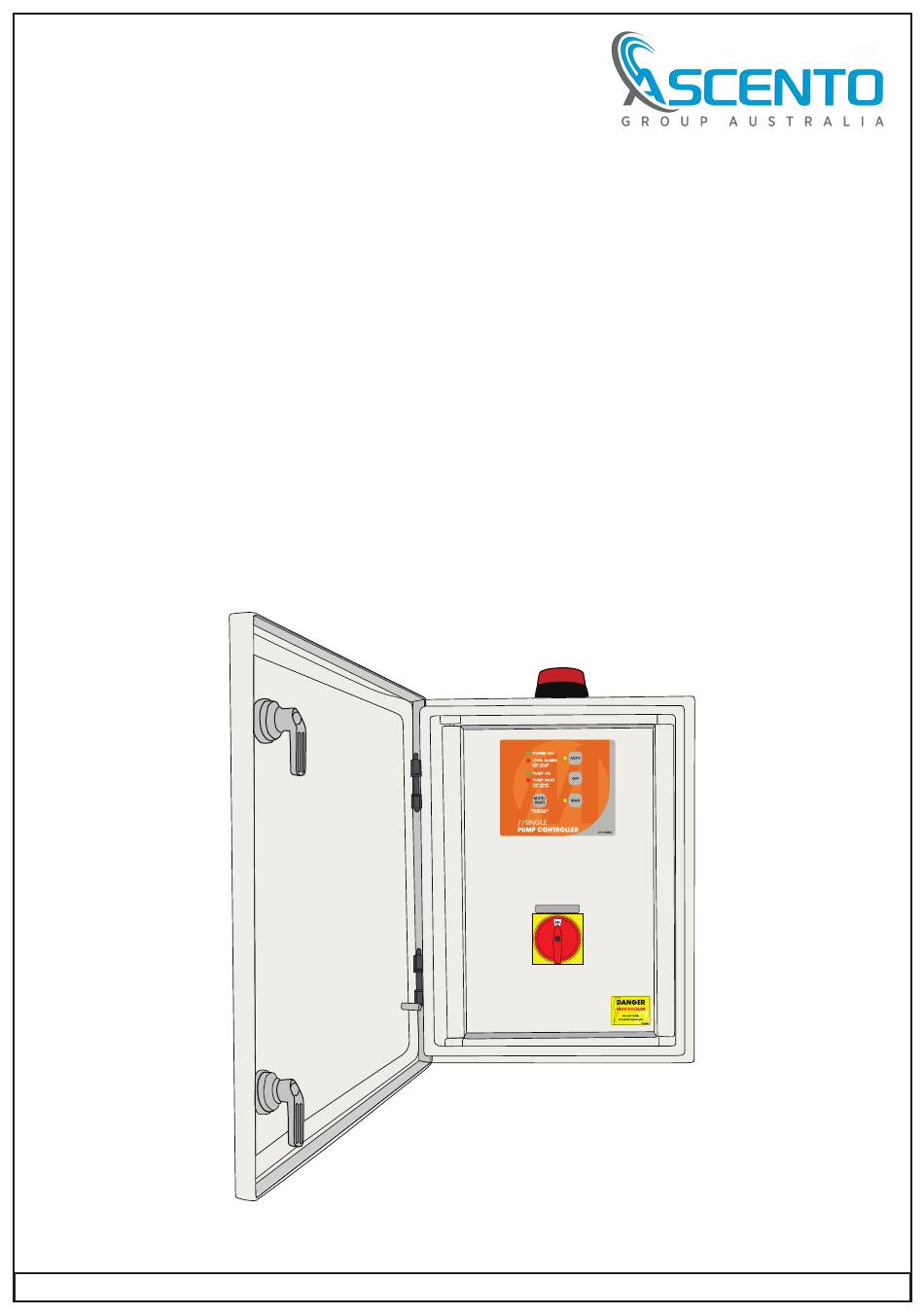

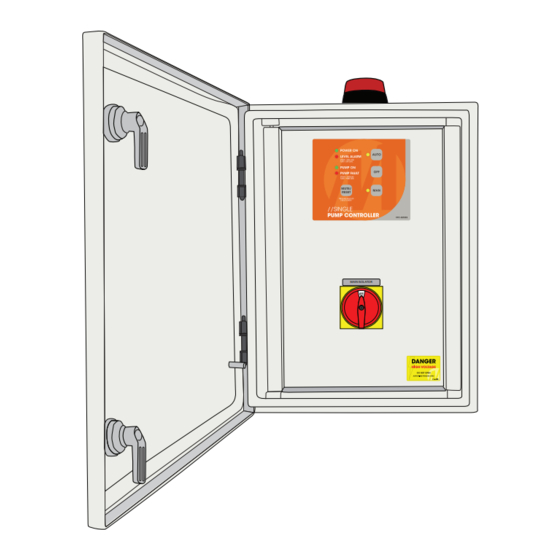

- Page 1 OP ERATI ON M ANUAL S in g le P um p Co ntro ll e r Ins tal lati on and O perating I ns tr uc ti ons MOD EL: R PC-15007 MAIN ISOLATOR DOC: RPC-15007 VER 2.0...
- Page 2 W ELCO ME TO SINGLE PU MP C ONTROL Your Single Pump Controller reflects the superior quality and attention to detail in design, engineering and manufacturing that has distinguished MATelec Products for decades. The controller incorporates the very latest in micro-processor technology, ensuring you, the owner/operator, of many years of functional, reliable and ‘user friendly’...
- Page 3 BRIDGE IF NOT REQUIRED INSTALLATION 415Vac MAINS POWER SUPPLY STAND BY BRIDGING HIGH LEVEL WIRE TO STOP MOUNTING REMAIN IN START LOW LEVEL LEVEL PUMP 415Vac 3 FLOAT SWITCH SYSTEM FRONT SIDE VIEW 1. Controller enclosure must be mounted in a vertical position. Input 1 Input 2 Input 3...
- Page 4 OPERA TIO N This controller can perform control functions for most Single Pump pumping applications. It is more than likely that the control parameters have already been set up for your particular application, however, hereunder you will find details of the setup and configuration options. There are 6 DIP switches located on the lower side of the control module, which allows for selecting “mode”...
- Page 5 The basic logic on which a High or Low Level Alarm is determined, is set out in the Table below: Input 1 Input 2 Input 3 Input 4 Pump Alarm State Low Level Pump Stop Pump Start High Level Closed Open/Closed Open Open...
- Page 6 In pressure pump mode some of the optional features are disabled, including maximum run alternation, anti-seize and maximum idle timers Mode ‘Current Loop’: Level Transducer (4-20mA) Configuration In order to activate current loop mode the enclosure must be opened and jumper J10 moved to the “current loop enabled”...
- Page 7 C IRCUIT D IAGRAM CONTACTOR COIL 12Vdc A1 A2 12Vac 240Vac 2 Amp CIRCUIT BREAKER TRANSFORMER R1/1 MAIN ISOLATOR INPUT 1 INPUT 2 INPUT 3 INPUT 4 COMMON STROBE BUZZER FAULT SWITCH SWITCH SWITCH SWITCH 12Vdc 12Vdc VOLT FREE 415Vac PUMP...
- Page 8 A pump fault/overload has will confirm if on) the pump is occurred. set to Manual Pumping Mode FLASHING A prime loss fault has occurred. DISTRIBUTED BY: INSTALLATION DATE: SERIAL NUMBER: ASCENTO GROUP AUSTRALIA reserves the right to alter technical specifications without notice.
