Deutronic Elektronik GmbH
Deutronicstr. 5, D - 84166 Adlkofen
Tel.:
+49 8707 920-0
Fax:
+49 8707 1004
E-Mail: sales@deutronic.com
http://www.deutronic.com
3AC: D-IPS 350/3C - D-IPS 500/3C
Important Note:
®
Deutronic D-IPS Manual - EN
D-IPS® und DEUTRONIC® sind eingetragene Marken der Deutronic Elektronik GmbH. Technische Änderungen und Irrtümer vorbehalten.
D-IPS® and DEUTRONIC® are registered trademarks of the Deutronic Elektronik GmbH. Technical modificationses and mistakes reserved.

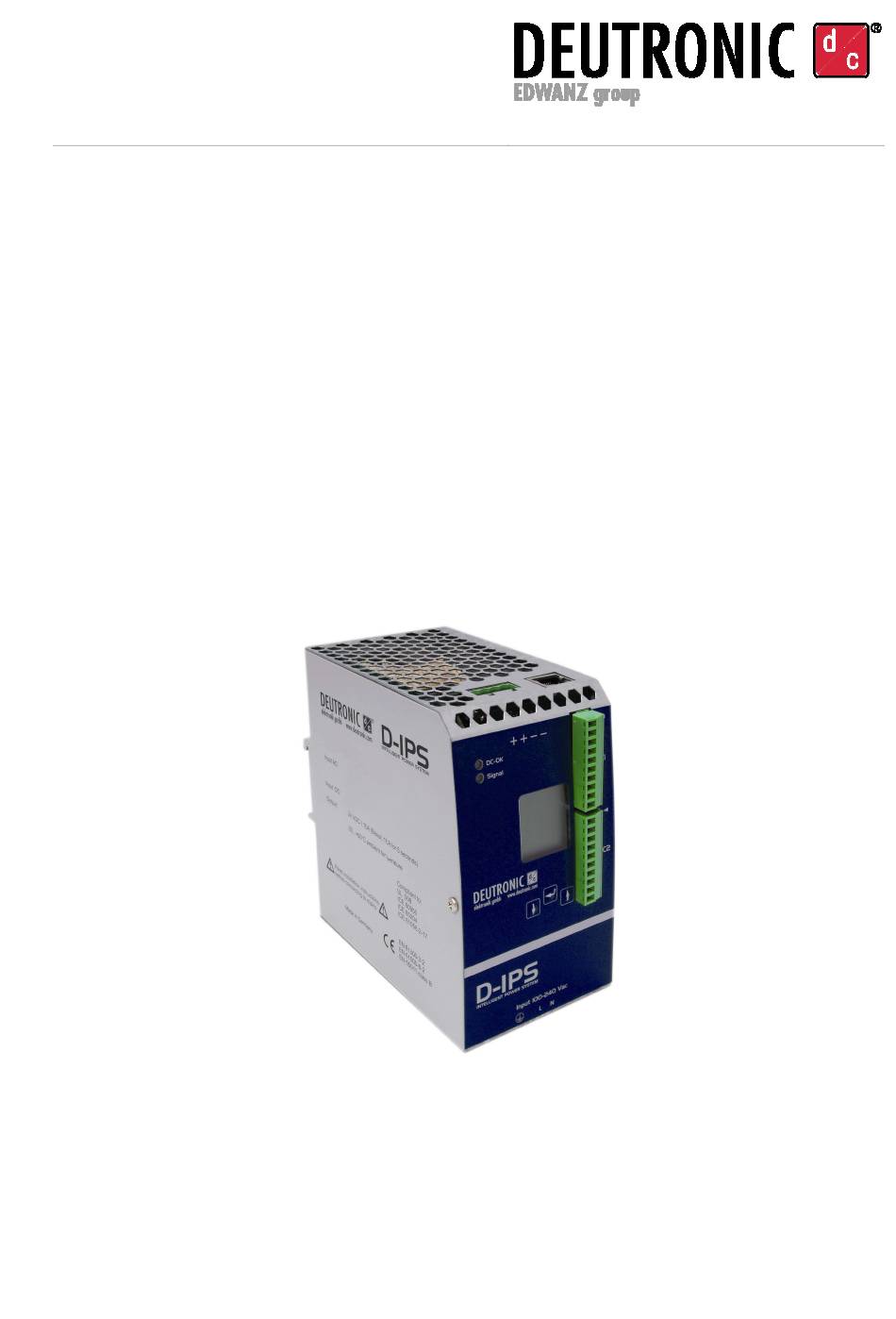

D-IPS Manual
for the power supply
1AC: D-IPS 250C/500C
®
- Controllable Version -
Only qualified personnel is allowed to use the device for specified
application.
Read the instruction manual carefully and pay attention to the safety
instructions and manufacturer´s requirements in any case!
Last updated: 07.12.2020
®
®
®
Page 1 of 20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEUTRONIC D-IPS 250C and is the answer not in the manual?

Questions and answers

Summary of Contents for EDWANZ group DEUTRONIC D-IPS 250C

  • Page 1 Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com ® D-IPS Manual for the power supply ® 1AC: D-IPS 250C/500C ® ® 3AC: D-IPS 350/3C - D-IPS 500/3C - Controllable Version - Important Note: Only qualified personnel is allowed to use the device for specified application.

  • Page 2: Table Of Contents

    Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Contents GENERAL SAFETY NOTES ..................3 Technical data ........................ 4 Connections and controls ....................4 Installation ........................5 Initial operation - configuration, controls and displays ............. 6 Configuration of the source for output voltage and current ..........

  • Page 3: General Safety Notes

    Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com 1) GENERAL SAFETY NOTES ® The D-IPS power supplies are rack mounting power supplies for the use in industrial  applications.

  • Page 4: Technical Data

    Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com 2) Technical data For detailed technical data such as input voltage, needed input fuse / required circuit breaker etc. please refer to the data sheet. This data sheet you can find at the internet under www.deutronic.com or on request anytime available at Deutronic directly.

  • Page 5: Installation

    Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com 4) Installation DIN-rail mounting: Mounting: Dismounting: Hang up the device with Unlock the snap mechanism the DIN-rail guide into the with a screwdriver.

  • Page 6: Initial Operation - Configuration, Controls And Displays

    Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Connecting cable: Cable cross-sections of 0,2mm to 2,5mm flexible or rigid can be used. Pay attention for a sufficient cord diameter. Remove insulation of the cable ends to 8mm approximately.
  • Page 7 Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Description of the display: In the basic variant the device has following reference values –default options (data sources) - for each of the output variables (current and voltage) Source Internal Values can be entered on the front panel by the buttons...

  • Page 8: Configuration Of The Source For Output Voltage And Current

    Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com 6) Configuration of the source for output voltage and current The output voltage and the output current can be adjusted by the following sources: Internal input Buttons on the unit ...

  • Page 9: B) Source Input For The Current By Buttons

    Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com After selecting the desired source it will take over when „ENTER“-button is pressed. After a successful takeover of the source the display shows „Ok“. When the display shows„no“...

  • Page 10: C) Buttons Input Of The Reference Values Of The Output Sizes At Internal Source

    Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com After selecting the desired source it will take over when „ENTER“-button is pressed. After a successful takeover of the source the display shows „Ok“. When the display shows„no“...

  • Page 11: Programming Options (For Oem Customers)

    Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com 7) Programming options (for OEM customers) The following described device features and –functions can be programmed at Deutronic in according to customer specification optionally and supplied as a customer specific variant 7.

  • Page 12: Input/Output-Interface

    Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com 8) Input/Output-Interface Digitally controlled secondary / Output Status Connector C1: Configuration Function and level DIGITAL-OUT-1 High, max. 20mA DIGITAL-OUT-2 High, max. 20mA DIGITAL-OUT-3 OC*, max.

  • Page 13: Communication Via Rs-232 Or Ethernet

    Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Control / Sensing Connector C2: Configuration Function and level Relay1 Make contact Relay1 -ANALOG-IN-1 Spannung/Voltage +ANALOG-IN-1 Spannung/Voltage 0..10VDC Control voltage -ANALOG-IN-2 Strom/Current +ANALOG-IN-2 Strom/Current...

  • Page 14: Command Structure - Description Of Communication

    Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Network-connection RJ45 Transmission standard Ethernet, IEEE 802.3 Protocols (supported) TCP/IP, UDP Data rate max. 10 / 100 Mbps (Auto-Sensing) ® For further information about Ethernet communication with the D-IPS controllable power supplies please contact our sales department.
  • Page 15 Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Command structure: Control commands and replies are transferred in the form of ASCII-character chains. It is used as start character the <STX> - as last character <ETX> A distinction is made between uppercase and lowercase.
  • Page 16 Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com ® Command list of D-IPS - C series 250W, 350W, 500W: Running system commands: DEV:GO Description: Power module will be activated Return value: <ACK>...
  • Page 17 Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Source changes of nominal value for voltage and current: Voltage source: SORV:INT Description: Switching to the internal input of nominal value for voltage (entered value by buttons on the display) Return value: <ACK>...
  • Page 18 Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Periphery control: PER:DIN1? Description: State of digital input 1 Return value: „SET“ / „ CLEAR“ PER:DIN2? Description: State of digital input 2 Return value „SET“...

  • Page 19: Notes

    Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Notes ® Deutronic D-IPS Manual - EN Last updated: 07.12.2020 Page 19 of 20 D-IPS® und DEUTRONIC® sind eingetragene Marken der Deutronic Elektronik GmbH. Technische Änderungen und Irrtümer vorbehalten. D-IPS®...

  • Page 20: Annex - Accessories

    Deutronic Elektronik GmbH Deutronicstr. 5, D - 84166 Adlkofen Tel.: +49 8707 920-0 Fax: +49 8707 1004 E-Mail: sales@deutronic.com http://www.deutronic.com Annex - accessories Software, mounting bracket, output clamps, RS232 adapter etc. can be found on our webpage www.deutronic.com. Service Center / Repair Do not open this device! All needed connections and setting elements for operation are accessible from outside.
