HDMIXWF15D
WIRELESS HDMI SENDER KIT HD 1080P 15M
TX (Transmitter)
RX (Receiver)

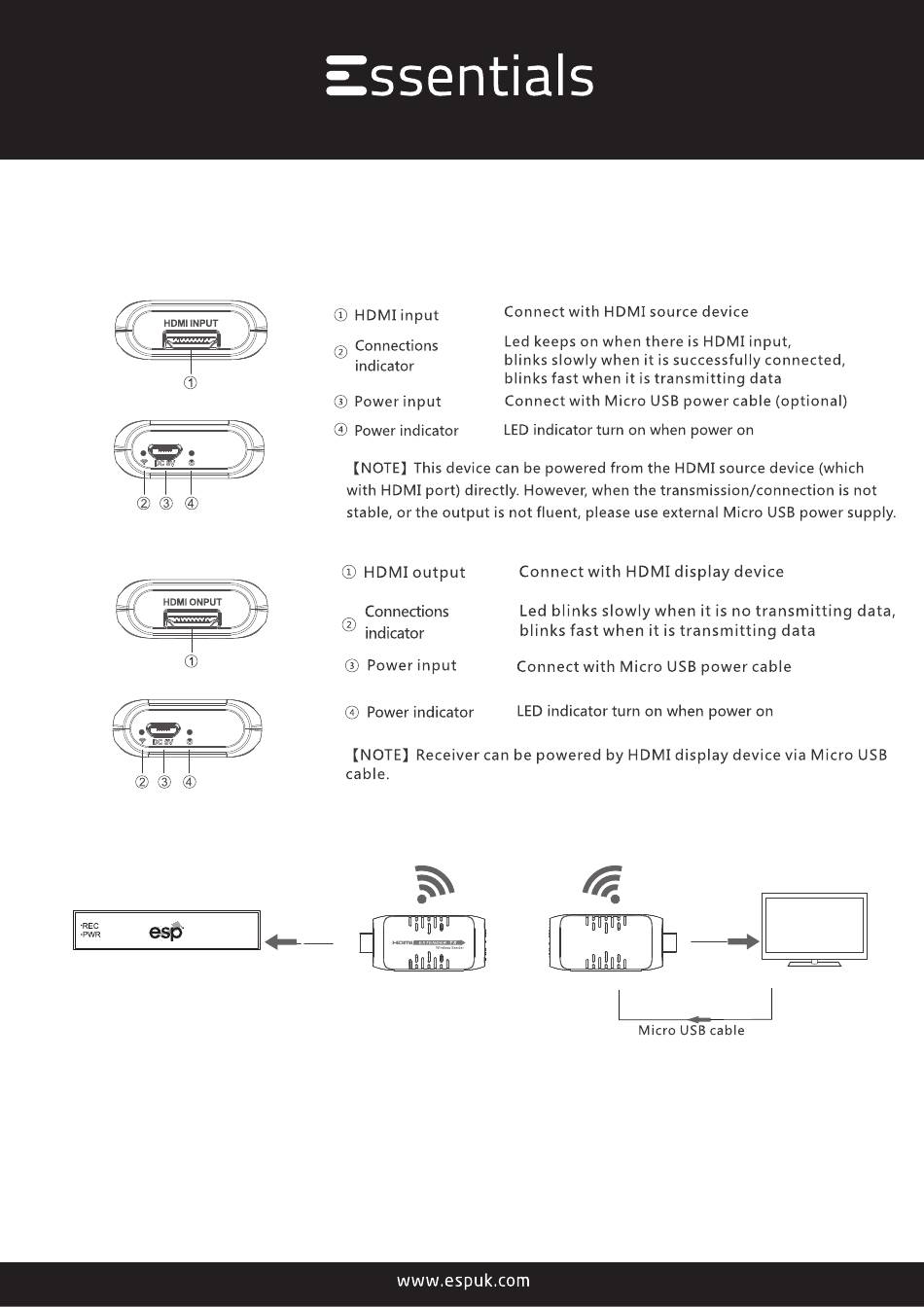

System Set-up Example
CCTV DVR / NVR
Quick Start Guide:
• Ensure there is a signal output from the HDMI source (connect a monitor directly)
• Connect the RX to a monitor and the TX to the HDMI source
• Connect the HDMI source to the TX, the image will display.
Please note: if the HDMI source changes resolution whilst connected to the TX, the TX will
need to be power cycled to auto adjust to the new resolution
HDMI
HDMI
Monitor
Advertisement
Table of Contents
Summary of Contents for Essentials HDMIXWF15D
- Page 1 HDMIXWF15D WIRELESS HDMI SENDER KIT HD 1080P 15M TX (Transmitter) RX (Receiver) System Set-up Example HDMI HDMI CCTV DVR / NVR Monitor Quick Start Guide: • Ensure there is a signal output from the HDMI source (connect a monitor directly) •...
- Page 2 Support Guide: Transmitter and receiver are not connected • Ensure power is applied to TX and RX • Ensure the correct HDMI input / output have been used on the monitor and HDMI source Connection Indicator LED is active, but no signal from the HDMI source is displayed •...
