Summary of Contents for Kogan KAHFSBS592A

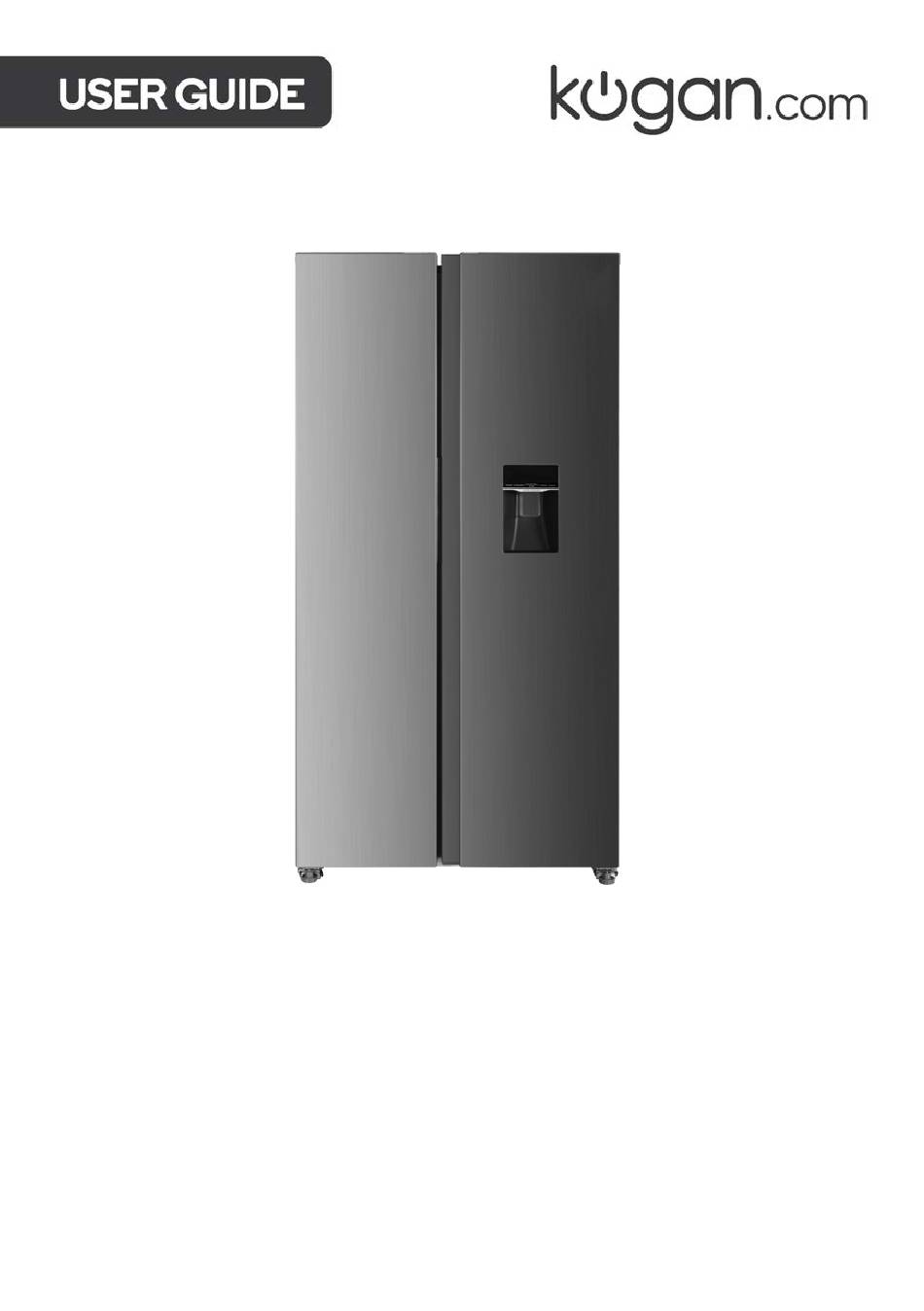

- Page 1 592L SIDE BY SIDE FRIDGE WITH WATER DISPENSER (REFRIDGERATOR-FREEZER) KAHFSBS592A & KAHFSBS592B...
-
Page 2: Table Of Contents
Safety & warnings Overview Installation Operation Before first use Cleaning & care Troubleshooting Notes... -
Page 3: Safety & Warnings
SAFETY & WARNINGS ENSURE YOU HAVE READ THIS USER GUIDE CAREFULLY BEFORE USE AND RETAIN THE USER GUIDE FOR FUTURE REFERENCE. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save this user guide and make ensure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety. - Page 4 Do not alter the specifications or modify this product in any way. • If the power cord shows any signs of damage, cease use immediately and contact help.Kogan.com for support. • This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments.
- Page 5 Daily use • Do not place hot items on the plastic parts of this appliance. • Do not place food products directly against the rear wall of the refrigerator. • Frozen food must not be re-frozen once it has been thawed out. •...
- Page 6 • Unpack the appliance, inspect all wiring and components for any signs of damage. If so, do not connect the appliance and contact help.Kogan.com for support. • After unpacking, it is recommended to wait at least 4 hours before connecting the appliance to power.
- Page 7 Environment Protection This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with regular household waste. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations of your local authorities.
-
Page 8: Overview
OVERVIEW Air duct LED top light Freezer Fridge shelves shelves Fridge door Freezer door rack rack Water tray Freezer drawers Crisper Drawer Convertible cover room cover Convertible room Adjustable feet Note: The above diagram is for reference only. Appliance may differ slightly. -
Page 9: Installation
INSTALLATION • Remove all packaging material before using the refrigerator. This includes the foam base and all adhesive tape holding the refrigerator accessories inside and outside. • Clean both the inside and outside of the refrigerator with a damp cloth. A small amount of neutral detergent can be added to warm water to wash the cloth and continue wiping the appliance with clean water. - Page 10 Space Requirement • Allow enough space for the door(s) to open without fouling. • Ensure that the refrigerator has least 50mm clearance above and at least 50mm on the sides and back. This ensures the refrigerator door can open or close conveniently and avoids heat build-up.
- Page 11 Levelling the refrigerator Rotate the adjustable feet clockwise feet to raise the fridge and rotate them counter- clockwise to lower it. Door Adjustable foot Adjustable foot Location • The appliance should be installed well away from sources of heat such as radiators, cookers, direct sunlight etc.
- Page 12 Door removal Over the life of the appliance and before disposal it may be required to remove the doors from the appliance. Tools required: Philips screwdriver, Flat bladed screwdriver. • Ensure the unit is unplugged and completely empty. • It is highly recommended that 2 people handle the unit during removal and reassembly.
-
Page 13: Operation
OPERATION Control Panel CONVERTIBLE MODE FREEZER FRIDGE LOCK 3s ZONE WATER DISPENSER Buttons A. Press to select the operation mode from ECO, HOLIDAY, SUPER FREEZING and USER'S SETTING (no symbol in display). Press to adjust the temperature of the freezer compartment (left side) from -14°C to -22°C. - Page 14 Display ECO mode: Use the mode button to select ECO Mode. The icon will illuminate and flashes for 5 seconds. The refrigerator will set the temperature of both compartments automatically according to ambient temperature. Pressing the “Freezer” or “Fridge” button while in this mode will have no effect and will cause the ECO icon to flash 3 times in alarm.
- Page 15 Temperature setting recommendations Environment Temperature Temperature Setting Fridge set on 2˚C Summer Freezer set on -20˚C Fridge set on 4˚C Normal Freezer set on -18˚C Fridge set on 5˚C Winter Freezer set on -18˚C Daily use Position different food in different compartments according to be below table. Refrigerator compartments Type of food •...
- Page 16 Thawing Frozen food prior to being used can be thawed in the fridge compartment or at room temperature, depending on the time available. Movable shelves The walls of the refrigerator are equipped with a series of runners to allow the shelves to be positioned as desired.
-
Page 17: Before First Use
BEFORE FIRST USE Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap to remove the typical smell of a new appliance, then dry thoroughly. Cleaning the water tank Before using the water dispenser for the first time, remove and clean the water tank located inside the refrigeration compartment. - Page 18 Filling the water tank Open the lid on the top of the water tank. Fill the water tank with drinkable water up to the 3L line. Close the water tank lid. Dispensing water To dispense water, gently push the dispenser pad using a glass or container. To stop the water flow, pull your glass away from the dispenser pad.
-
Page 19: Cleaning & Care
CLEANING & CARE Cleaning the interior To maintain hygiene and avoid contamination, the interior and interior accessories, should be cleaned regularly. Wash the interior and all internal accessories with lukewarm water and some neutral soap. Important! • Do not use detergents or abrasive powders as these will damage the finish. •... - Page 20 Food storage • The appliance should be in the coolest area of the room, away from heat producing appliances or heating ducts and out of direct sunlight. • Let hot foods cool to room temperature before placing them in the appliance. •...
-
Page 21: Troubleshooting
TROUBLESHOOTING Caution! Before troubleshooting, disconnect the power supply. Any troubleshooting not outlined in this user guide must only be performed by a licenced trade professional. Important! During normal operation this appliance may generate noises (compressor & refrigerant circulation etc.) Problem Possible cause Solution Plug is not plugged in or is... - Page 22 If problems persist, contact help.Kogan.com for support. Disposal This marking indicates that this appliance should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it...
-
Page 23: Notes
NOTES... - Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
