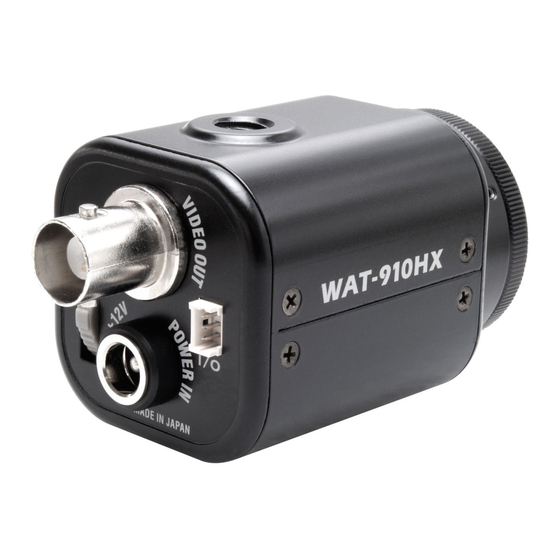

Watec WAT-910HX User Manual

Multi-function nir sensitive camera
Hide thumbs Also See for WAT-910HX:
Table of Contents

Advertisement

Quick Links

Download this manual
WAT-910HX
WAT-910HX
WAT-910HX
WAT-910HX
OSD USER MANUAL
OSD USER MANUAL
OSD USER MANUAL
OSD USER MANUAL
Rev. 1.00
Watec Co., Ltd.
Watec Co., Ltd.
Watec Co., Ltd.
Watec Co., Ltd.
January 23, 2013
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WAT-910HX and is the answer not in the manual?

Questions and answers

Related Manuals for Watec WAT-910HX

Summary of Contents for Watec WAT-910HX

  • Page 1 WAT-910HX WAT-910HX WAT-910HX WAT-910HX OSD USER MANUAL OSD USER MANUAL OSD USER MANUAL OSD USER MANUAL Rev. 1.00 Watec Co., Ltd. Watec Co., Ltd. Watec Co., Ltd. Watec Co., Ltd. January 23, 2013...
  • Page 2 Change History Change History Change History Change History Rev. No. Date Changes Remarks 1.00 2013.01.23 Initial Release...

  • Page 3: Table Of Contents

    【 【 【 【 Contents Contents 】 】 】 】 Contents Contents 1. 1. 1. 1. Introduction Introduction Introduction Introduction ・・・・・・・・・・・・・・・・・・ 4 4 4 4 2. 2. 2. 2. OSD MENU OPERATION OSD MENU OPERATION OSD MENU OPERATION OSD MENU OPERATION ・・・・・・・・・・・・...

  • Page 4: Introduction

    1.Introduction 1.Introduction ・ The WAT-910HX user manual describes the functions and the adjustment method using the On Screen Display (OSD). ・When the settings of the WAT-910HX are changed according to the WAT-910HX user manual, check to see that the operation and the effects of the changes made to the camera are acceptable.

  • Page 5: Osd Menu Operation

    2.OSD MENU OPERATION 2.OSD MENU OPERATION 2.OSD MENU OPERATION The functions and parameter settings of WAT-910HX can be changed by OSD(On Screen Display). When operating OSD, Jog Switch is used. See the picuture below for the detailed function of 3 keys.
  • Page 6 Please refer to the following model operation pictures on the basic Jog Switch usage. AGC is highlighted in the second picture from the top, and these pictures explain what happens when 3 buttons are controlled. Press 1)UP&RIGHT (Selecting SENS UP) Initial Press 3)ENTER Press 3)ENTER...
  • Page 7 From the next page, each button is written as follows. 1)UP&RIGHT is written as "UP key", and 2)DOWN&LEFT is written as "DOWN key". (When the keys are used for up-and-down movement.) In addition, 1)UP&RIGHT is written as "RIGHT key", and 2)DOWN&LEFT is written as "LEFT key". (When the keys are used for right-and-left movement.) 3)ENTER is written as "ENTER key".

  • Page 8: Setup Menu(Top Menu) ・・・・・・・・・・・ 8 8 8

    3.SETUP MENU(TOP MENU) 3.SETUP MENU(TOP MENU) 3.SETUP MENU(TOP MENU) 3.SETUP MENU(TOP MENU) When pressing ENTER key, SETUP menu will appear on the screen. ENTER key 3.1 EXPOSURE MENU 3.1 EXPOSURE MENU 3.1 EXPOSURE MENU 3.1 EXPOSURE MENU When adjusting EXPOSURE settings, move the cursor to EXPOSURE and press ENTER key. Press UP/DOWN button to choose one of the items in EXPOSURE, press the ENTER key to select, and change it with LEFT/RIGHT key.

  • Page 9: Shutter

    3.1.1 SHUTTER 3.1.1 SHUTTER 3.1.1 SHUTTER 3.1.1 SHUTTER Select Shutter Speed(or Shutter Mode) with LEFT/RIGHT key. The default setting is EI. Shutter Mode Details Shutter Speed x256 x128 Slow speed shutter Selected number of fields x 1/60s(EIA)or1/50s(CCIR) will be the calculated fixed shutter speed in seconds.

  • Page 10: Sens Up

    3.1.2 SENS UP 3.1.2 SENS UP 3.1.2 SENS UP 3.1.2 SENS UP When selecting EI(electronic iris) or 1/60(1/50) in SHUTTER, Slow speed shutter can be used to adjust exposure. Use LEFT/RIGHT key to select ON/OFF. When pressing ENTER key after selecting ON, the maximum number of fields under the SENS UP operation can be selected.

  • Page 11: Agc

    3.1.3 AGC 3.1.3 AGC 3.1.3 AGC 3.1.3 AGC AGC Value can be changed. Use LEFT/RIGHT key to setup AGC Value. During selecting OFF, when pressing ENTER key, SUB MENU for MANUAL GAIN Settings appears. The default setting is HIGH. When selecting OFF, AGC is fixed to 6dB as default. AGC Mode (Sub Menu) Details...

  • Page 12: Blc

    3.1.4 BLC 3.1.4 BLC 3.1.4 BLC 3.1.4 BLC Select Backlight operation on the menu. Traditional Backlight Compensation(BLC) mode and High Light Suppress Backlight(HSBLC) mode can be selected. Use LEFT/RIGHT key to select OFF/BLC/HSBLC. When BLC/HSBLC is selected, press ENTER to show Sub Menu. The default setting of BLC is OFF.
  • Page 13 1 1 1 1 How HSBLC effects on image when changing LEVEL LEFT/RIGHT key LEVEL=0 LEVEL=4 LEVEL=8 2 2 2 2 How to set up the BLC/HSBLC area (1)POSITION Setting The position of the effective BLC/HSBLC area can be set on this Setting.

  • Page 14: 3Dnr Menu

    3.2 3DNR MENU 3.2 3DNR MENU 3.2 3DNR MENU 3.2 3DNR MENU Three-dimensional noise reduction(3DNR) can be set on this menu. Use LEFT/RIGHT key to select ON/OFF. When ON is selected, press ENTER key to show Sub Menu. The default setting is ON, and the default level is 50. LEFT/RIGHT ENTER key LEFT/RIGHT key...

  • Page 15: Wdr Menu

    3.3 WDR MENU 3.3 WDR MENU 3.3 WDR MENU 3.3 WDR MENU The dynamic range of dark and/or bright part is expanded by digital processing. Select WDR function OFF/USER1/USER2 with LEFT/RIGHT key. When USER1/USER2 is selected, press ENTER key to show Sub Menu. The default setting is OFF.

  • Page 16: Adjust Menu

    3.4 ADJUST MENU 3.4 ADJUST MENU 3.4 ADJUST MENU 3.4 ADJUST MENU Use this setting to adjust the image quality. Select ADJUST and press ENTER key to show Adjust menu. Use UP/DOWN key to select one of the lists on the menu, and use LEFT/RIGHT key to adjust.

  • Page 17: Gamma

    3.4.2 GAMMA 3.4.2 GAMMA 3.4.2 GAMMA 3.4.2 GAMMA 3 3 3 3 GAMMA characteristic is adjustable from USER , 0.05 to 1.0 (0.05 steps). Use LEFT/RIGHT key to adjust GAMMA. The default setting is 0.45. LEFT/RIGHT key GAMMA=USER GAMMA=0.05 GAMMA=0.45 GAMMA=1.00 Please select a proper gamma value to match a monitor's characteristics.

  • Page 18: Functions Menu

    3.5 FUNCTIONS 　 　 　 　 MENU 3.5 FUNCTIONS MENU 3.5 FUNCTIONS 3.5 FUNCTIONS MENU MENU The digital image adjustment can be set. When pressing ENTER key on FUNCTIONS, FUNCTIONS menu will appear. Use UP/DOWN key to select one of the lists on the menu and press ENTER key.

  • Page 19: Zoom

    3.5.1.3 ZOOM 3.5.1.3 ZOOM 3.5.1.3 ZOOM 3.5.1.3 ZOOM Digital zoom function is available. Use LEFT/RIGHT key to select ON/OFF. When pressing ENTER key on ON, Sub Menu will appear. The default setting is OFF. When selecting ON, x1.0 is the default value of the magnification, and 0 is the default value of PAN and TILT. LEFT/RIGHT ENTER key Sub Menu　→...

  • Page 20: Neg.image

    3.5.1.4 NEG.IMAGE 3.5.1.4 NEG.IMAGE 3.5.1.4 NEG.IMAGE 3.5.1.4 NEG.IMAGE Select Negative image (NEG.IMAGE) function ON/OFF with LEFT/RIGHT key. The default setting is OFF. LEFT/RIGHT 3.5.2 MOTION 3.5.2 MOTION 3.5.2 MOTION 3.5.2 MOTION Motion detection can be set. Use LEFT/RIGHT key to select ON/OFF. When pressing ENTER key on ON, Sub Menu will appear. The default setting is OFF.
  • Page 21 MOTION (Sub Menu) Details － Motion detection is OFF. The present detection area can be selected. Select the area from Area1 AREA SELECT to Area4.Use LEFT/RIGHT key to select the area. The area presently selected can be shown with ON, or not shown with OFF. AREA DISPLAY Use LEFT/RIGHT key to select ON/OFF.

  • Page 22: Bpc

    3.5.3 BPC (Blemish Pixel Compensation) 3.5.3 BPC (Blemish Pixel Compensation) 3.5.3 BPC (Blemish Pixel Compensation) 3.5.3 BPC (Blemish Pixel Compensation) This section explains blemished pixel compensation function. The default setting of the slow shutter speed is x64, and the default level is 3. The procedure of compensation is as follows.

  • Page 23: Reset Menu

    3.6 RESET 　 　 　 　 MENU 3.6 RESET MENU 3.6 RESET 3.6 RESET MENU MENU Select RESET and press ENTER key, and RESET menu is displayed. Pressing ENTER key on OK in RESET menu will return the camera settings to the original factory settings. ENTER key 3.7 EXIT 　...

  • Page 24: Save Settings

    4. Save settings 4. Save settings 4. Save settings 4. Save settings All settings are saved when executing below. When pressing ENTER key on EXIT in the SET UP Menu, or on END in all Sub Menus. Saved settings are kept even after the camera is powered off. ENTER key ENTER key * OSD menu will be closed.

  • Page 25: Osd Menu Tree

    5.OSD Menu Tree 5.OSD Menu Tree 5.OSD Menu Tree 5.OSD Menu Tree ・SETUP MENU SETUP EXPOSURE 3DNR ADJUST FUNCTIONS RESET EXIT ・EXPOSURE MENU EXPOSURE x256,x128,x64,x32,x16,x8,x4,x2,EI,EIA:1/60(CCIR:1/50) SHUTTER (default : EI) ,FL,1/250,1/500,1/1000,1/2000,1/5000,1/10000,1/100000 SENS UP (default : ON) (default : x4) x2,x4,x8,x16,x32,x64,x128,x256 (default : HIGH) 6～41 (default : 6) HIGH...
  • Page 26 ・3DNR MENU 3DNR (default : ON) LEVEL 0～100 (default : 50) ・WDR MENU (default : OFF) USER1 L-LEVEL 0～15 (default : 3) H-LEVEL 0～15 (default : 13) USER2 (default : 9) L-LEVEL 0～15 H-LEVEL 0～15 (default : 11) ・ADJUST MENU ADJUST SHARPNESS 0～31...
  • Page 27 ・FUNCTIONS MENU FUNCTIONS EFFECT FREEZE OFF/ON (default : OFF) OFF/H-FLIP/V-FLIP/HV-FLIP FLIP (default : OFF) ZOOM (default : OFF) ZOOM x1.0～x32.0 (default : x1.0) -100～100 (default : 0) -100～100 TILT (default : 0) NEG.IMAGE OFF/ON (default : OFF) (default : OFF) MOTION AREA SELECT (default : AREA1)
  • Page 28 ・RESET MENU RESET RESET ・EXIT EXIT...
