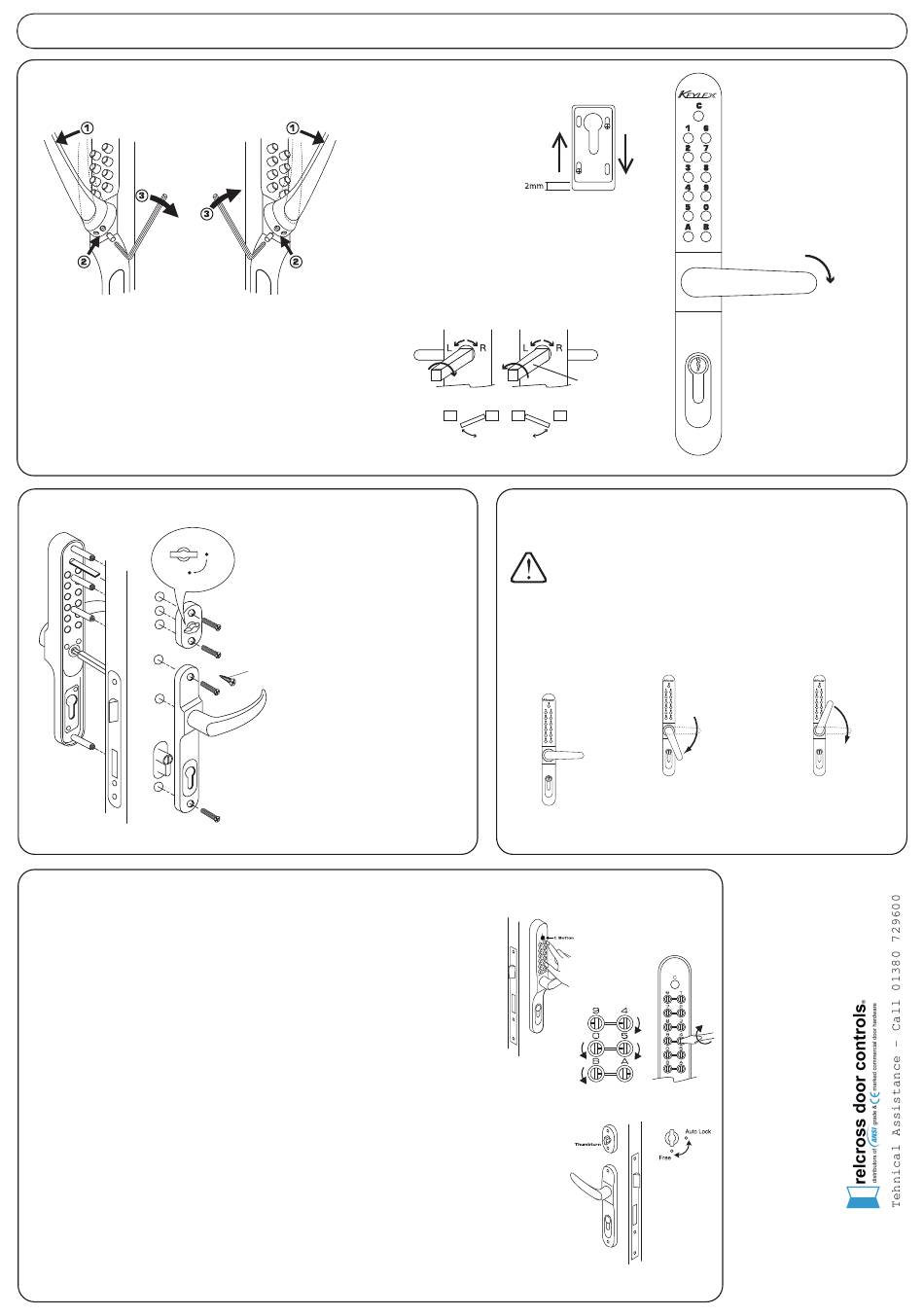

KEYLEX 700 (FP)
HANDING THE LEVER
LEFT
1. TO RELEASE THE LEVER FROM THE UPRIGHT POSITION, GRIP THE LOCK BODY
FIRMLY IN ONE HAND AND THE LEVER FIRMLY IN THE OTHER. MOVE THE LEVER
THROUGH 90 DEGREES TO EITHER THREE O'CLOCK OR NINE O'CLOCK (AS
REQUIRED).YOU WILL FEEL INITIALLY A STRONG DEGREE OF RESISTANCE DURING
THIS PROCEDURE.THIS IS ONLY THE CLUTCH MECHANISM 'KICKING-IN'. DO NOT
WORRY;YOU WILL NOT DAMAGE THE LOCK.
2. LIFT THE LEVER THROUGH 45 DEGREES UNTIL THE LEVER SHAFT HOLE LINES
UP WITH THE HOLE IN THE LEVER.
3. SET THE LEVER BY TIGHTENING THE GRUB SCREW WITH THE ALLEN KEY (BOTH
SUPPLIED IN THE HARDWARE PACK). ALLOW THE LEVER TO RETURN TO THE
HORIZONTAL POSITION.
OUTSIDE
Auto Lock
Free
*
*
REMOVABLE PILLAR
Clearing Codes
It is essential that any 'spurious' code be cleared before operation of the lock from the outside. The 'C' clear
button should be pressed as a precursor to the entry of your code.
Entering Codes
Codes should be ideally selected to contain between 3 and 6 digits and can include a mixture of letters and numerals.
Buttons may be pressed in any order and must be pushed firmly to engage the code.Once the correct code is entered
the lock may be used.If mistakes are made you may clear the code using the procedure described above.
Changing Codes
Code changing is fast and straightforward requiring only a slotted screwdriver once the lock body is removed from
the door. Each button is marked with a single line at right angles to the screwdriver slot with corresponding marks
adjacent on the back plate. Rotate the button to align the two marks thus setting that button as part of the code.
Setting the Passage Function
The passage function is standard with this version of the Keylex 700.
To change the status of the lock from auto lock to free, the correct code must be entered.While the door is ajar,
depress the outside lever and rotate the passage function snib clockwise 90°.The lock is now free from either side until such
time as the passage function snib is re-set (you do not need to re-enter the code to do this).
If you do not wish to use the passage function, you do not have to install it. Simply remove the two upper most brass pillars - you
will need a pair of pliers to release the 'Loc-Tite' securing them. Cut the free passage bar flush with the back of the lock body and
dispose of the thumbturn plate. Fix the lock at two points only through the inside lever plate.
Please note - where taller lock cases dictate, you must retain the mounting pillars and thumbturn to effect a secure fixing.
However, if you have removed the free passage bar the passage function will be ineffective.
NOTE - only authorised code holders can set the passage function feature. It is possible to modify the feature to include a
removable key to restrict the feature to 'key holders' only.
Key Override
The key override Euro profile cylinder is located at the base of the lock body and provides an override to the code for any key
holder. This facility is convenient to building owners or premises managers who may have a number of locks, each with
different user codes, to manage. Cylinders are not normally supplied with the Keylex 700, unless specifically ordered.
Cylinders can be provided keyed alike, to differ or under a mastered suite. Each cylinder is supplied with a minimum of two keys.
MECHANICAL DIGITAL LOCK W. PASSAGE TURN
ADJUSTING FOR KEYHOLE SPACING
BOTH ESCUTCHEONS ARE ADJUSTABLE BY
RIGHT
2MM VIA THE SCREWS ON THE REVERSE OF
EACH PLATE.
STANDARD ESCUTCHEONS ARE SUPPLIED
FOR LOCKS WITH CENTRES 70MM TO 72MM.
ALTERNATIVE SIZE (AND BLANK)
ESCUTCHEON PLATES ARE AVAILABLE
TO ORDER.
ROTATE THE QUADRANT SPINDLE CLOCKWISE OR ANTI-CLOCKWISE
TO SET THE REQUIRED HAND BEFORE FEEDING THROUGH THE LOCK
FOLLOWER.
ACCOMMODATE 8MM FOLLOWERS (AS REQUIRED).
INSIDE
INSTALLATION
1. PREPARE THE DOOR IN ACCORDANCE
WITH THE TEMPLATE. CHECK THE
BACKSET LENGTH CAREFULLY
AGAINST THE LOCK CASE TEMPLATE.
2. INSTALL THE LOCK CASE AND
STRIKE PRIOR TO INSTALLING THE
MAIN LOCK BODY.
3. MOUNT THE OUTSIDE LOCK BODY,
SELF
INSIDE LEVER PLATE AND FREE
TAPPING
PASSAGE TURN AS SHOWN AT EACH
SCREW
OF THE AVAILABLE POINTS.
4. REFER TO THE SECTION BELOW FOR
CODE SETUP. ENSURE THAT THE CODE
IS TESTED AND THAT THE LOCK
WORKS SATISFACTORILY BEFORE
ALLOWING THE DOOR TO CLOSE.
5. PLEASE REFER TO THE SECTION
BELOW FOR AN EXPLANATION OF
THE PASSAGE FUNCTION OPERATION.
LOCK OPERATION & FUNCTION DESCRIPTION
HANDING THE SPINDLE
USE THE PLASTIC SPINDLE BUSHING PROVIDED TO
SPINDLE
HANDING
LEFT
RIGHT
PROTECTING THE DIGITAL LOCK MECHANISM
NULLIFIES FORCED ATTACK OR VANDALISM FROM THE OUTSIDE
PROTECTS THE INTERNAL GEAR MECHANISM
RESETTING THE SLIPPED CLUTCH ON THE KEYLEX 700 IS STRAIGHTFORWARD. FOLLOW THE
PROCEDURE OUTLINED BELOW.
STANDARD
LEVER POSITION
INSTALLATION
IMPORTANT NOTE
THIS VERSION OF THE K700 INCLUDES A
FREE PASSAGE TURN, IF YOU DO NOT
WISH TO USE THIS FEATURE YOU MAY
CUT THE FREE PASSAGE BAR PRIOR TO
INSTALLATION, WHICH WILL RENDER THE
TURN INOPERABLE.
THERE IS A HAND TIGHT REMOVABLE
PILLAR ABOVE THE SPINDLE WHICH MAY
BE REMOVED TO ACCOMMODATE TALLER
LOCK CASES.WE HAVE PROVIDED A SELF
TAPPING SCREW TO FIX THE LEVER PLATE
AT THIS POINT AS NECESSARY (SEE
TEMPLATE).
HOW TO OPERATE THE LOCK USING
THE PRE-SELECTED CODE.
1. PRESS BUTTON "C"TO CLEAR ANY
SPURIOUS CODE.
2. PUSH APPROPRIATE BUTTONS
IN THE PRE-SELECTED CODE.
3. ROTATE THE LEVER DOWNWARD TO
OPEN THE DOOR.
SLIPPING CLUTCH MECHANISM
SLIPPED AND RESET POSITION
A SLIPPED CLUTCH
LIFT THE LEVER THROUGH 180 DEGREES
LEVER POINTS
TO RESET THE HORIZONTAL POSITION
DIRECTLY DOWN (AT 90
YOU WILL FEEL A 'CLICK' AS YOU LIFT.
DEGREES FROM THE
ALLOW THE LEVER TO FALL BACK TO
STANDARD POSITION)
THE HORIZONTAL POSITION.
