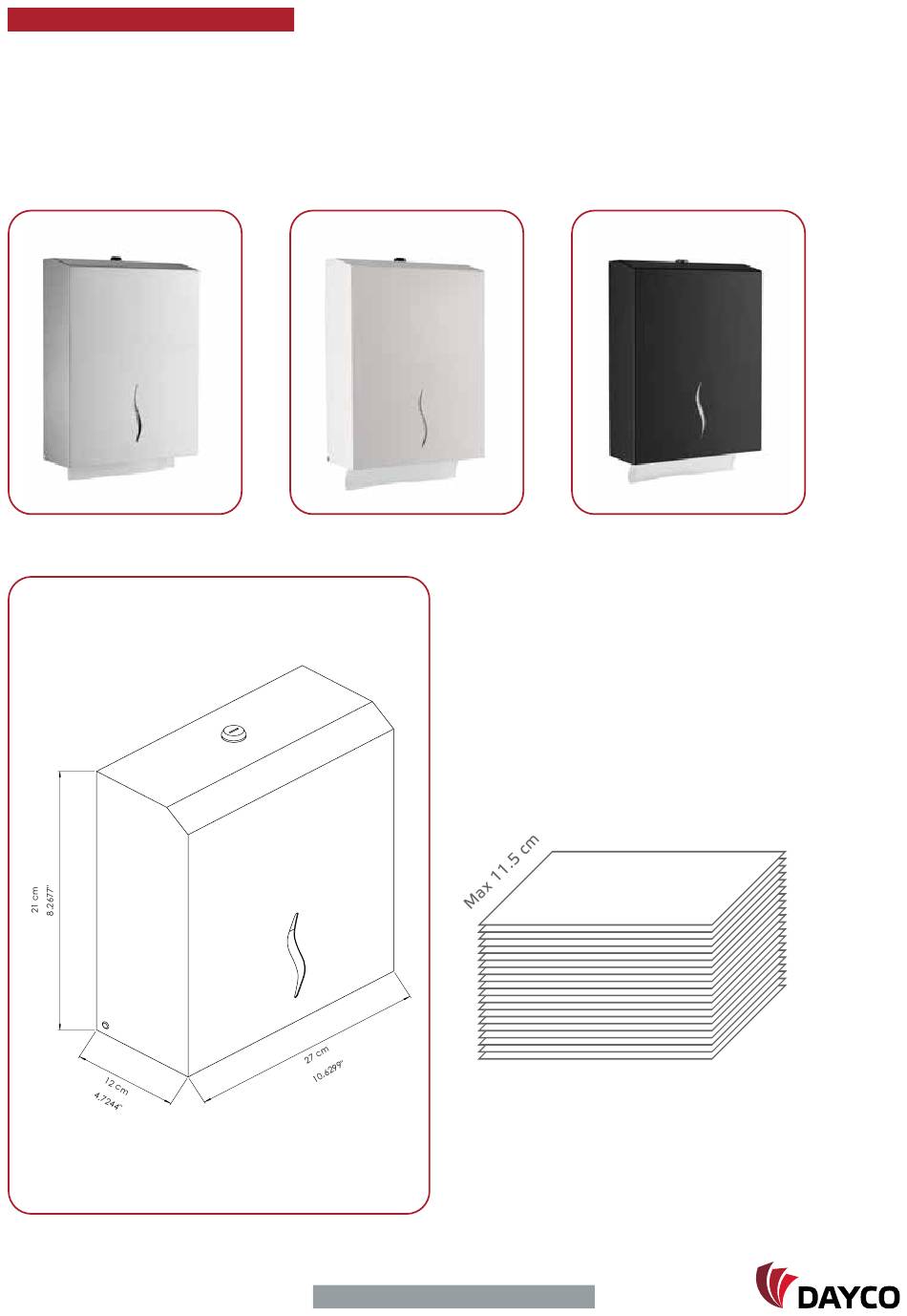

0 9 0 2 V / 0 9 0 3 V / 0 9 0 4 V
0902V / 0903V / 0904V
V Fold Paper Dispenser
0904V
0902V
0904VW
T E C H N I C A L D A T A S H E E T
0904VB
GENERAL DESCRIPTION
+
V Fold toilet paper dispenser made with stainless
steel 304 S.S and 430 S.S. 0.60 & 0.70 mm thickness.
+
Available in four type of finishes (white, black bright
and satine)
+
Useful for the public areas.
+
It is mounted with three steel 4 mm screws
(provided in the box) with their 8 mm plastic plugs
(also provided).
+
Metal lock sytem is exist to protect the paper inside
clean and safe.
Max 25 cm
V Fold Paper
COMPONENTS AND MATERIAL
+
0902V-300 pcs paper capacity Stainless Steel 304
satine finish
+
0902VA-300 pcs paper capacity Stainless Steel 430
satine finish
+
0902VP-300 pcs paper capacity Stainless Steel 304
bright finish
1 / 3
Advertisement
Table of Contents
Related Manuals for DAYCO 0902V
Summary of Contents for DAYCO 0902V
- Page 1 Metal lock sytem is exist to protect the paper inside clean and safe. Max 25 cm V Fold Paper COMPONENTS AND MATERIAL 0902V-300 pcs paper capacity Stainless Steel 304 satine finish 0902VA-300 pcs paper capacity Stainless Steel 430 satine finish 0902VP-300 pcs paper capacity Stainless Steel 304...
- Page 2 Insert the provided wall plugs and screw in the top two screws, leaving a slight gap for the dispenser to slot onto. 0904V 0902V T E C H N I C A L D A T A S H E E T...
- Page 3 CARTON INBOX PALLET GROSS PALLET GROSS PALLET CODE DIMEN. DIMEN. WEIGHT QUANTITY QUANTITY DIMEN. WEIGHT 0902V 300 pcs 27x12x21 cm 46x30x41 cm 11,5 kg 80x120x180 cm 290 kg 0903V 600 pcs 27x12x27 cm 57x30x41 cm 13,5 kg 80x120x220 cm 285 kg...
