Eclipse Magnetics Ultralift TP330 Quick Start Manual

Ultralift TP Magnetic Lifter
Designed for Thin Plate Lifting

Why Thin Plate Magnetic Lifter?

Thin plate cannot accept the magnetism from standard lifting magnets.
Using standard magnetic lifter on thin plate results in:
• Dramatically reduced performance
• Picking up sheets in multiples rather than separately
• Un-safe lifts

Ultralift TP offers:

• A lifting magnet designed for lifting thin plate safely
• SWL based on material thickness
• Guaranteed lifting of single plates
• Simple, quick operation
• Two sizes in the range: TP330 and TP660.
• Larger plates can be lifted using two lifting magnets on a spreader
beam

Spreader Beams

Eclipse Magnetics supply a range of spreader beams. These ensure
safe lifts are made at all times on longer products. We also produce
equipment for tilting the load through 90 degrees.

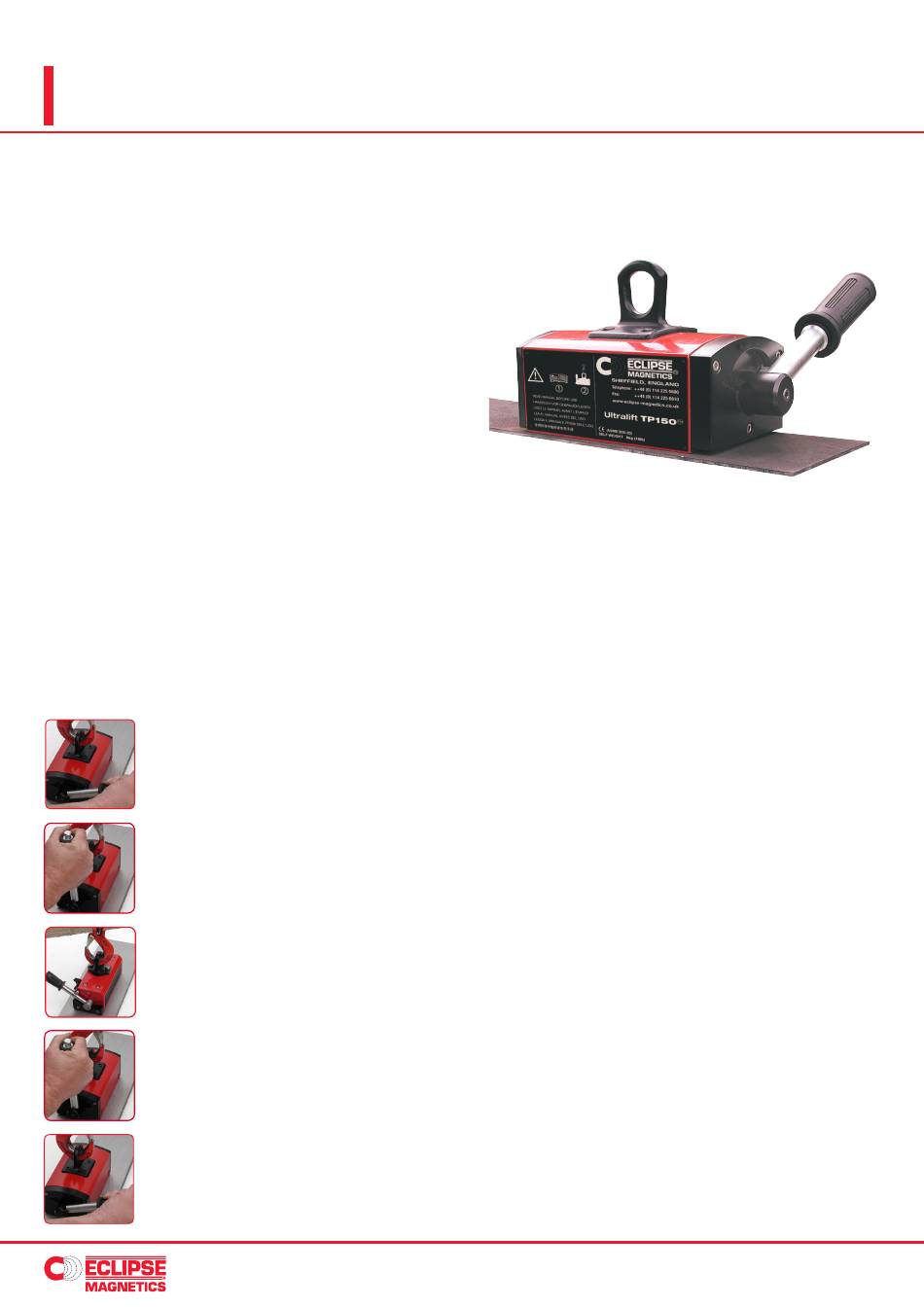

OPERATING INSTRUCTIONS

The lifter is in the OFF position
To Switch the lifter ON
Rotate the handle 120˚ anti-clockwise. Ensure the lever is securely locked
in place before commencing with the lift.
The lifter is in the ON position
To Switch the lifter OFF
Return the load to the floor or support.
Depress the plunger on the handle and rotate 120˚ clockwise to its stop
position.
Release the plunger to complete the switching process
A world leader in magnetic technology
Datasheet no. 303
