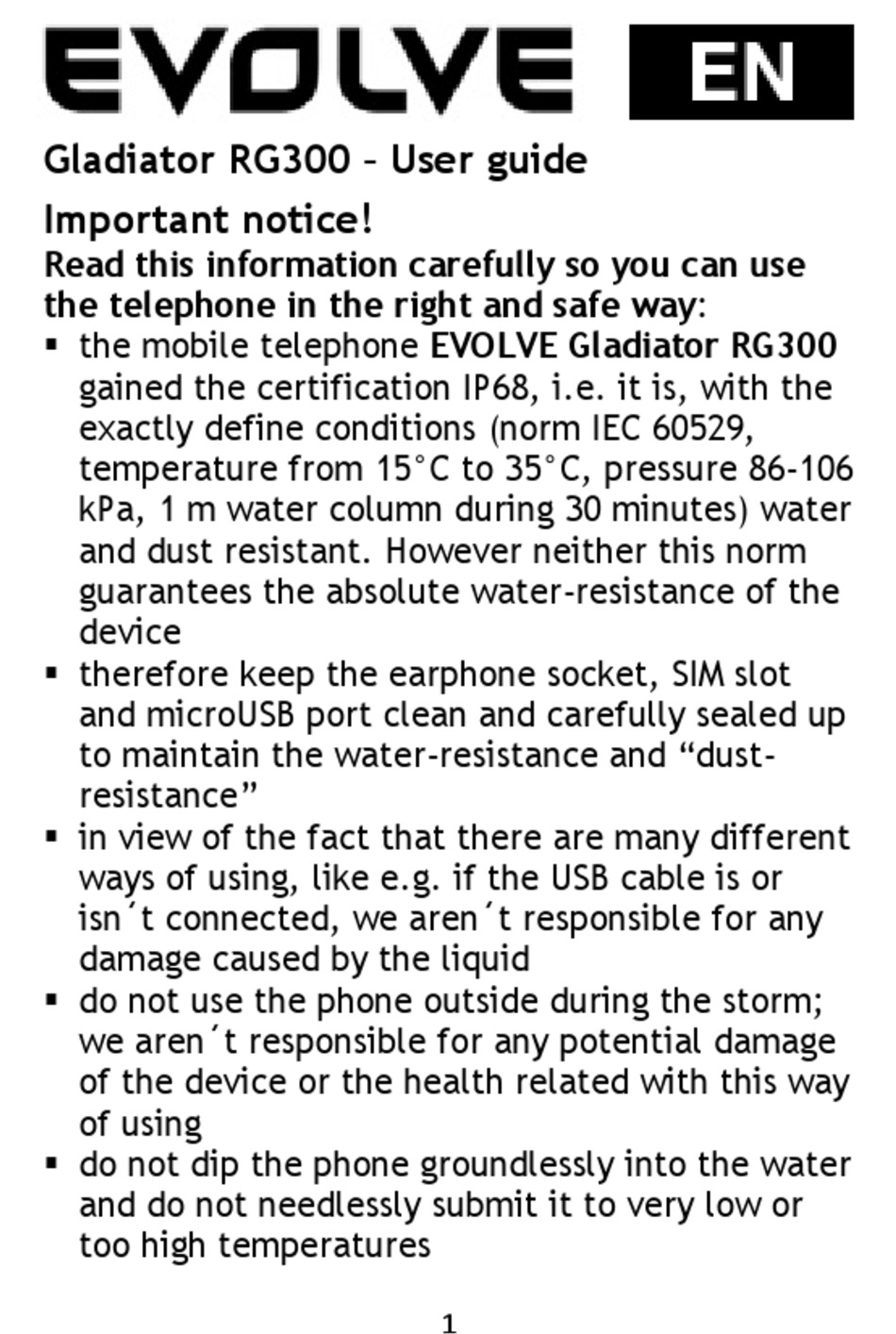

Gladiator RG300 – User guide
Important notice!
Read this information carefully so you can use
the telephone in the right and safe way:
 the mobile telephone EVOLVE Gladiator RG300
gained the certification IP68, i.e. it is, with the
exactly define conditions (norm IEC 60529,
temperature from 15°C to 35°C, pressure 86-106
kPa, 1 m water column during 30 minutes) water
and dust resistant. However neither this norm
guarantees the absolute water-resistance of the
device
 therefore keep the earphone socket, SIM slot
and microUSB port clean and carefully sealed up
to maintain the water-resistance and "dust-
resistance"
 in view of the fact that there are many different
ways of using, like e.g. if the USB cable is or
isn´t connected, we aren´t responsible for any
damage caused by the liquid
 do not use the phone outside during the storm;
we aren´t responsible for any potential damage
of the device or the health related with this way
of using
 do not dip the phone groundlessly into the water
and do not needlessly submit it to very low or
too high temperatures

Advertisement

loading
Need help?

Need help?

Do you have a question about the Gladiator RG300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Evolve Gladiator RG300

  • Page 1 Important notice! Read this information carefully so you can use the telephone in the right and safe way:  the mobile telephone EVOLVE Gladiator RG300 gained the certification IP68, i.e. it is, with the exactly define conditions (norm IEC 60529, temperature from 15°C to 35°C, pressure 86-106...
  • Page 2  repairing and the service are possible to accomplish only in the authorized service place for the phones EVOLVE (for more visit www.evolve-europe.com), otherwise you can damage your phone and it is not under warranty...
  • Page 3: Important Notice

    or changed without prior written agreement of the producer.  the producer/distributor reserves the right to make changes in this product against the state written in this manual without prior warning, because the product goes through the continual progress and improving. ...
  • Page 4 Inserting the SIM card Be careful at handling, insertion or taking the SIM card out. Before the installation or taking the SIM card out always make sure that the phone is switched off. Put the card according to the picture (contacts are downwards).
  • Page 5 If the service intervention is necessary, contact the authorized service place for the EVOLVE phones. Icons on display Indication of actual signal strength Indication of unread SMS Indication of all calls unconditional...
  • Page 6: Design And Functions

    Design and functions Description Notice Left functional Makes action described in the left down part of the display Right functional Makes action described in the right down part of the display For making the phone call of re- Enter key dialling the last phone call For ending the phone call or End key...
  • Page 7 In stand-by mode, the fast access Navigation keys to some operations Numeric keypad Entering the numbers Loudspeaker Light USB port Earphones input Microphone Switches off the battery Reset recharging The light key Loudspeaker Dialling and answering the phone call For right displaying of the caller, it is necessary to have the phone numbers on the phone list saved in the international format (+420 ….) Making the internal phone call...
  • Page 8 symbol “+” (double click of the key *) and then the country code that you need. After that you can start entering the numbers making the telephone number of the called person and for dialling the call press the key with the green telephone. Dialling the numbers from the phone list In the phone list search for the contact of the corresponding person and his or hers number and...
  • Page 9 Telephone menu Telephone list - displaying all the contacts saved in the telephone list. You can use the speed dials. Messages - enables read, write, send and receive the messages from short message service (SMS) or the multimedia message service (MMS). For SMS messages you can set up the mode, check the memory status, preferred storage, and so on.
  • Page 10 - Language: Choice from the available languages for the phone menu. - Preferred method of inserting: There is a selection of many types for inserting the text methods. It is possible to preset one of the methods of inserting as default for write or arrangement of the texts.
  • Page 11 activated, it must be entered at every switching on, otherwise only the SOS call would be possible to be made. - Notice: PIN code is used as the password to get SIM card to work. If the PIN code is entered incorrectly three times in succession, the SIM card gets locked.
  • Page 12 can set up to five different alarms, turn on/off, set the time, details as the type of reminder, tone, and so on. - Bluetooth – Switching on: activating/deactivating Bluetooth function. If the Bluetooth is switched off, all the Bluetooth connections are ended and you cannot send and receive data through the Bluetooth connection - My device: shows of the parameters of your device...
  • Page 13 Picture view - choose the photo and then in menu “Options” choose next operation Video recorder - press OK → then press the centre key to start video recording. By pressing the “Options”, you can set the parameters of video camera, video parameters, effects, the storage and default factory settings Video player - choose the required video and in menu “Options”...
  • Page 14: Problems Solving

    Don´t try to dismantle and repair the phone, you can lose the guarantee. EVOLVE – SERVICE WITHOUT WORRIES Service without worries saves your time and money. The warranty claims are thanks to the straight contact to the service dealt faster and the customer doesn´t have to travel anywhere.
  • Page 15 Your packet with the phone that you send to the service should include: the device packed against damage caused by transport (bubble wrap) – valid warranty card, event. the invoice containing IMEI of the device – the described defect – your contact (address, telephone number, email).
  • Page 16 The dialling Dial the number again. mistake. The credit is Contact the operator. used up. You have the Check the phone wrong number. number. The partial call failure The wrong Check the call blocking. setting. The service for Contact the operator your SIM card and get the SMS centre The SMS can´t...
  • Page 17: Declaration Of Conformity

    2200 DECLARATION OF CONFORMITY: Hereby, the company ABACUS Electric s.r.o. declares that this model EVOLVE Gladiator RG300 is in compliance with the requirements of the norms and regulations, relevant for the given type of device. The complete text of Declaration of conformity can be found at ftp.evolve-...
