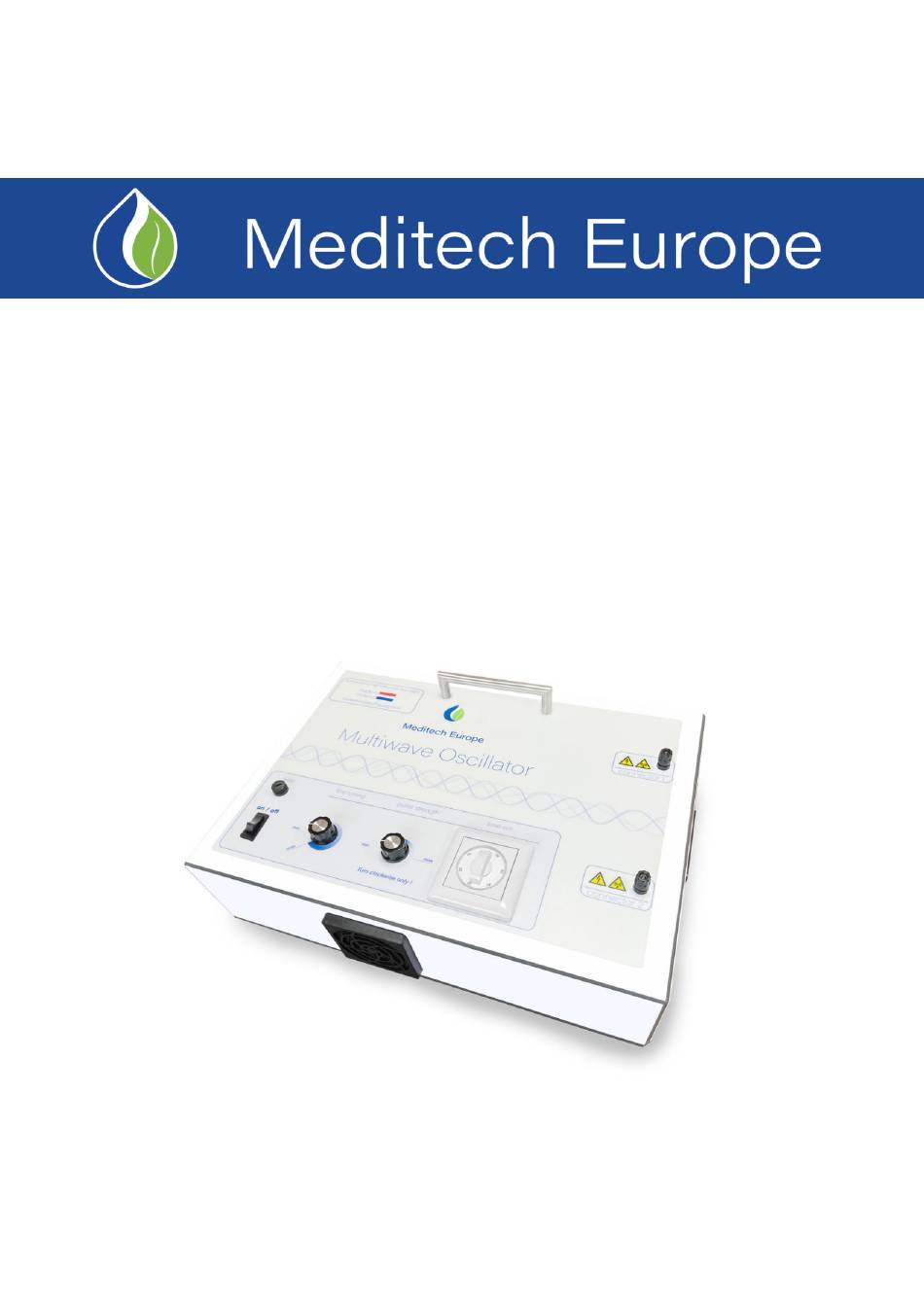

- Page 1 Operating Instructions MultiWave Oscillator (MWO) Original instructions Edition EN V1 2023/01...
- Page 2 Project Data : January 2023 Trade name : Meditech Europe B.V. Product name : MultiWave Oscillator (MWO) Product number : 100012 Model : 220/240 White Power : 220/240 V / 35 mA Manufacturer : Meditech Europe B.V. Autor : J.K.
-
Page 3: Table Of Contents
Safety regulations ..................7 Expansion and conversion ................ 8 Measures in an emergency ............... 8 Scope of supply ..................9 Possible accessories (available from Meditech Europe) ....10 Technical description ................11 Overview ....................11 Interfaces ....................11 Type plate ....................11 Transport .................... - Page 4 Operating the machine ................. 13 Switching the machine on ............... 13 Operating the machine ................13 Switching the machine off ............... 14 Troubleshooting ..................15 Decommissioning.................. 16 Decommissioning ..................16 Disposal and recycling ................16 Guarantee ....................17 EC Declaration of Conformity .............. 18 Edition EN V1 2023/01 4/18...
-
Page 5: About These Operating Instructions
About these operating instructions These operating instructions should be read in full before operating the Multiwave Oscillator (MWO) for the first time or if you have been authorised to perform other tasks using the MWO. Please contact Meditech Europe in case of any questions. -
Page 6: General Safety Regulations
In case of any doubt about the correct setup, please contact Meditech Europe. Use a Faraday cage (available at Meditech Europe) when the MWO is in use to prevent disruption of (mobile) networks, telephones, laptops and/or other electrical devices and networks in your vicinity. -
Page 7: Selection And Qualification Of Personnel
2.4 Selection and qualification of personnel The MWO is produced by Meditech Europe located in Emmeloord in the Netherlands. Meditech Europe employs only qualified personnel. 2.5 Position of safety devices Fig. 2.5 Red Circle = Fuse 2.6 Function of safety devices Fuse –... -
Page 8: Expansion And Conversion
Do not touch the cable connectors when the MWO is switched on. If the power cord is damaged it should be replaced with a special power cord available exclusively from Meditech Europe. Make sure the power cord hangs freely. 2.8 Expansion and conversion The device needs to be de-energised to connect any accessories. -
Page 9: Scope Of Supply
Scope of supply MultiWave Oscillator: Power cord: Edition EN V1 2023/01 9/18... -
Page 10: Possible Accessories (Available From Meditech Europe)
All available Meditech Europe accessories are connected to the MWO at the customer's own risk. Meditech Europe is not liable for misuse, incorrect use or damage caused by any use other than as described in this manual. The use of accessories not supplied by Meditech Europe will render the guarantee void. -
Page 11: Technical Description
Accessories may be connected to the device using cables. The device will transmit the voltage through the cables. 5.3 Type plate Fig. 5.3 Type Plate Manufacturer : Meditech Europe Details MWO : type and power Serial number : unique Edition EN V1 2023/01... -
Page 12: Transport
Transport The MWO should be handled with care. 6.1 Before the transport Meditech Europe will pack the MWO carefully for transport or pick- 6.2 Transporting the machine The device must be transported in the horizontal position. 6.3 Unpacking the machine The MWO should be unpacked with care. -
Page 13: Operating The Machine
Operating the machine 7.1 Switching the machine on Plug in the power cord. On/Off button - Turns the MWO on. The fans will be heard immediately. 7.2 Operating the machine Pulse Strength - This button adjusts the power of the MWO which makes it possible to determine the strength of the energy field. -
Page 14: Switching The Machine Off
7.3 Switching the machine off On/Off button - Turns the MWO off. The fans will switch off. Edition EN V1 2023/01 14/18... -
Page 15: Troubleshooting
After the MWO has been used for several years the spark gap requires replacing. This may be indicated by a metallic odour and noise. Fine tuning the MWO sound may also no longer be possible. Contact Meditech Europe and do not try to replace it yourself. Edition EN V1 2023/01 15/18... -
Page 16: Decommissioning
Unplug the machine. Disconnect any accessories from the connectors. 9.2 Disposal and recycling Contact Meditech Europe for disposal and recycling of the MWO and accessories. Meditech Europe is pleased to receive all used products for disposal and recycling according to environmental regulations. -
Page 17: Guarantee
Guarantee Meditech Europe will guarantee this product for 2 years. Opening the MWO device by anyone other than a Meditech Europe specialist will render the guarantee void. Meditech Europe is not liable for misuse, incorrect use or damage caused by any use other than as described in this manual. -
Page 18: Ec Declaration Of Conformity
Ms. J. Kraaij / Operational Director MACHINE DESCRIPTION AND IDENTIFICATION Generic name: Multiwave Oscillator Use: The energy fie d c an p r o duce a w e l ln ess e xper i e nce fo r...
