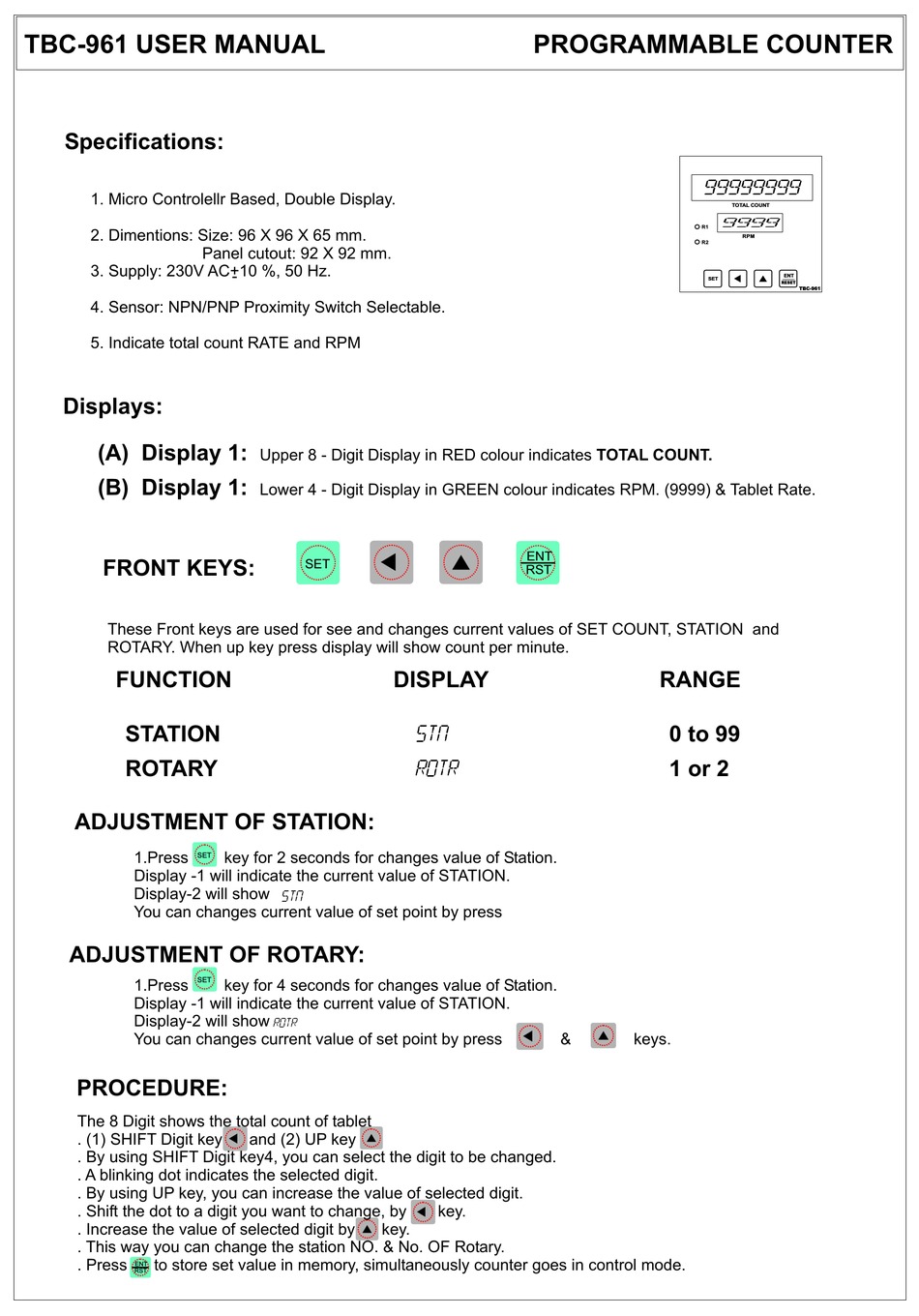

SWASTIK TBC-961 User Manual

TBC-961 USER MANUAL

Specifications:

1. Micro Controlellr Based, Double Display.
2. Dimentions: Size: 96 X 96 X 65 mm.
3. Supply: 230V AC+10 %, 50 Hz.
4. Sensor: NPN/PNP Proximity Switch Selectable.
5. Indicate total count RATE and RPM

Displays:

(A) Display 1:
(B) Display 1:

FRONT KEYS:

These Front keys are used for see and changes current values of SET COUNT, STATION and
ROTARY. When up key press display will show count per minute.
FUNCTION
STATION
ROTARY

ADJUSTMENT OF STATION:

1.Press
SET
Display -1 will indicate the current value of STATION.
Display-2 will show
You can changes current value of set point by press

ADJUSTMENT OF ROTARY:

SET
1.Press
Display -1 will indicate the current value of STATION.
Display-2 will show
You can changes current value of set point by press

PROCEDURE:

The 8 Digit shows the total count of tablet
. (1) SHIFT Digit key
. By using SHIFT Digit key4, you can select the digit to be changed.
. A blinking dot indicates the selected digit.
. By using UP key, you can increase the value of selected digit.
. Shift the dot to a digit you want to change, by
. Increase the value of selected digit by
. This way you can change the station NO. & No. OF Rotary.
. Press to store set value in memory, simultaneously counter goes in control mode.
ENT
RST
Panel cutout: 92 X 92 mm.
-

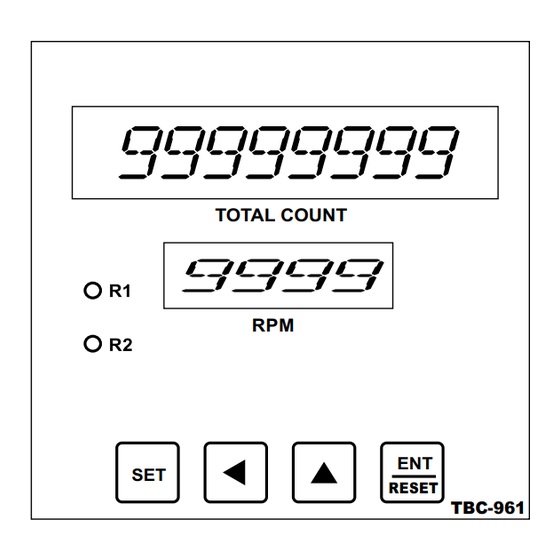

Upper 8 - Digit Display in RED colour indicates TOTAL COUNT.
Lower 4 - Digit Display in GREEN colour indicates RPM. (9999) & Tablet Rate.
SET
key for 2 seconds for changes value of Station.
Stn
key for 4 seconds for changes value of Station.
Rotr
and (2) UP key
PROGRAMMABLE COUNTER
ENT
RST
DISPLAY
Stn
Rotr
key.
key.
99999999
TOTAL COUNT
9999
SET
RANGE
0 to 99
1 or 2
& keys.
RPM
ENT
RESET
TBC-961
