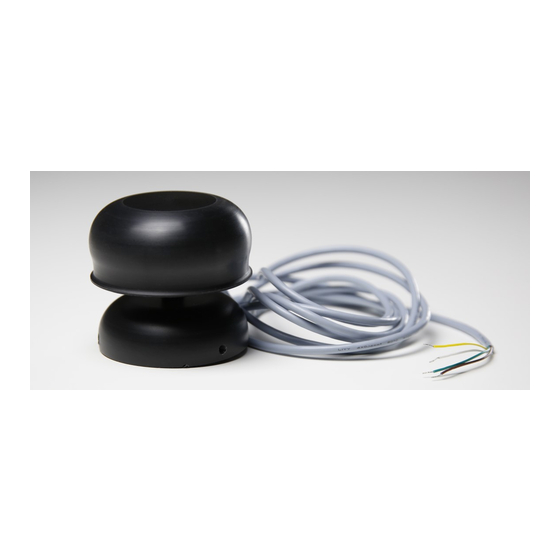

Summary of Contents for Calypso Instruments ULP NMEA 2000

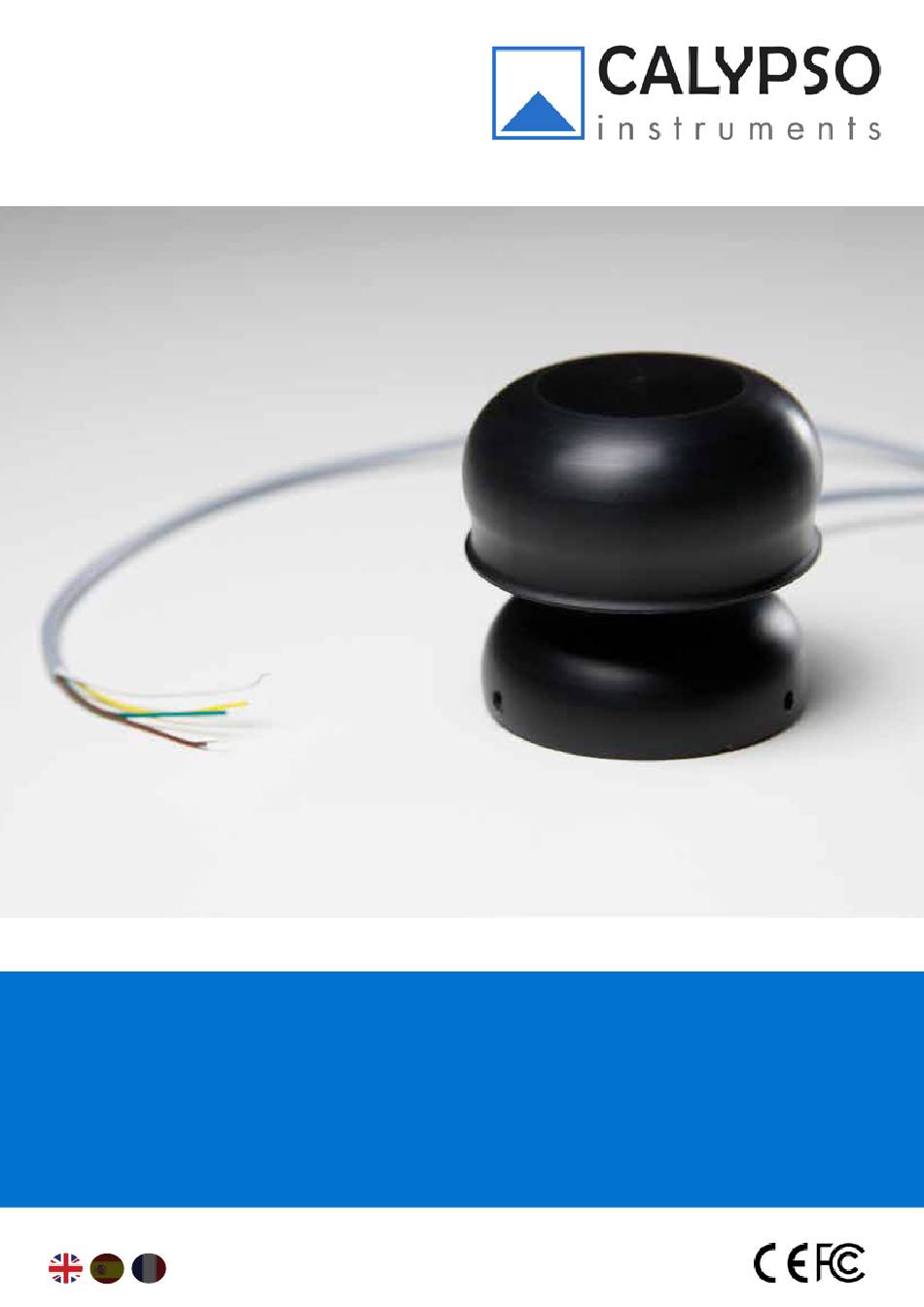

- Page 1 w w w . c a l y p s o i n s t r u m e n t s . c o m CALYPSO ULTRA-LOW-POWER ULTRASONIC STD (ULP STD) WIND METER User manual ULTRASONIC Portable User manual 0809 English version 1.0 26.04.2022...
- Page 2 If you want to know more about our new ULP STD wind meter, please keep reading or visit our website www.calypsoinstruments.com...
-
Page 3: Product Overview
0. Index 1. Product overview 1. Product overview Thank you for choosing the ULP STD wind meter from Calypso Instruments. This is the first model or 2. Package content our generation II, representing an important technology breakthrough condensing an extensi- 3. -
Page 4: Technical Specifications
3. Technical specifications RS485/MODBUS RTU Output: The ULP has the following technical specifications: White Yellow GND (Power -) DATA (B -) Brown Green 3.1. Dimensions · Diameter: 68 mm (2.68 in.) VCC (Power +) DATA (A +) · Height: 65 mm (2.56 in.) UART/TTL Output: White Yellow... - Page 5 It can be mounted either on a plate (inferior screws) or on a tube (lateral screws). Noth mark position Make sure the north mark is perfectly aligned to the north. *Non applicable to the ULP NMEA 2000 model. *Non applicable to the ULP NMEA 2000 model. ULP STD User manual 05/09...
-
Page 6: Configuration Options
4. Configuration Options *Non applicable to the ULP NMEA 2000 model. The ULP STD can be set up by using a special configura- tion app made by Calypso Instruments. In order to use the app, you should download the configurator from our website at www.calypsoinstruments.com. -
Page 7: Communication Protocols
5. Communication Protocols Write Register (continuation) 2 bytes, the I2C bus direction and the register you need to *Non applicable to the ULP NMEA 2000 model. check. I2C Address (1 Byte) + Register Address (1 Byte) 5.1 Modbus Registers Address -0x15 (21 decimal) -
Page 8: General Information
Any wrongful use given by the user will not incur in any 6. General information responsibility on part of Calypso Instruments. Therefore, any harm caused to the ULP by a mistake will not be cove- red by the warantee. Using assembly elements different 6.1. - Page 9 MODBUS Sensor Data Requests Measurements all have a resolution of 0.1 but are reported as 10*. 8.2 m/s is returned as a value 82. The user must /10 in order to reinsert the decimal precision. Address Register Access Response Data Description Type Range...
