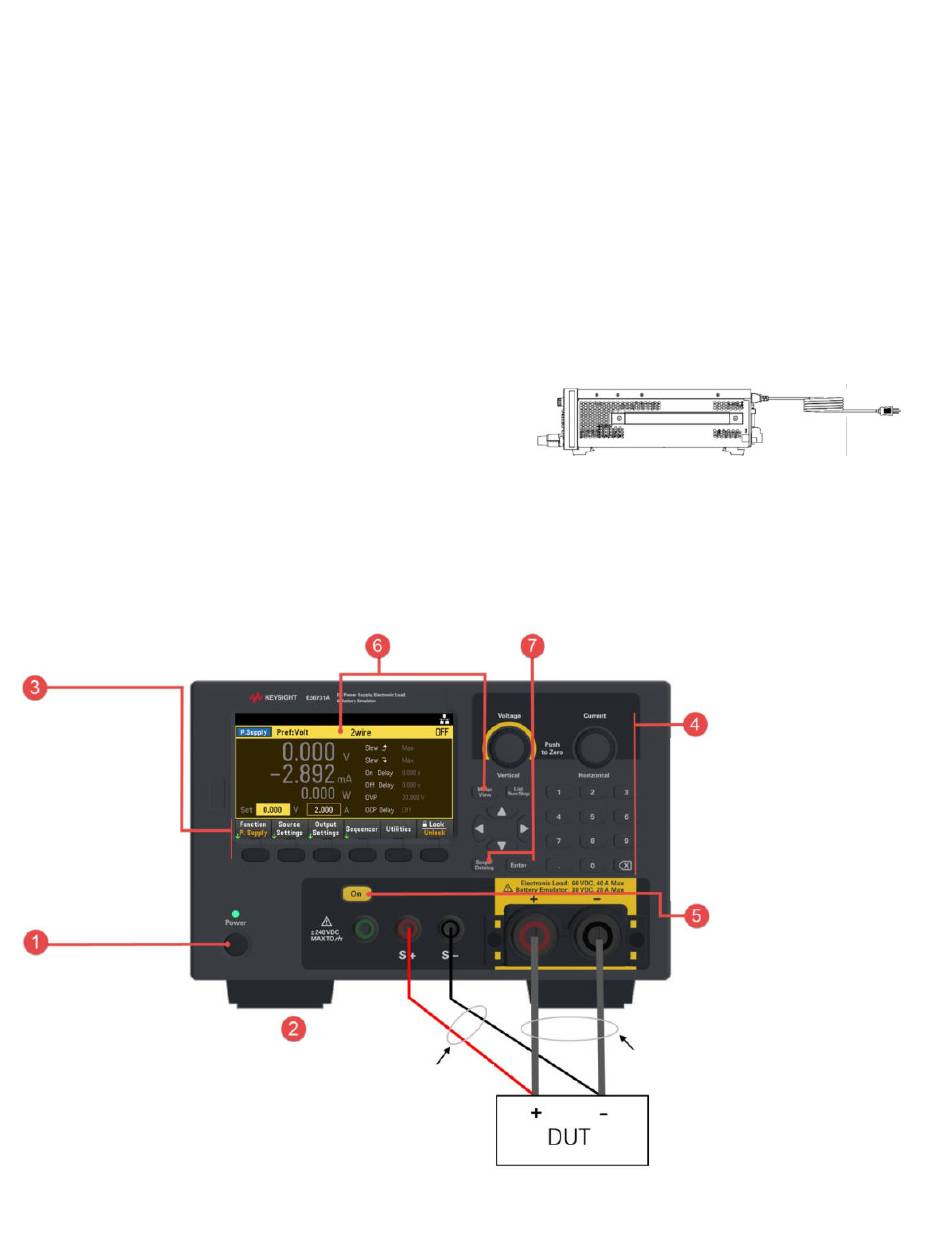

Keysight Technologies E36731A Quick Start Manual

Setup the Instrument

Place the instrument's feet on a flat, smooth horizontal surface.
Connect output to the front panel, being careful not to short the
leads together. Attach the power cable to the rear panel, then
plug it into main power. Connect GPIB, LAN or USB cables as
desired.

Using the Power Supply and Eload Function

NOTE: When E36731A is used as an electronic load, the input terminals are referred to as "outputs" throughout this document.
1. Select function:
Power supply: Press
-
Function P. Supply.
Eload: Press Function
-
Using the
Eload.
2. Configure the instrument.
For more information, refer to
the User's Guide.
Power on the instrument.
E36731A Battery Emulator
Quick Start Guide
Connect the outputs.
(4-wire)
View the output.
Load mode: Toggle between the Scope and Datalog function.
Power Supply mode: Access to Datalog function only.
TWIST LEADS
Set the output.
3 methods:
1. Turn the knobs to set the output.
2. Use the navigation keys to select the Set field;
use the numeric entry keys to enter value. The
value becomes active when you press [Enter].
3. Go to Settings (function-dependent). Use the
navigation keys to highlight the fields. Then
enter the values with the numeric keys.
Enable the outputs.
TWIST LEADS
